Signal Module (SGM-1004A) Terminal Connections

Wire devices to terminals as shown in Figure 36 below. See Appendix A for signal module specifications, and LT-
1023 for compatible devices.

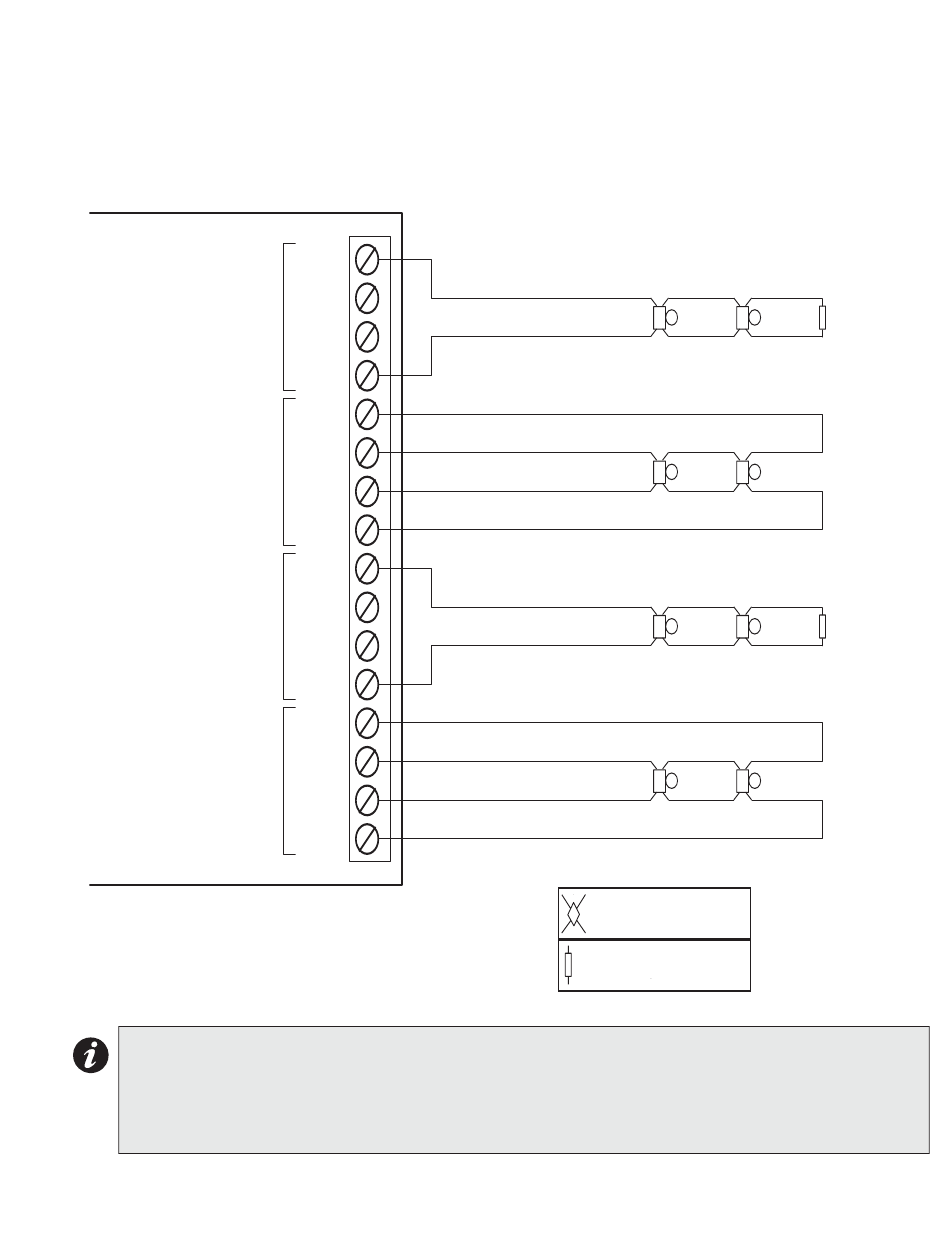

Figure 36: Hardwire Signal Module Terminal Connections
SGM-1004A NAC BOARD
NAC 1
(POWER LIMITED)
NAC 2
(POWER LIMITED)
NAC 3
(POWER LIMITED)
NAC 4
(POWER
LIMITED)
Notes:
• The terminal blocks are "depluggable" for ease of wiring.
• All power limited circuits must use type FPL, FPLR, or FPLP power limited cable.
• SGM-1004A NACs are fully supervised and rated for 24 VDC special application, 1.7A max. They must
be wired as shown in the Wiring Tables and Information on page 58.
IND 1+ (Y/Z)
IND 1+ (Z)
SUPERVISED NAC #1
IND 1- (Z)
IND 1- (Y/Z)
IND 2+ (Y/Z)
IND 2+ (Z)
SUPERVISED NAC #2
IND 2- (Z)
IND 2- (Y/Z)
IND 3+ (Y/Z)
IND 3+ (Z)
SUPERVISED NAC #3
IND 3- (Z)
IND 3- (Y/Z)
IND 4+ (Y/Z)
IND 4+ (Z)
SUPERVISED NAC #4
IND 4- (Z)
IND 4- (Y/Z)
TM
FleX-Net Installation and Operation Manual
Legend:
SMOKE DETECTOR
3.9K 1/2W ELR LISTED S5434
MODEL MP-300
MANUFACTURED BY MIRCOM
STYLE Y
(CLASS B)
WIRING
STYLE Z
(CLASS A)
WIRING
STYLE Y
(CLASS B)
WIRING
STYLE Z
(CLASS A)
WIRING
