ANC-5000 Audio Network Controller Module

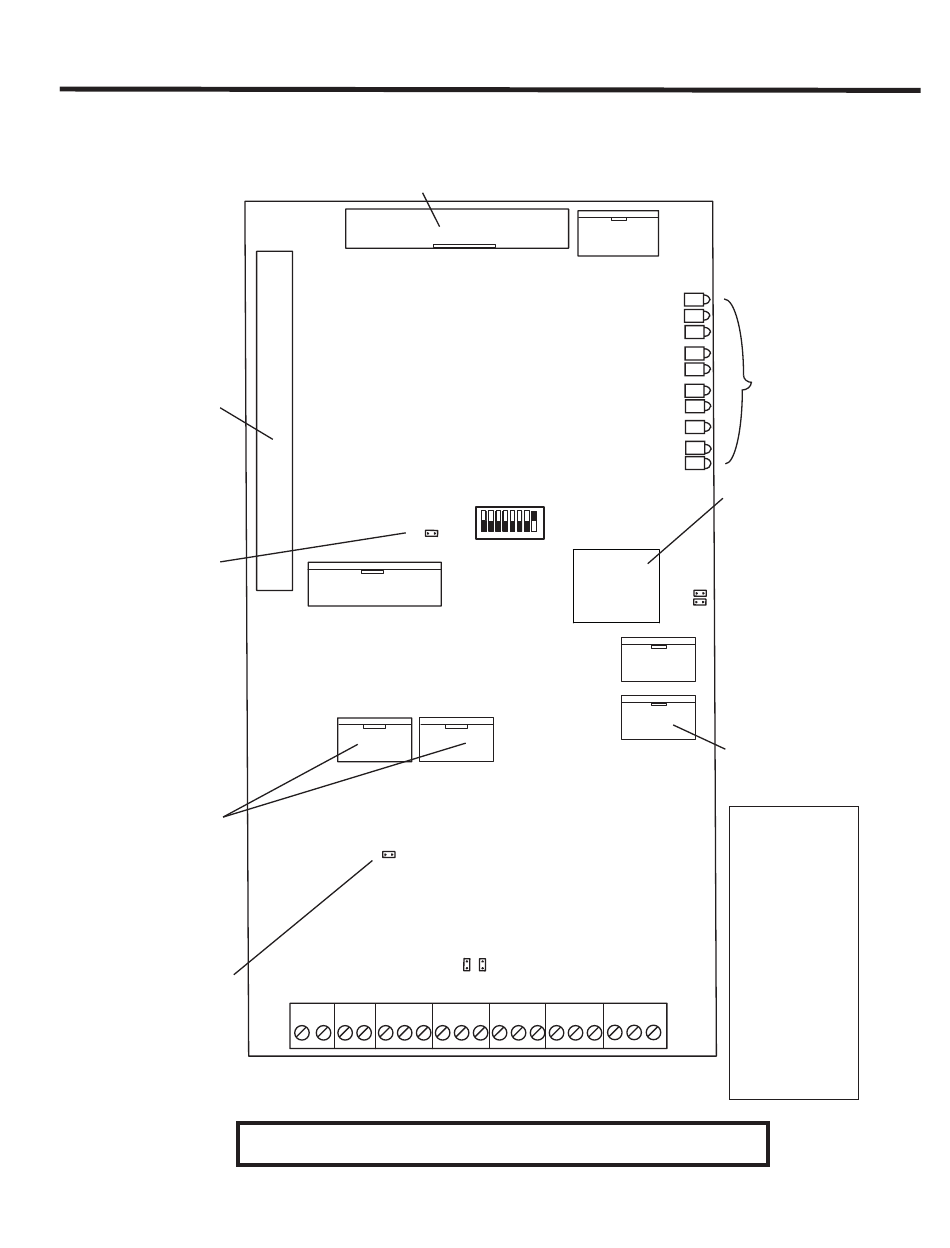

Figure 65: ANC-5000 Audio Network Controller board
Plugs into the
QMB-5000N
Backplane
Jumper JW9 is
normally open
Connect
RS-485 cable
from P3 on the
main fire alarm
board to P6 IN
on this board
(daisy chain
fashion) and
from P10 OUT
to next main
fire alarm
board or to
next ANC-5000
Jumper JW6 is
normally open
Connects to TNC-5000 Telephone
Network Controller Module
P11
DIP Switch SW1 is factory set
at address one, SW1-8 ON.
Refer to Appendix C for all
DIP switch address settings.
JW9
P3 Network RS-485
IN
P10 RS-485
P6 RS-485
JW6
Jumpers JW7 and JW8
are normally shorted
+ - + - + - S + - S + - L
Alternate
G.A.
RS-485
Power
Input
IN
IN
NOTE: All connectors not shown on this drawing are for factory use only.
P7 AMPS Interface
Heartbeat
RESET/CPU Fail
System OK
COMM RX
COMM TX
Audio/CLASS D TX
Audio/CLASS D RX
Audio RX
Status Page Bus OUT
Status Page Bus IN
SW1
ON
1 8
ETHERNET
PORT
P4 RS-232 Debug
P8 H_Speed Audio
OUT
Gain Level
JW7 JW8
PAGING BUS
+ - S + - S
IN OUT
MIC PTT
TM
FleX-Net Installation and Operation Manual
LEDs for
Information
P13 Ethernet
Port for Future Use
P13
JW5 Jumper Watch-
dog , Leave Shorted
JW5
JW4
JW4 Jumper Factory
Use Only, Leave Open
P8 Connect to
main fire alarm
board P16 if
using Digital
Audio and/or
Phone
NOTE:
DIP switch SW1 is
set using SW1-8 as
the lowest binary
digit and active
ON for ANC-5000
board with
ethernet port.
SW1-1 is the
lowest binary digit
and active ON for
ANC-5000 board
without an
ethernet port.
99
