THIS DOCUMENT, LT-1155, ONLY DESCRIBES MECHANICAL INSTALLATION.
FOR ALL OTHER INFORMATION, REFER TO LT-600 FA-1000 INSTALLATION AND OPERATION MANUAL. FOR
INFORMATION RELATED TO WIRING REFER TO LT-600 SECTION 6.0. FOR POWER SUPPLY RATINGS REFER
TO LT-600 SECTION 6.7. FOR SPECIFICATIONS REFER TO LT-600 SECTION 13.0.

Mechanical Installation for the FX-1000 Fire Alarm Backbox

The enclosure model is BB-1024XT(R) with dimensions 14.76" wide by 35.8" long by 5.45". Figure 1 below shows
backbox and door dimensions as well as the trim ring model FA-XT-TRB which is used for flush mounting of the enclosure.
The backbox and trim ring is black and the door is available in red Model BBX-1024XTR and white Model BBX-1024XT. In
all other respects, the BBX-1024XT and BBX-1024XTR are the same.

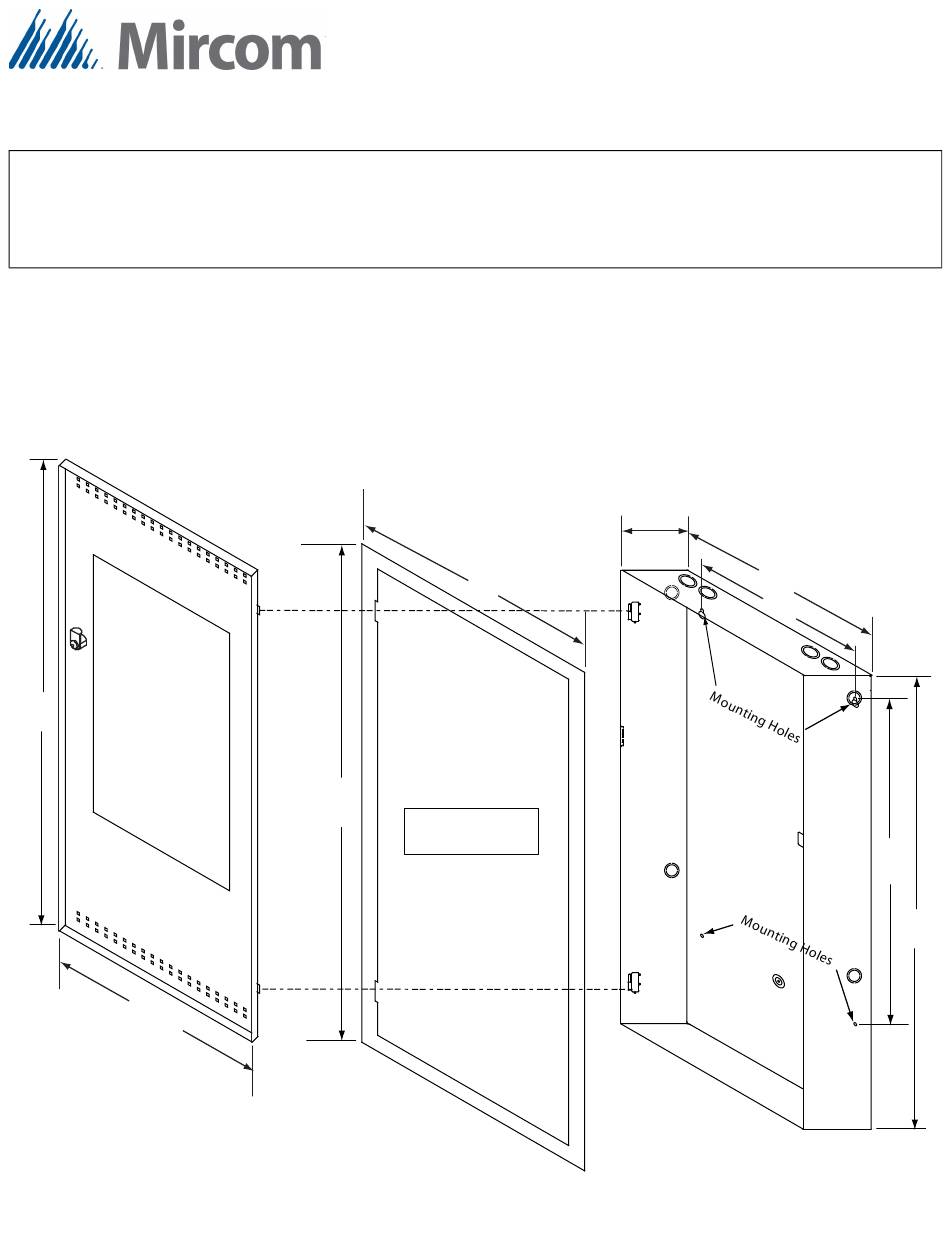

Figure 1: BBX-1024XT(R) Backbox Enclosure with Trim Ring
35.8"
14.76"
Front Door
(Inside View)
17"
38"
Adhere trim ring to
wall surface around
backbox.
FA-XT-TRB
Trim Ring for
Flush Mounting
Addendum for Fire Alarm Model
Installation Instructions
5.25"
Backbox
LT- 1155 Rev. 0
Nov. 2012 Page 1 of 4
FA-1000
14.5"
12"
25.5"
35.5"

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FA-1000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Mircom FA-1000

  • Page 1 Installation Instructions THIS DOCUMENT, LT-1155, ONLY DESCRIBES MECHANICAL INSTALLATION. FOR ALL OTHER INFORMATION, REFER TO LT-600 FA-1000 INSTALLATION AND OPERATION MANUAL. FOR INFORMATION RELATED TO WIRING REFER TO LT-600 SECTION 6.0. FOR POWER SUPPLY RATINGS REFER TO LT-600 SECTION 6.7. FOR SPECIFICATIONS REFER TO LT-600 SECTION 13.0.
  • Page 2 Figure 2: Surface and Flush Mounting Views of the BBX-1024XT 5.45” 0.7” Figure 3: Cross-Section of the BBX-1024XT Flush Mounted Box with FA-XT-TRB Trim Ring TRIM RING WALL WOOD OR METAL STUD BACKBOX LT- 1155 Rev. 0 Nov. 2012 Page 2 of 4...
  • Page 3 Mounting the Chassis into the BBX-1024XT(R) Install the chassis into the BBX-1024XT(R) enclosure as shown below in Figure 4. Use four (4) 8-32 nuts to connect the Chassis to the BBX-1024. Connect all green ground wires to the dimple in backbox and secure them using a #8 screw. Ensure that this ground connection leads to an earth ground.
  • Page 4 Mounting Adder Boards into the Chassis Up to 9 adder modules can be mounted in the same manner as explained in the respective LT-600 FA-1000 manual and as shown in Figure 5. Figure 5: FX-2003-XT in a BB-1024XT Enclosure Inside Chassis for mounting adder modules.
