Mircom MS-700ID SERIES Operating Instructions

ALPHA INTELLIGENT ADDRESSABLE MANUAL STATIONS

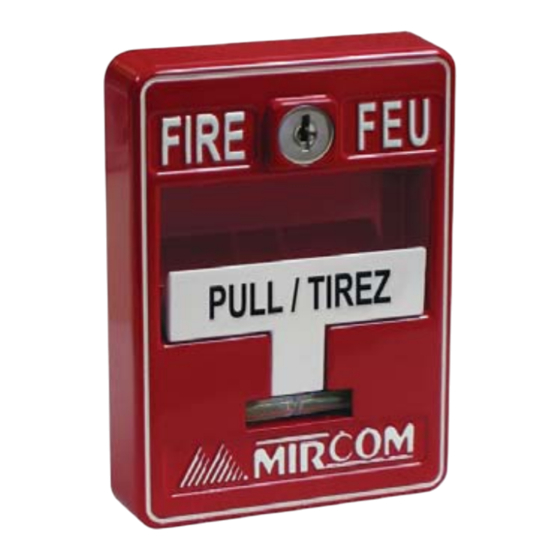

MS-710IDU
Intelligent Addressable
Dual Action Manual Station
Description
Mircom's MS-700ID Series Intelligent Fire Alarm
Manual Stations are made of a high quality, die-cast
metal and are available in either single or dual action
confi gurations with one or two permanently attached
addressable modules.
The addressable manual station has DIP switches
which allow for address setting. Pulling the handle
initiates the operation of the addressable module.
All models are available with CAT-30 keys and mount
on a standard single gang backbox, Mircom model
BB-700 interior surface metal backbox, or BB-700WP
weather proof backbox.
Operation
The MS-700ID Series is operated by pulling the
handle on the front of the station. The unit is reset by
opening the station with the key, placing the handle in
the normal upright position and relocking the station.
On the dual action models, the push bar rotates inward
allowing the Manual handle to be grasped in a one
handed motion.
Mircom reserves the right to make changes at any time without notice in prices, colours, materials, components, equipment, specifi cations and models and also to discontinue models.
MS-701UD
Intelligent Addressable
Single Action Manual Station
NOT TO BE USED FOR INSTALLATION PURPOSES.
Features
• Single or Dual Action
• Key resettable
• Permanently Attached Intelligent Addressable
Module
• High-gloss red enamel fi nish
• Plastic breakrod
• Mounts on standard single gang box, Mircom's
BB-700 surface metal backbox or BB-700WP
weather proof backbox
• Available in English and Bilingual versions
Specifi cations
The manual station shall be Mircom's MS-700ID
Series. Operating instructions shall be in raised
English or English and French lettering and the
unit shall be constructed of high quality die-cast
metal and fi nished in red enamel paint to provide
quick identifi cation. Pulling the handle shall initiate
immediate operation of the intelligent addressable
module. In addition, those stations installed in a two
stage system shall come equipped with an internal
key switch designed to operate the 2
initiating circuit.
All manual fi re alarm stations shall be installed to
comply with the Canadian Electrical Code (CSA 22.1)
and CAN/ULC-S524-01 Standard for Installation of
Fire Alarm Systems. Final acceptance is subject to
the local authority having jurisdiction.
CATALOG NUMBER
MS-700ID SERIES
nd
stage alarm
S7005 S7005
