Module Settings

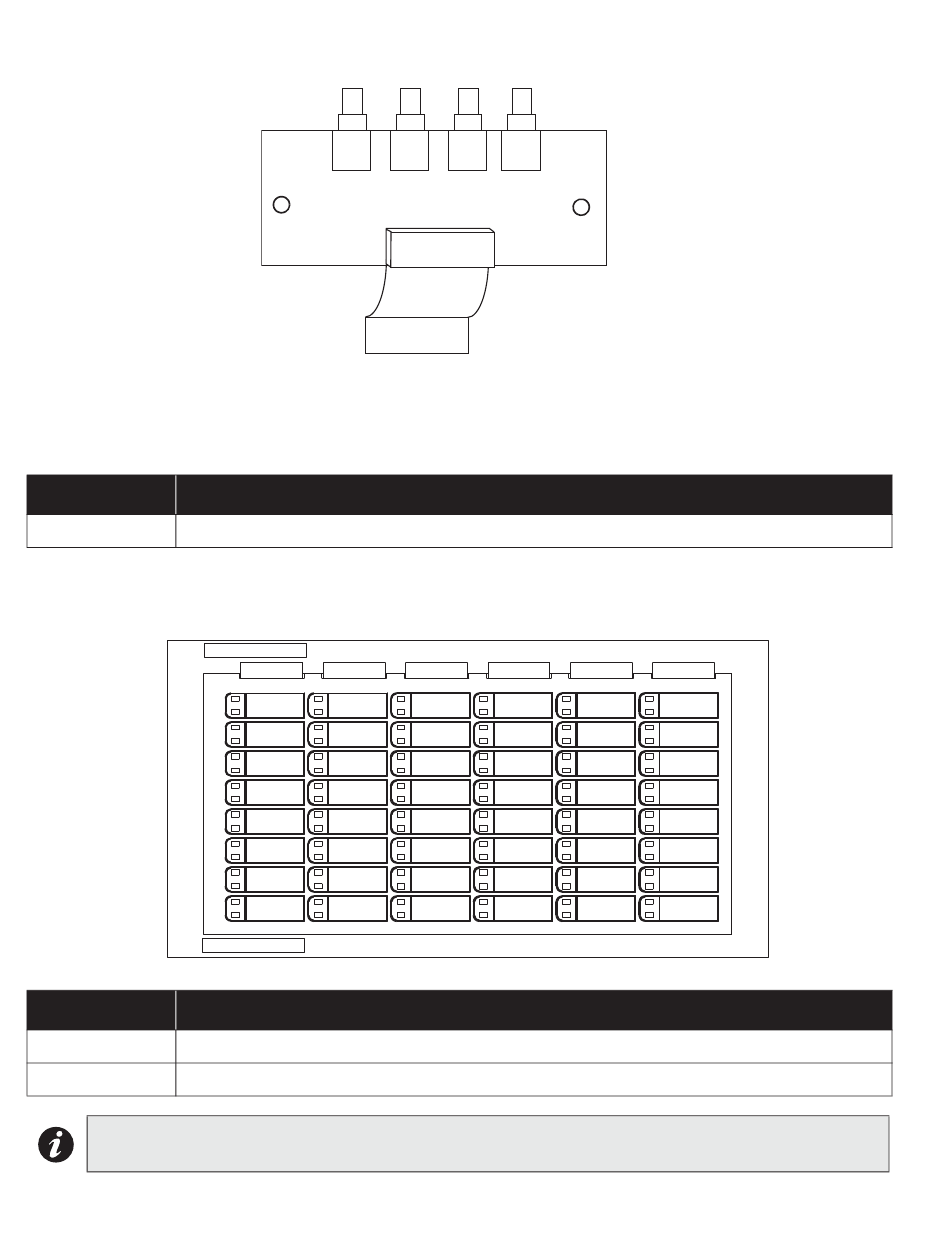

Figure 12: FOM-2000-SP Fiber Optic Network Module
One of these modules is required at each panel where fiber optics will be used between them. The FOM-2000-SP
will be mounted over the FNC-2000 Network board (over the field wiring terminals) with two #6 Phillips screws and
two Hex spacers.
Table 2: FOM-2000-SP Fiber Optic Network Module Cable Connection
Connector
P1 cable attaches to P10 of the FNC-2000 Fire Network Controller Module.
P1
RAX-1048TZDS Zone Display Module
Figure 13: Zone Display Module (RAX-1048TZDS)
P2
P1
Table 3: RAX-1048TZDS Zone Display Module Cable Function
Connector
P1 Cable connects to P2 of previous display module.
P1
P2 Cable connects to P1 of next display module
P2
Note: The zone display module comes with laser printer-compatible slide-in paper labels for zone labelling.
30
RX2
RX1
TX1
TX2
P1
Function
Function
