Typical FleX-NetTM System Layouts with Audio
Figure 44 below shows the FleX-Net
as Node 2 and 3. Paging and telephone devices are hooked up to Nodes 2 and 3.

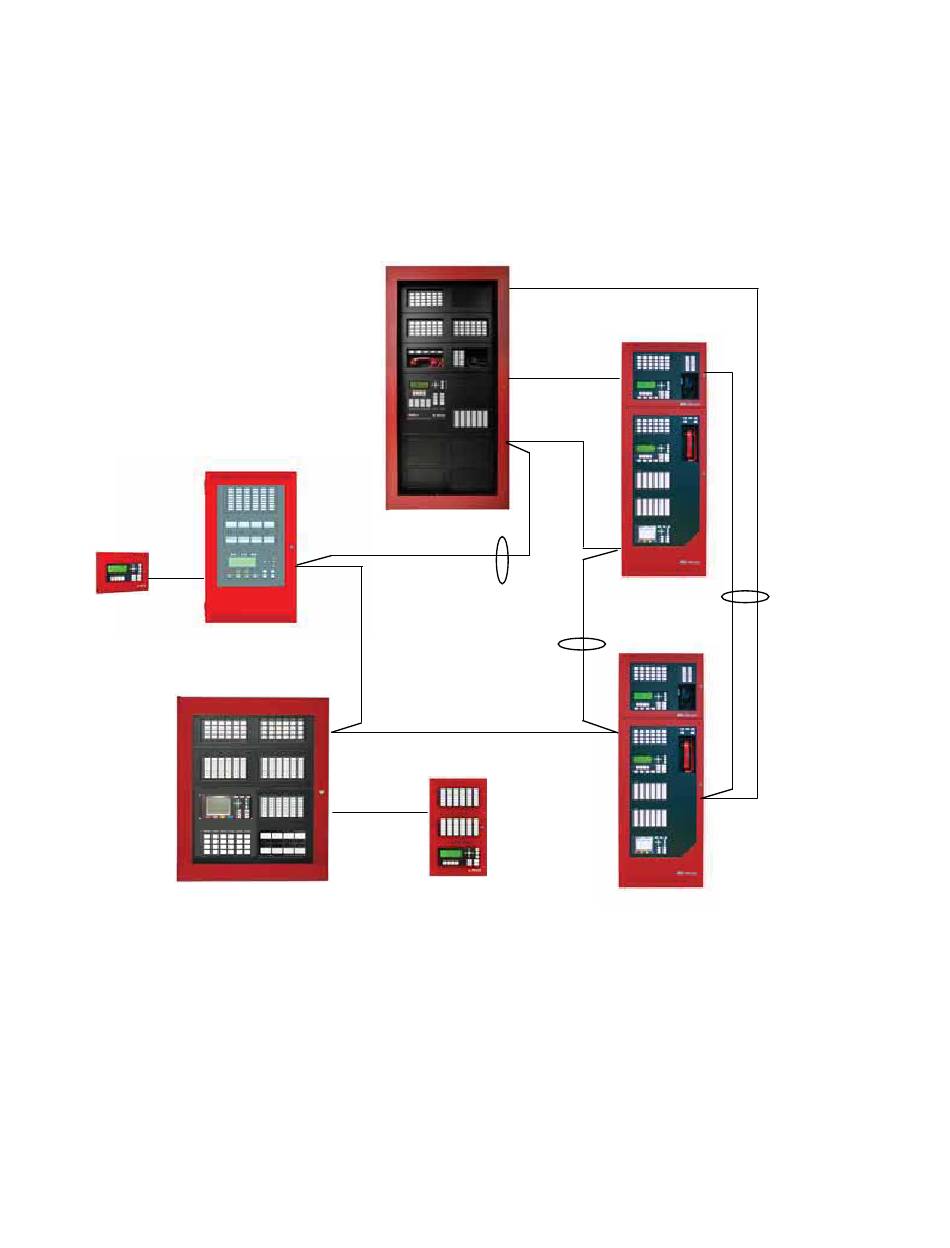

Figure 44: Typical FX-2000N Network System with Audio and Non-Audio Nodes
RAXN-LCD in a BB-1001R
RS-485
FX-2003-12NDS in a BBX-1024DSR
FX-2009-12NDS in a BB-5008
72
TM
fire alarm and audio shown within the Integrated Network Fire/Audio cabinet
Node 5
Node 4
RAXN-LCD in a BB-1003R
RS-485
NOTE: Wiring for ARCnet Network, Audio and Telephone can be as
shown (3 pairs) or 1 pair as shown in Figure 43
CACF
Node 1
Class A Wiring
1 pair for ARCnet Network
Node 2
FXMNS
Optional
1 pair for Paging Audio
Node 3
1 pair for Telephone Audio
