Mircom MPS-800MP Series Manual

Mircom's MPS-800MP(U) Series Fire Alarm Manual Stations
provide manual fire alarm activation.
This guide covers these models:
MPS-810MP Single Stage, Dual Action, MP Addressable Manual
Station
MPS-810MPU Single Stage, Dual Action, MP Addressable
Manual Station (US)
MPS-802MP Two Stage, Dual Action, MP Addressable Manual
Station
MPS-822MP Two Stage, Dual Action, MP Addressable Manual
Station with additional door contacts
Specifications & Dimensions
Compatible with FX-400 series and FleX-Net™ FX-4000 Fire
Alarm Control Panels
Electrical Rating:
Nominal Operating Voltage: 15-30 VDC
Maximum alarm current: 3.3 mA
Standby current: 2 mA
Electrical Rating for MPS-822MP maglock terminal:
1A at 30VDC
Dimensions:
139 mm H x 104 mm W x 34 mm D
(5 1/2" H x 4 1/8" W x 1 3/8" D)
Notes
• Environment: Indoor, dry
• Do not change factory applied finishes.
• Wire as shown so that supervision of connections is
maintained.
• Maximum wire size: 14 AWG
• ADA compliant.
• To be installed per ADA 4.27.1 to 4.27.4 inclusive.
• Wiring must be in accordance with CSA C22.1, Canadian
Electrical Code, Part I, Safety Standard for Electrical
Installations, Section 32 and CAN/ULC-S524, Standard for
Installation of Fire Alarm Systems.
• All manual fire alarm stations shall be installed as per the
specific requirements outlined in the UL/ULC codes, as well
as all other applicable national or local codes. Final
acceptance is subject to the local authority having
jurisdiction.
1
MPS-800MP(U) Series
Fire Alarm Manual Station
Install the manual station
Contents of kit
MPS-810MP(U): 2 mounting screws, 2 reset keys (black)
MPS-802MP and MPS-822MP: 2 mounting screws, 2 reset keys
(black), 2 stage two keys
A. Open
1. Insert the reset key into the reset keyhole and turn it.
2. Pull the cover open.
RESET KEYHOLE
STAGE TWO
KEYHOLE (MPS-802MP
AND MPS-822MP)
PUSH BAR
LED FLASHES RED
WHEN POLLING AND IS
STEADY RED IN ALARM
PULL HANDLE

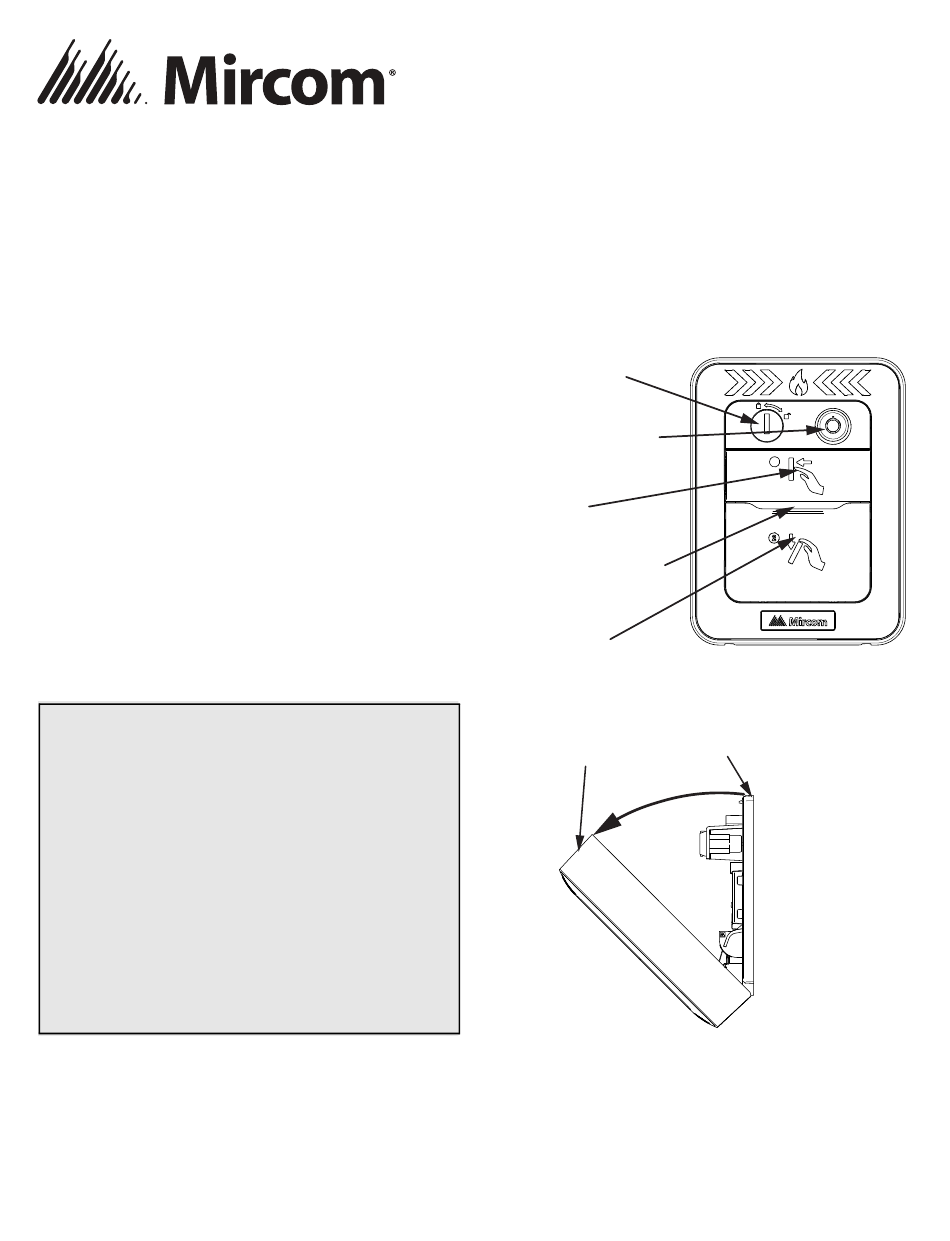

Figure 1 Front of manual station
COVER
Figure 2 Opening the station
Canada
25 Interchange Way
Vaughan, ON L4K 5W3
Tel: 1-888-647-2665
www.mircomgroup.com LT-6168 Rev. 0 Oct 2021
MOUNTING
PLATE
U.S.A
4575 Witmer Industrial Estates
Niagara Falls, NY 14305
Tel: 1-888-647-2665
