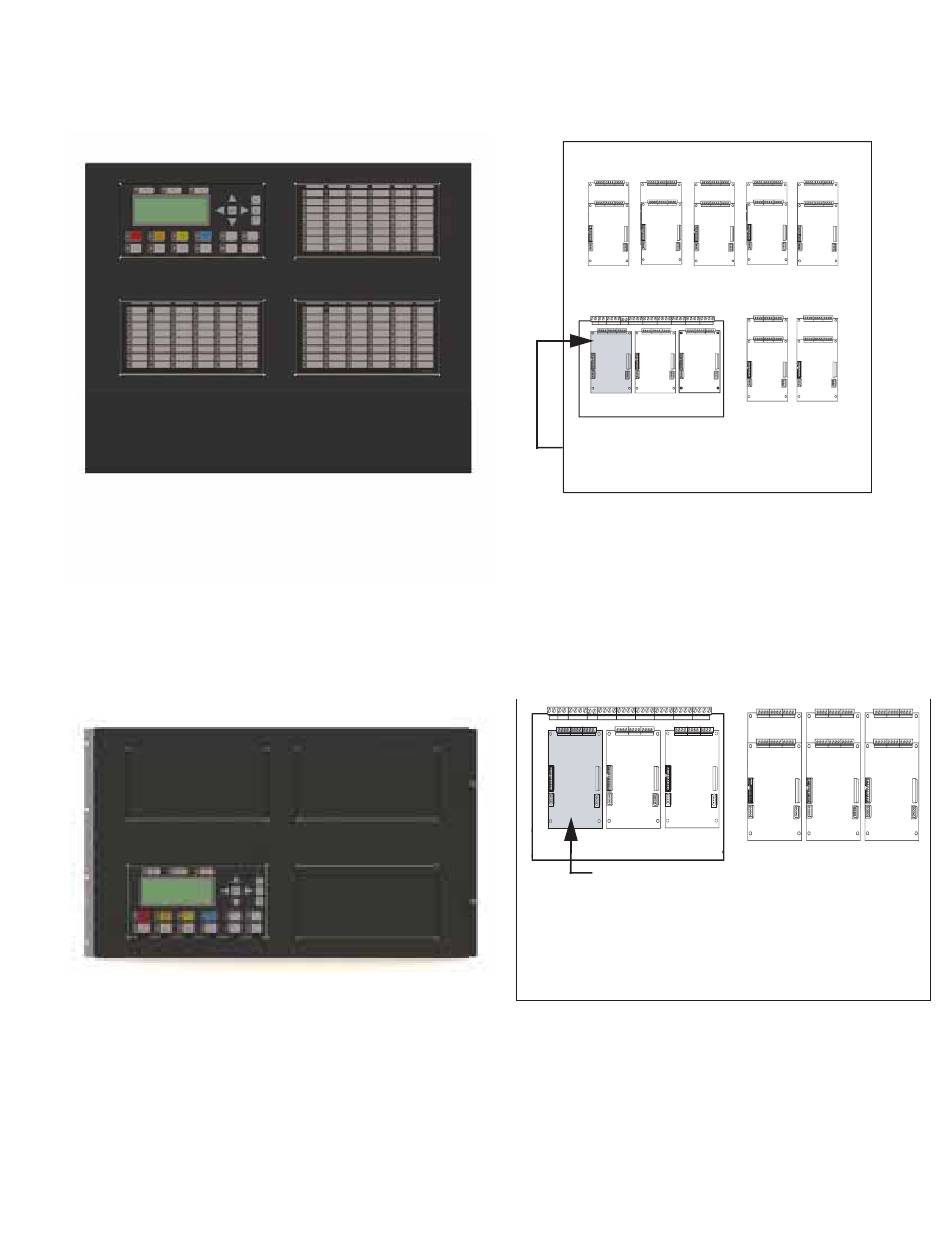

FX-2017-12NDS Mid-size Main Chassis
Mounts in the BBX-1072ADS/ARDS Enclosure, and supports three display modules and 17 adder modules.
Interior View
FX-2009-12NDS Large Main Chassis
Mounts and occupies four display positions in BB-5008 or BB-5014 Enclosures, and supports two display modules and
nine adder modules. This large chassis size can hold the integrated audio and/or telephone modules.
Interior View
TM
FleX-Net Installation and Operation Manual
Inside Backbox View
12 11 10
17 16 15
3 2 1
FX-2000N Main Board
FX-2000 Main Board
Slot 3 is reserved for PR-300 or UDACT-
300A. If not required, this slot can be used
to mount any of the adder modules.
The recommended mounting position is 2 for
the FNC-2000. The FOM-2000-SP board, if
used, is mounted over the FNC-2000 board.
Inside Backbox View
3 2 1
FX-2000 Main Board
FX-2000N Main Board
Slot 3 is reserved for PR-300 or UDACT-300A. If
not required, this slot can be used to mount any of
the adder modules. The recommended mounting
position is 2 for the FNC-2000. The FOM-2000-SP
board, if used, is mounted over the FNC-2000
board. Positions 4 to 9 are replaced with the audio
and telephone boards if used.
9 8
14 13
5 4
7 6
6 5 4
9 8 7
23
