QPS-5000N Power Supply Connection

Two jumpers are provide as shown in figure below for 120 VAC connection. For 240 VAC application, remove both
jumpers and replace one jumper between the two middle terminals. The two terminals on the right are N (neutral), L
(live) for AC voltage connection. The three terminals on the left are connected from the QMB-5000N motherboard
as orange-white-orange (left to right) in that order.

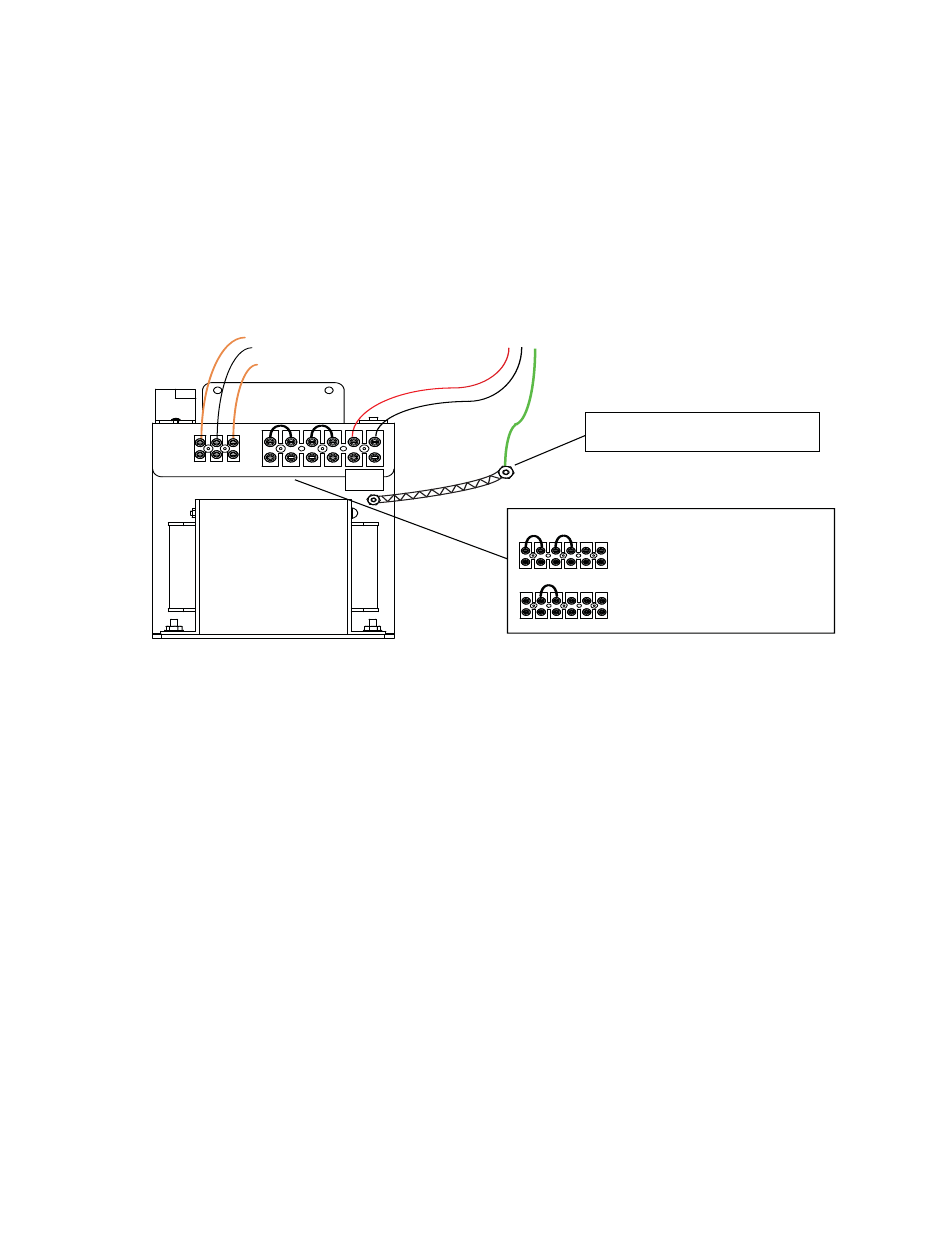

Figure 52: QPS-5000N Power Supply Wiring Diagram
QPS-5000N
Orange- White-Orange
Wires connected to
QMB-5000B Motherboard
Live (Black)
Neutral (White)
Ground Braid
L N
FleX-Net
120 VAC or
240 VAC
Ground
Connect AC ground to Earth Ground
stud located in the QBB-5001 Backbox.
Earth Ground stud in QBB-5001 Backbox
120/240 VAC SELECTION
120 VAC Select
Default Jumper Positions
L N
OR
240 VAC Select
Discard unused Jumper
L N
