Field Wiring

Relay Module (RM-1008(A)) Terminal Connections

Relays are available as shown below.

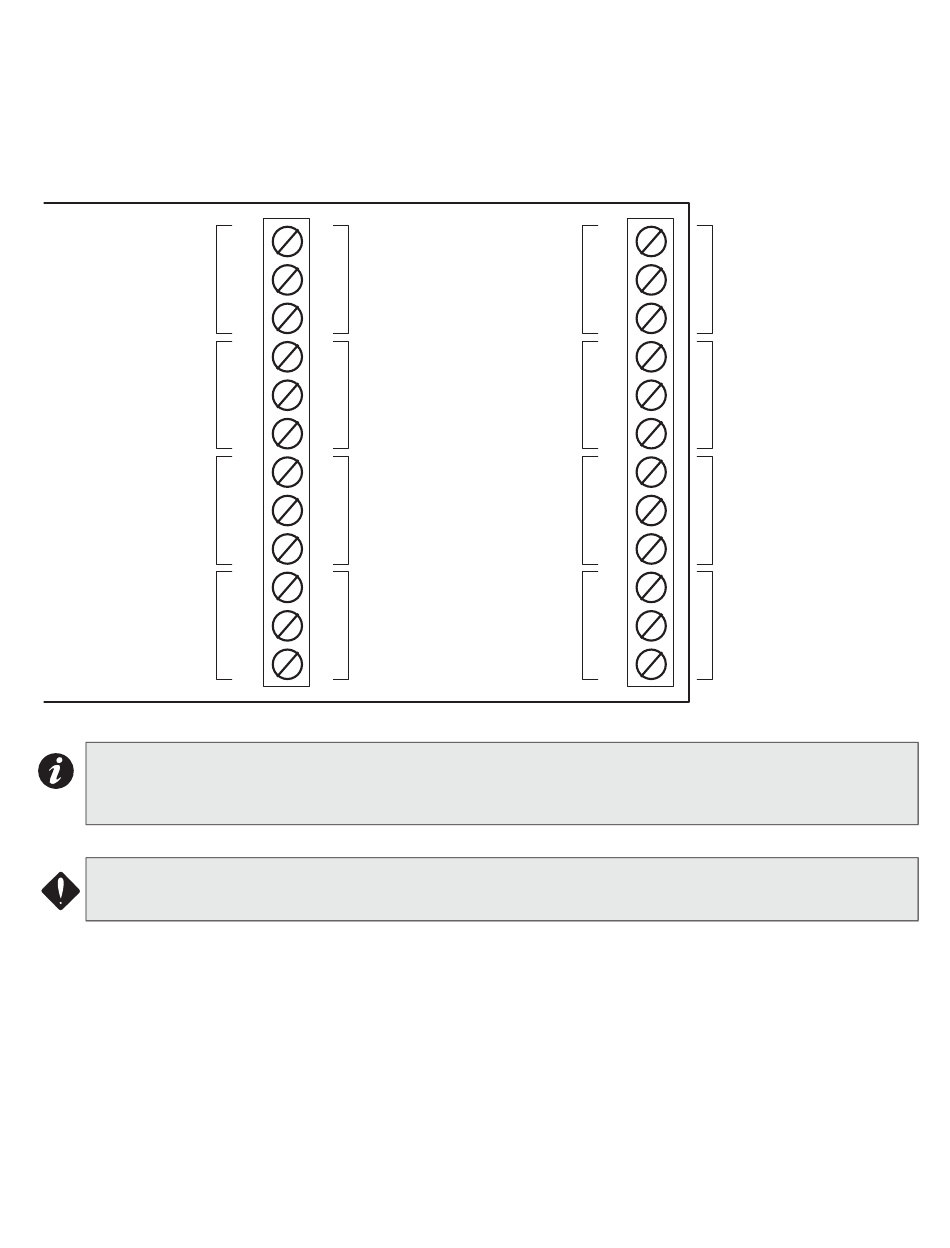

Figure 37: Hardwire Relay Module Terminal Connections
RLY 5
RLY 6
RLY 7
RLY 8
Notes:
• All relay circuits are power limited and must use type FPL, FPLR, or FPLP power limited cable.
• All relay circuits must be connected to a listed power limited source of supply.
ATTENTION:
• Do not connect 120 VAC directly to these relays.
54
RM-1008A Relay Module
AUX RELAY 5
COM
CONTACTS
NC
28 VDC, 1 AMP
RESISTIVE LOAD
NO
AUX RELAY 6
COM
CONTACTS
NC
28 VDC, 1 AMP
RESISTIVE LOAD
NO
AUX RELAY 7
COM
CONTACTS
NC
28 VDC, 1 AMP
RESISTIVE LOAD
NO
AUX RELAY 8
COM
CONTACTS
NC 28 VDC, 1 AMP
RESISTIVE LOAD
NO
COM
RLY 1
NC
NO
COM
RLY 2
NC
NO
COM
RLY 3
NC
NO
COM
RLY 4
NC
NO
AUX RELAY 1
CONTACTS
28 VDC, 1 AMP
RESISTIVE LOAD
AUX RELAY 2
CONTACTS
28 VDC, 1 AMP
RESISTIVE LOAD
AUX RELAY 3
CONTACTS
28 VDC, 1 AMP
RESISTIVE LOAD
AUX RELAY 4
CONTACTS
28 VDC, 1 AMP
RESISTIVE LOAD
