Paging Operation

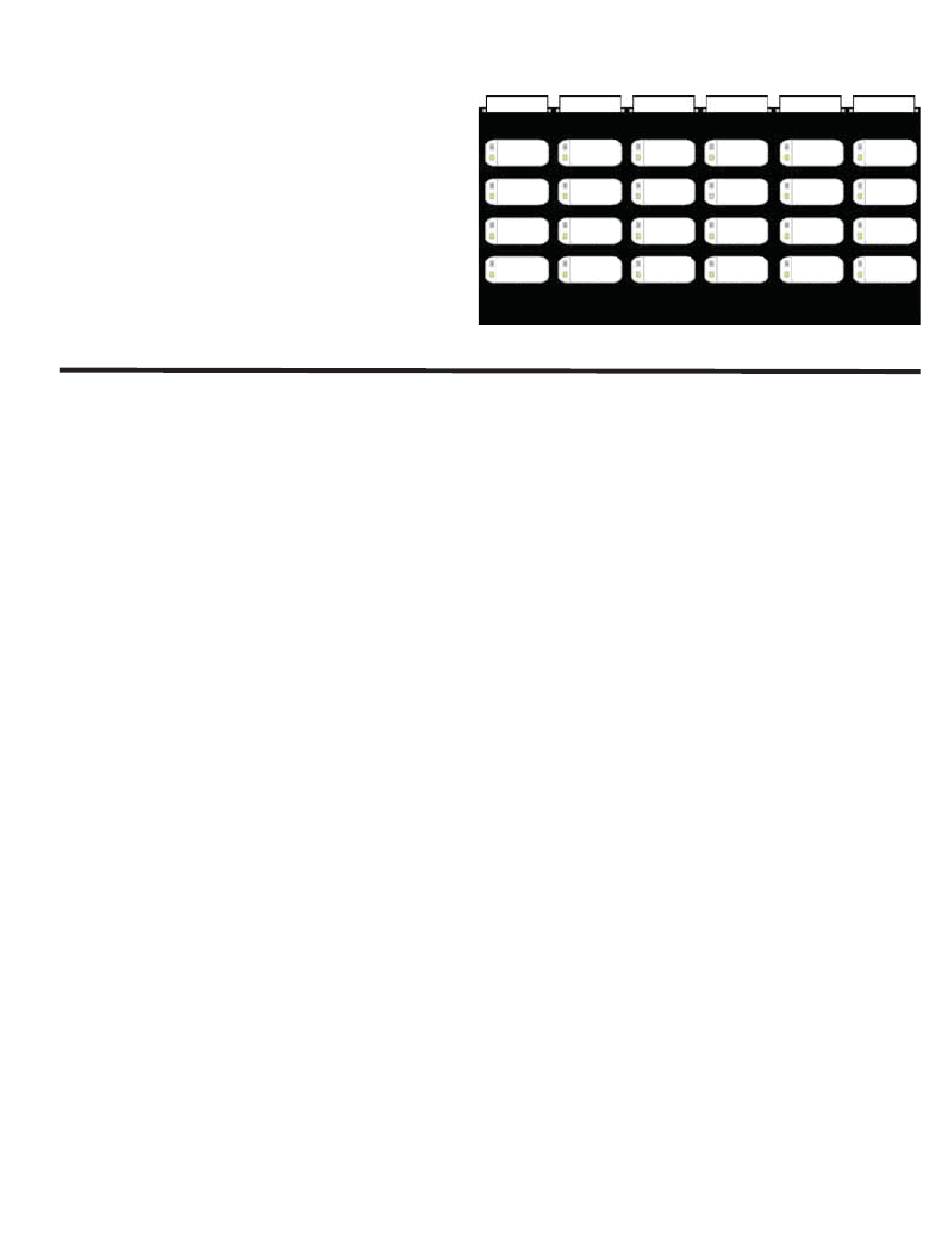

QAZT-5302DS Zoned Paging Selector Panel

Each QAZT-5302DS annunciates and controls up to
24 audio zones. There is one button and two LEDs
per zone. The lower amber LED indicates Zone
trouble. The upper green LED indicates whether that
zone is selected for voice paging via the master
microphone.
Paging zone selection buttons toggle ON and OFF
voice paging for that zone.
Paging Operation
This section describes the controls and indicators on the QMP-5101N and QMP-5101NV Master Paging Control
Modules and the QAZT-5302DS Paging Selector Modules.

QMP-5101N/QMP-5101NV LEDs

Warden Page
Illuminates steady green to indicate that the Warden Page function is active.
All Call
Illuminates steady green to indicate that the All-Call function is active.
Mic Active LED
Flashes green to indicate any activity on the paging bus (i.e. other microphone in use). Illuminates steady green
when associated microphone (at proximity of LED) is in use.
Pre-Tone Active LED
Steady green when paging and warden paging is active.
Amplifier Trouble LED
Indicates any amplifier internal trouble.
Mic Trouble LED
Flashes amber to indicate a microphone trouble.
Page to Evac LED
Illuminates steady green when the Page to Evac pushbutton is active.
Page to Alert LED
Illuminates steady green when the Page to Alert pushbutton is active.
AC ON LED
This green LED illuminates steadily to Indicate that AC power is present.
Page Ready LED
Illuminates steady green when the push-to-talk (PTT) on the microphone is depressed (active).
Lamp Test LED
This amber LED illuminates steadily to indicate that the Lamp Test has been activated.
106
Paging
Paging
Paging
#1 #5
#9
Paging
Paging Paging
#10
#6
#2
Paging
Paging
Paging
#11
#7
#3
Paging Paging
Paging
#8 #12
#4
Paging
Paging Paging
#13 #17 #21
Paging Paging
Paging
#14 #18
#22
Paging Paging
Paging
#15 #23
#19
Paging
Paging Paging
#16 #20 #24
