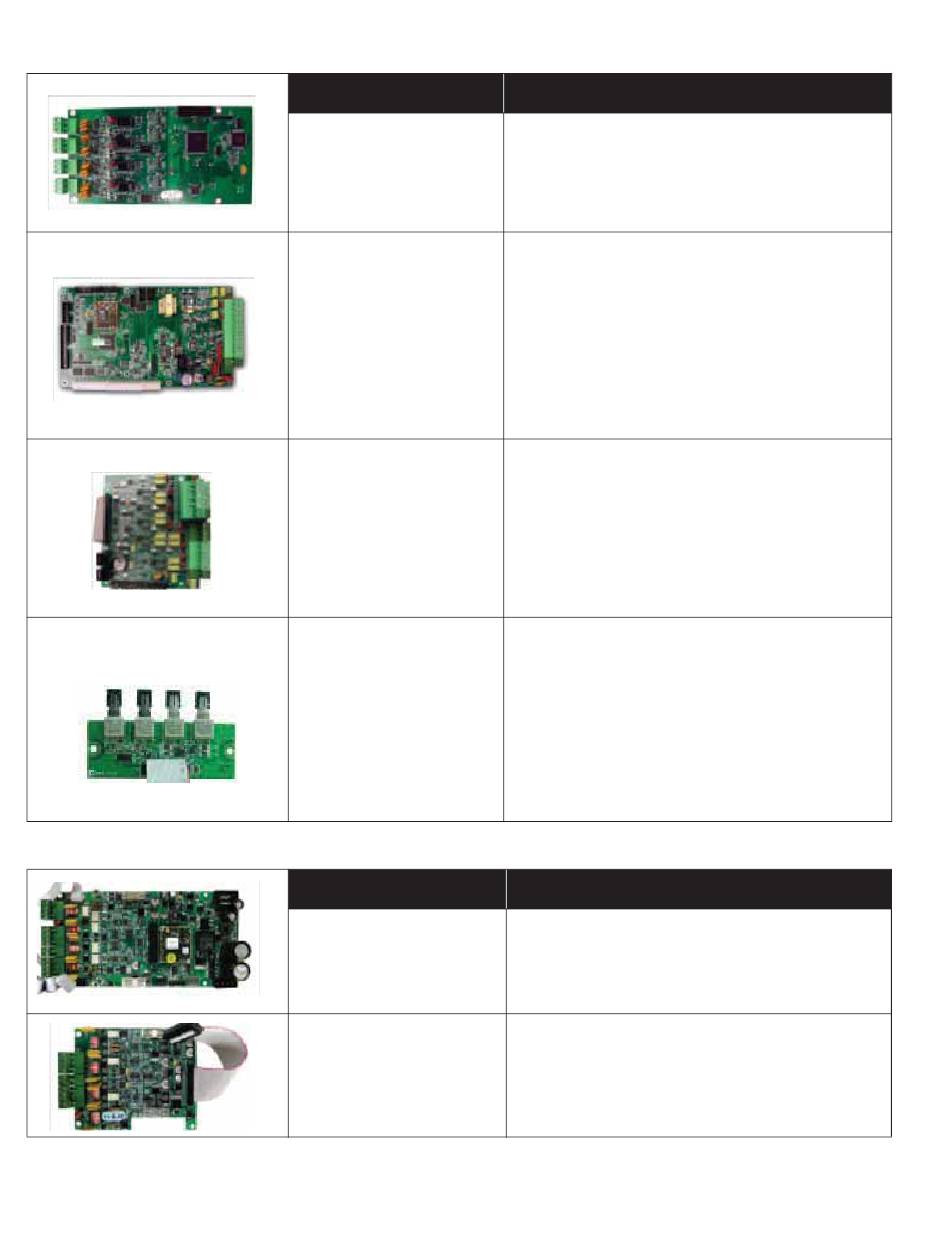

System Components
Network Controller Modules
Adder Modules
8
Model
FNC-2000
ANC-5000
TNC-5000
FOM-2000-SP
Model
ALCN-792M
ALCN-792D
Description
Provides network capability for the FX-2000N Fire
Alarm panel. One module is required per one
network node panel. The FNC-2000 Fire Network
Controller module is mounted in position 2 over
the FX-2000N main board.
Audio Network Controller module. The ANC-5000
Audio Network Controller module is mounted over
a metal plate (which is packaged with the FX-
2009-12N) and then the plate is mounted in a BB-
5008 or BB-5014 backbox in positions marked 4 to
9 inclusive. The recommended plate mounting is
sideways with LEDs across the top.
Telephone Network Controller module. The TNC-
5000 Telephone Network Controller module is
mounted over the ANC-5000 Audio Network
Controller module and both are mounted on a
metal plate and then the plate is mounted in a BB-
5008 or BB-5014 backbox in positions marked 4 to
9 inclusive. The recommended plate mounting is
sideways with LEDs across the top.
Fiber Optics Module (Optional)
Connects to the FNC-2000 Fire Alarm Network
Controller Module and allows fiber optics cabling.
Description
Quad Loop Adder board.
Daughter board for ALCN-792M Quad Loop
Adder
