Field Wiring
UDACT-300A Main Board Terminal Connections
Wire the two telephone lines to RJ31X Connector terminals as shown in Figure 39 below. The UDACT-300A
terminals are located on the top left hand corner of the board. If using a cellular or wireless service, use the Line 2
interface connection only.
Note: Most Authorities Having Jurisdiction (AHJ) do not allow the connection of premise
telephones, see specifications for more information.

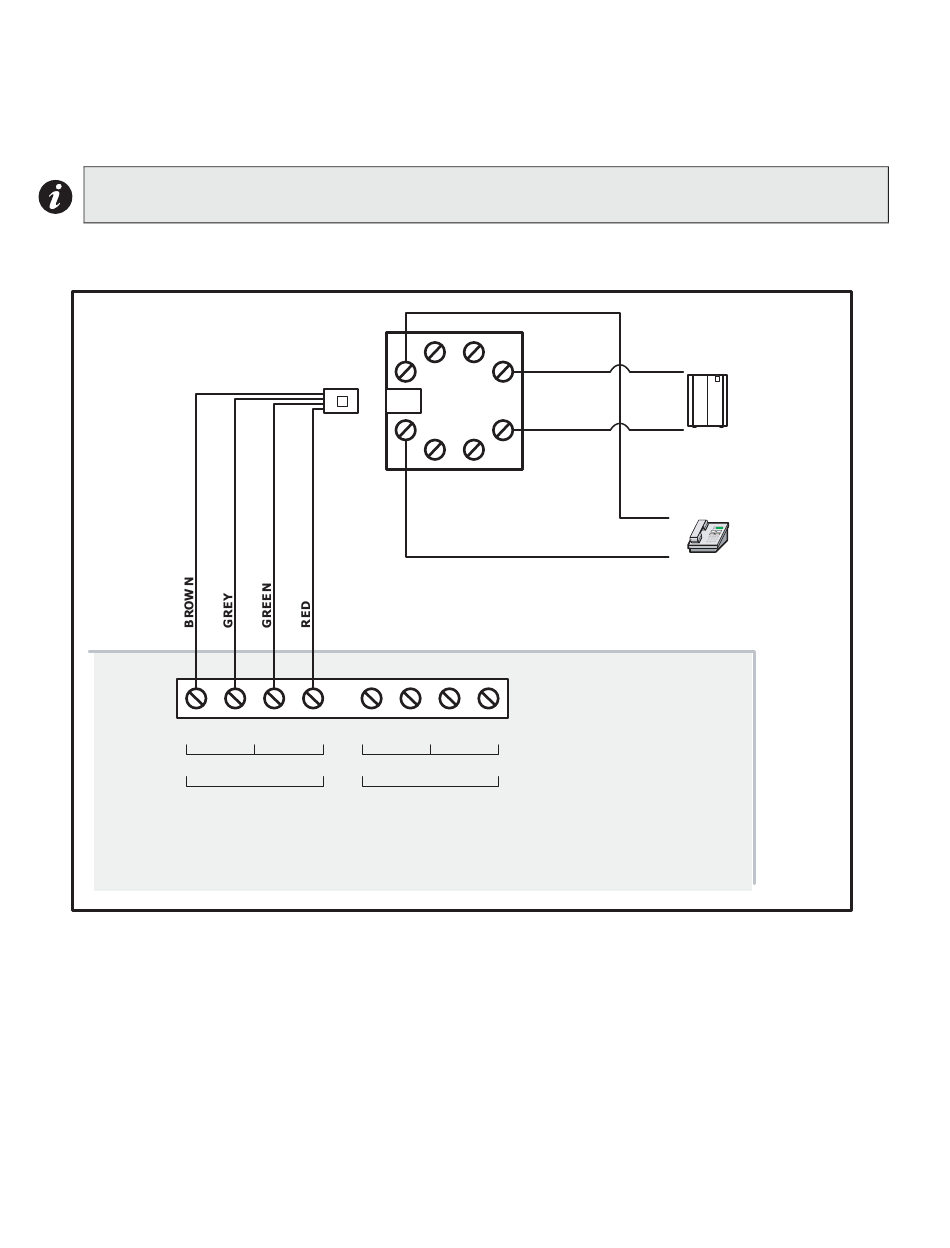

Figure 39: Telephone Line Wiring Diagram
T
56
Line 2 is Wired as shown for Line 1
R
T
R
T
RES
C.O.
RES
LINE-1
UDACT-300A
1
4
2
3
7
6
8
5
RJ31X
R
T
R
C.O.
LINE-2
TIP
RING
Public switch
Telephone company
wiring
TIP
RING
premise telephone
IF permitted
