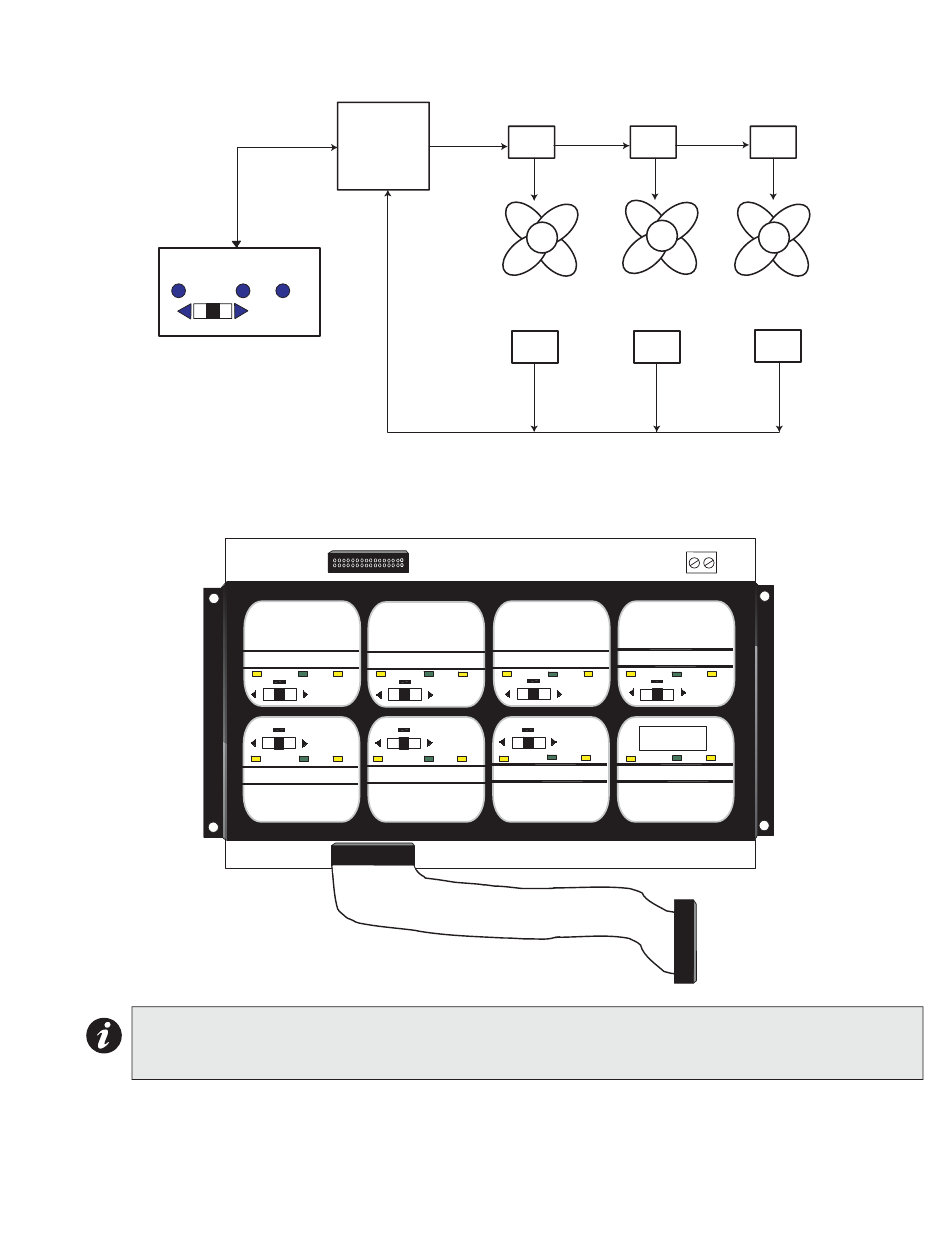

Figure 16: FDX-008 Block Diagram of Fan and Monitor Set-up
OFF AUTO ON TROUBLE
FDX-008/KI FAN/DAMPER CONTROL MODULE
Before mounting the FDX-008KI module, if a keyswitch is to be connected, wire the keyswitch to terminals at TS1
as shown in Figure 17 below. Mount the FDX-008 and FDX-008KI Fan Damper Control Display modules in any
position on the front part of the FX-2000N chassis and backbox.
Figure 17: FDX-008KI Fan Damper Control Display Module
Note: There are also terminals located behind TS1 on the other side of the board for the convenience of
wiring the keyswitch. The last fan damper zone in the bottom right position of the FDX-008KI is
controlled by the keyswitch.
UUKL with FDX-008 and FDX-008KI
The models FDX-008 and FDX-00KI can be effectively use to provide an automatic and manual control system for
smoke. Refer to document number LT-966 for extensive instructions regarding UUKL applications.
FX-2000N FIRE
ALARM PANEL
P2
OFF AUTO ON TROUBLE OFF AUTO ON TROUBLE
OFF AUTO ON
OFF AUTO ON
OFF AUTO ON TROUBLE
P1
OUTPUT MODULES
FANS
MONITOR MODULES
OFF AUTO ON TROUBLE
TROUBLE
OFF AUTO ON TROUBLE
TROUBLE
TM
FleX-Net Installation and Operation Manual
TS1
OFF AUTO ON TROUBLE
KEYSWITCH
CONTROLLED
OFF AUTO ON TROUBLE
CONNECTS TO
PREVIOUS DISPLAY
MODULE P2
