DA16200 DA16600 FreeRTOS Getting Started Guide
No Name

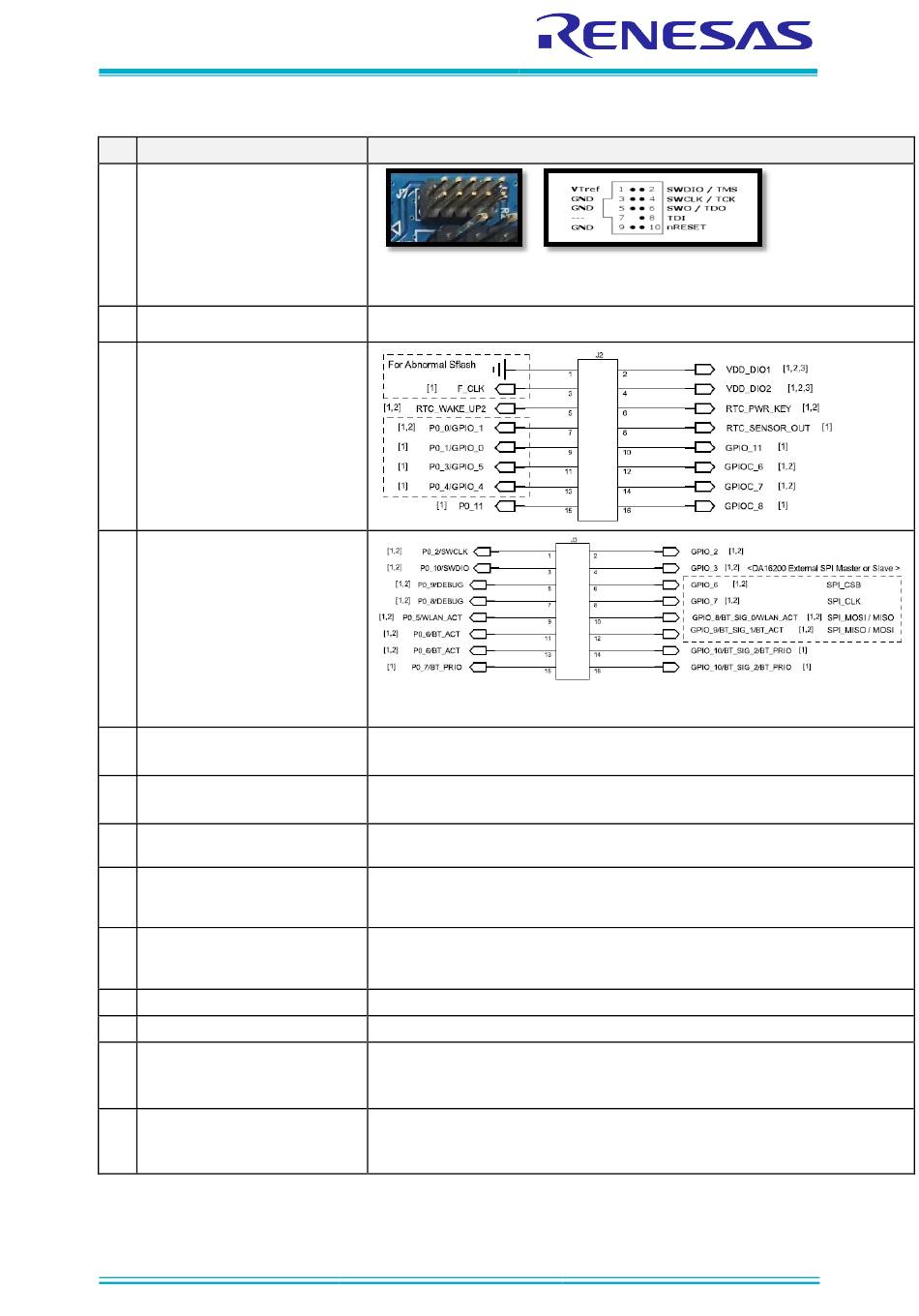

14 DA16600MOD-AACWA32
J2 – External pin-out
15
J3 – External pin-out
16
P10 – Jumper to test GPIO
17
P11 – Jumper to test GPIO
18
SW9 – Switch to test current
19
consumption
P2 – Jumper to measure
20
current consumption of
DA16200
P1 – Jumper to measure
21
current consumption of
DA14531
SW8 – GPIO selective Switch
22
S3 – DA14351 Reset Button
23
S1 – WPS Button
24
S2 – Factory Reset Button
25
User Manual
CFR0012
Note: Pin 7 on the I-Jet debugger cable is keyed with a white plug so pin 7 must
be removed from the EVB.
Renesas Wi-Fi and Bluetooth
P0_6 (Pin #11) should be connected to GPIOA9 (Pin #12) or GPIOA10 (Pin #14)
externally for BLE-Wi-Fi COEX.
GPIO test pin.
Add jumpers from J2/J3 to P10 to control the two LEDs using GPIOs.
GPIO test pin.
Add jumpers from J2/J3 to P11 to control the two LEDs using GPIOs.
Switch to test current consumption using a pro board kit, default OFF.
Jumper to measure current used by the Wi-Fi device.
For normal operation, this jumper must be shorted.
Jumper to measure current used by the Bluetooth
For normal operation, this jumper must be shorted.
GPIO selection switch, default ON, see
Reset button of DA14531 in test mode.
WPS button using GPIOA6.
To enable this button, set Pin 1 of SW7 to ON and press the button to start WPS
mode.
Factory reset button using GPIOA7.
To enable this button, set Pin 2 of SW7 to ON and press the button for more than
5 seconds to initialize nvram data.
Revision 1.8
13 of 106
Description
®
LE Module.
®
LE device.
Table 4.
