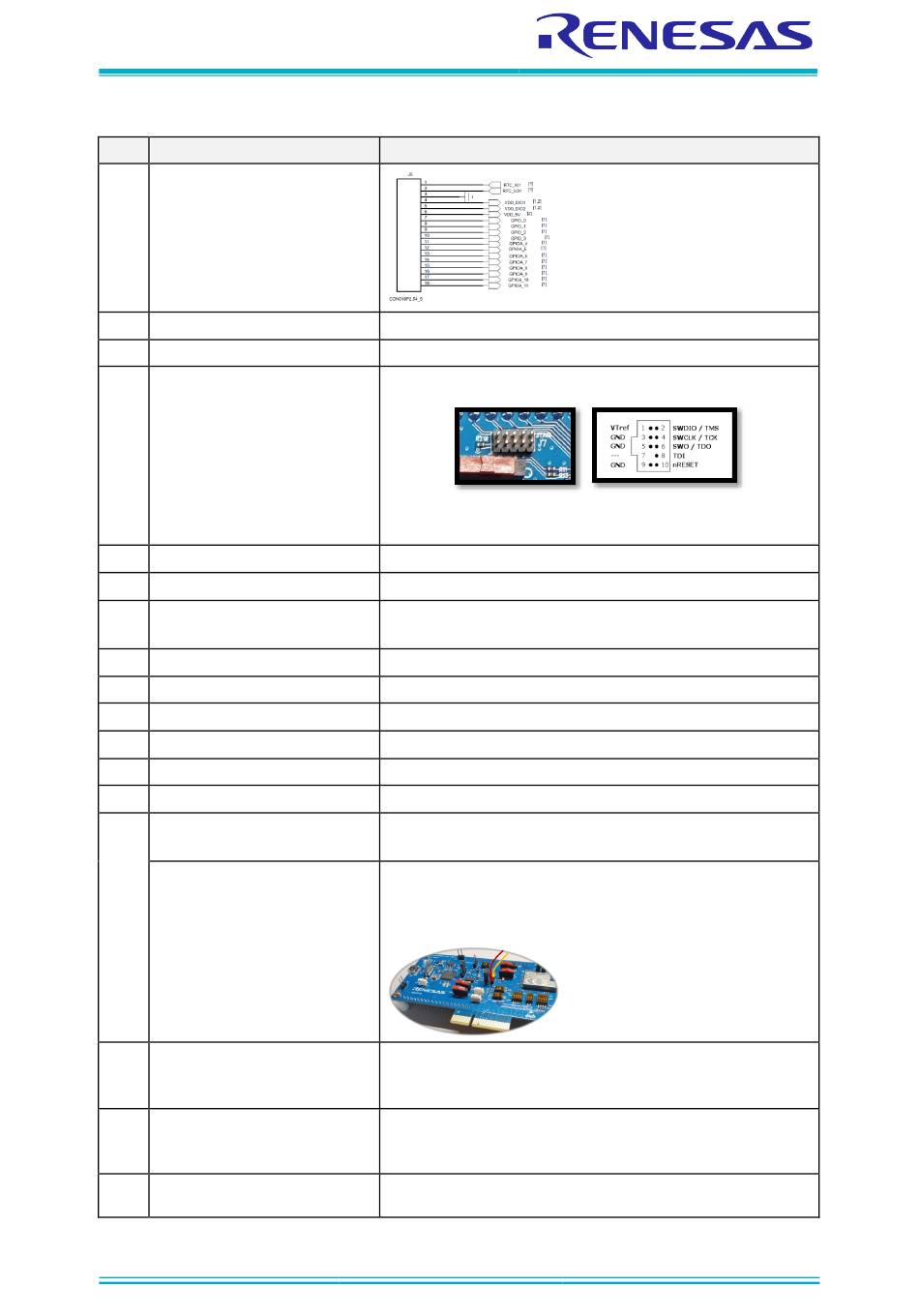

DA16200 DA16600 FreeRTOS Getting Started Guide
No Name
J5 – GPIO External pin-out
6
P3 – GND Pins
7
CN6 – USB Port
8
J7 – JTAG connector
9
SW5 – RTC_WAKE_UP switch
10
SW6 – RTC_PWR_KEY switch
11
P6 – Jumpers for
12
RTC_WAKE_UP1
13 DA16200MOD-AACWA32
SW3 – GPIO selection switch
14
SW2 – GPIO selection switch
15
SW1 – GPIO selection switch
16
SW10 – GPIO selection switch
17
SW4 – GPIO selection switch
18
P1 – External VDD
19
P2 – Jumper to measure
current consumption of the
DA16200
S2 – Factory reset button
20
S1 – WPS button
21
SW8, SW9 – UART1/2
22
selection switch
User Manual
CFR0012
Description
GND for Test
Provide UART0 for debug, UART1/2 for test and SPI.
Connector for the IAR I-jet JTAG Debugger
Note: Pin 7 of the I-Jet debugger cable is keyed with a white plug
so pin 7 must be removed from the EVB.
Switch to wake up the board from sleep mode.
Switch to turn the EVB ON and OFF.
Pin for connecting the external control signal with MCU.
For normal operation, this jumper should be shorted.
Renesas Wi-Fi Module.
GPIO selection switch, default OFF, see
GPIO selection switch, default ON, see
GPIO selection switch, default OFF, see
GPIO selection switch, default ON, see
GPIO selection switch, default ON, see
External VDD (3.3 V) can be supplied to the P1 pins.
For normal operation, this jumper should be shorted.
Pin for current measurement.
For normal operation, this pin should be shorted.
- Pull out the Short Pin cap and use jumper wires to
connect to the measuring equipment.
Factory reset button using GPIOA_7.
To enable this button, set Pin 2 of SW4 to ON and press the
button for more than 5 seconds to initialize nvram data.
WPS button using GPIOA_6.
To enable this button, set Pin 1 of SW4 to ON and press the
button to start WPS mode.
UART1/2 selection switch, default LEFT (UART1), see
Revision 1.8
10 of 106
Table 2.
Table 2.
Table 2.
Table 2.
Table 2.
Table 2.
