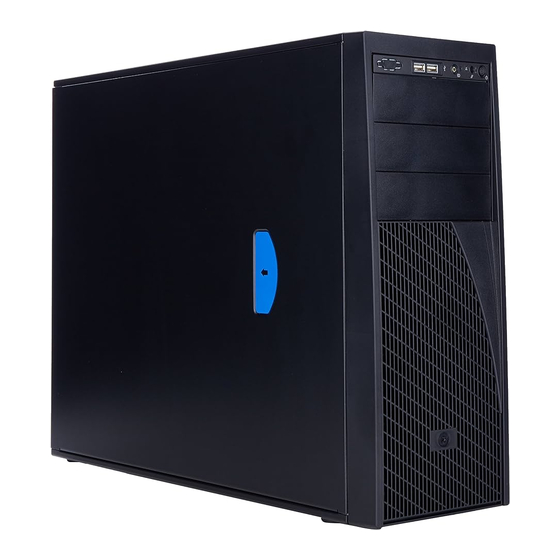

Intel P4000S Series Service Manual

Server chassis
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
®
Intel
Server Chassis P4000S Family
Service Guide
®
A Guide for Technically Qualified Assemblers of Intel
identified
Subassemblies/Products
Order Number: G20364-004

Advertisement

Table of Contents
loading

Related Manuals for Intel P4000S Series

Summary of Contents for Intel P4000S Series

  • Page 1 ® Intel Server Chassis P4000S Family Service Guide ® A Guide for Technically Qualified Assemblers of Intel identified Subassemblies/Products Order Number: G20364-004...
  • Page 2 Intel’s own chassis are designed and tested to meet the intended thermal requirements of these components when the fully integrated system is used together. It is the responsibility of the system integrator that chooses not to use Intel developed server building blocks to consult vendor datasheets and operating parameters to determine the amount of airflow required for their specific application and environmental conditions.

  • Page 3: Safety Information

    Wichtige Sicherheitshinweise Lesen Sie zunächst sämtliche Warnund Sicherheitshinweise in diesem Dokument, bevor Sie eine ® der Anweisungen ausführen. Beachten Sie hierzu auch die Sicherheitshinweise zu Intel ® Serverplatinen und Servergehäusen auf der Intel Server Deployment Toolkit 3.0 CD oder unter http://www.intel.com/support/motherboards/server/sb/cs-010770.htm.
  • Page 4 Take care to grip with, but not squeeze, the pliers or other tool you use to remove a jumper, or you may bend or break the pins on the board. ® Intel Server Chassis P4000S Service Guide...

  • Page 5: Preface

    ® and instructions on how to add and replace components on the Intel Server Chassis P4000S family. For the latest version of this manual, refer to http://www.intel.com/p/en_US/support.
  • Page 6 Power Budget Analysis Tool the allowed power budget. See the section on the web page titled, “Installation and Use”. ® For software to manage your Intel Intel Server Management Software server. See the section on the web page titled, “Installation and Use”.

  • Page 7: Table Of Contents

    Removing the Airduct ....................33 Removing and Installing the Fixed Power Supply ..............34 Removing the Fixed Power Supply ................34 Installing the Fixed Power Supply ................34 Installing an Additional Hot-swap Power Supply Module ............. 35 ® Intel Server Chassis P4000S Service Guide...
  • Page 8 Connecting and Disconnecting Cables to or from Server Workstation Board ...... 62 Connecting Cables to Server/Workstation Board ............62 Removing Cables from Server/Workstation Board ............62 ® Intel Remote Management Module 4 ................. 63 Mechanical Locks ........................ 63 3 Technical Reference ..................65 Power Supply Specification ....................
  • Page 9 ® Appendix E: Intel Server Issue Report Form..........73 Appendix F: Warranty ..................78 ® Limited Warranty for Intel Chassis Subassembly Products ..........78 Extent of Limited Warranty ....................78 Warranty Limitations and Exclusions ................... 79 Limitations of Liability....................79 How to Obtain Warranty Service ..................79 Telephone Support .....................
  • Page 10 Figure 1. Chassis Front View for Fixed Hard Drive Configuration ..........1 Figure 2. Chassis Front View for Hot-swap Hard Drive Configuration ......... 1 ® Figure 3. Internal Chassis View of Intel Server Chassis P4304XXSFCN ........3 ® Figure 4. Internal Chassis View of Intel Server Chassis P4304XXSHCN ........
  • Page 11 Figure 88. Removing and Installing the Cap on Front Panel Board ........... 60 Figure 89. Installing the New Front Panel Board ............... 60 Figure 90. Installing the Alternate Serial Port Knockout ............. 62 Figure 91. RMM4 knockout ....................... 63 Figure 92. Mechanical Locks ..................... 64 ® Intel Server Chassis P4000S Service Guide...
  • Page 12 List of Tables List of Tables ® Table 1. Breakdown of Intel Server Chassis P4000S family ............2 ® Table 2. Intel Server Chassis P4000S Family Base Features ............ 2 Table 3. Front Panel LED Functionality ..................9 Table 4. Power Supply Output Voltages ..................65 Table 5.

  • Page 13: Server Chassis Features

    Server Chassis Features 1 Server Chassis Features ® This chapter briefly describes the main features of the Intel Server Chassis P4000S family. This chapter provides a list of the server chassis features, and diagrams showing the location of important components and connections on the server chassis.

  • Page 14: Chassis Features

    Server Chassis Features ® Table 1. Breakdown of Intel Server Chassis P4000S family ® ® Intel Server Chassis Configuration Intel Server Board ® ® Intel Server Chassis P4304XXSFCN Intel Server Board S1200BTL, S1200BTS ® ® Intel Server Chassis P4304XXSHCN Intel Server Board S1200BTL ®...

  • Page 15: Component Identification

    H. Padlock Loop Alternate RMM4 Knockout Front Control Panel Alternate 5.25” Peripheral Bays 92x38mm System Rear Fan M. Fixed Hard Drive Bays ® Figure 3. Internal Chassis View of Intel Server Chassis P4304XXSFCN ® Intel Server Chassis P4000S Service Guide...

  • Page 16: Figure 4. Internal Chassis View Of Intel Server Chassis P4304Xxshcn

    G. A Kensington* Cable Lock Mounting Hole H. Padlock Loop Alternate RMM4 Knockout Front Control Panel 5.25” Peripheral Bays 92x38mm System Rear Fan M. 4x3.5” Hot-swap HDD Cage ® Figure 4. Internal Chassis View of Intel Server Chassis P4304XXSHCN ® Intel Server Chassis P4000S Service Guide...

  • Page 17: Figure 5. Internal Chassis View Of Intel Server Chassis P4304Xxsfen

    Alternate RMM4 Knockout Front Control Panel Alternate 5.25” Peripheral Bays CPU Zone System Fan M. Fixed Hard Drive Bays N. PCI Zone System Fan ® Figure 5. Internal Chassis View of Intel Server Chassis P4304XXSFEN ® Intel Server Chassis P4000S Service Guide...

  • Page 18: Figure 6. Internal Chassis View Of Intel Server Chassis P4304Xxshen

    Alternate 5.25” Peripheral Bays CPU Zone System Fan M. 4x3.5” Hot-swap HDD Cage N. PCI Zone System Fan O. Hot-swap HDD EMI Shield ® Figure 6. Internal Chassis View of Intel Server Chassis P4304XXSHEN ® Intel Server Chassis P4000S Service Guide...

  • Page 19: Figure 7. Internal Chassis View Of Intel Server Chassis P4304Xxsfdr

    Alternate RMM4 Knockout Front Control Panel Alternate 5.25” Peripheral Bays CPU Zone System Fan M. Fixed Hard Drive Bays N. PCI Zone System Fan ® Figure 7. Internal Chassis View of Intel Server Chassis P4304XXSFDR ® Intel Server Chassis P4000S Service Guide...

  • Page 20: Figure 8. Internal Chassis View Of Intel Server Chassis P4304Xxshdr

    Alternate 5.25” Peripheral Bays CPU Zone System Fan M. 4x3.5” Hot-swap HDD Cage N. PCI Zone System Fan O. Hot-swap HDD EMI Shield ® Figure 8. Internal Chassis View of Intel Server Chassis P4304XXSHDR ® Intel Server Chassis P4000S Service Guide...

  • Page 21: Front Panel

    No access and no fault. LAN 1-4 Green LAN link/no access. Activity/Link Green Blink LAN access. (LAN 1-2 for ® Intel Server Idle Board S1200BT) Blue Front panel chassis ID button pressed. Chassis ® Intel Server Chassis P4000S Service Guide...

  • Page 22: Back Panel

    Serial-B Port (Optional) IO Connectors Kensington* Cable Lock Mounting Hole RMM4 NIC Port (Optional) Padlock Loop Add in PCI-e cards RMM4 NIC Port (Optional) Power Connector Figure 10. Back Panel Layout (with Fixed Power Supply) ® Intel Server Chassis P4000S Service Guide...

  • Page 23: 4X3.5'' Hard Drive Backplane

    Kensington* Cable Lock Mounting Hole Hot-swap Power Supply Padlock Loop IO Connectors RMM4 NIC Port (Optional) RMM4 NIC Port/(Optional) Figure 11. Back Panel Layout (with Hot-swap Power Supply) 4x3.5'' Hard Drive Backplane A. I2C_In Connectors ® Intel Server Chassis P4000S Service Guide...

  • Page 24: Figure 12. 4X3.5'' Hsbp Board (Rear View)

    C. Power Connectors D. SATA 6X Mode E. I2C_Out Connectors F. SGPIO connector Figure 12. 4x3.5'' HSBP Board (Rear View) G. SATA/SAS Hot-swap Drive Connectors Figure 13. 4x3.5'' HSBP Board Layout (Front View) ® Intel Server Chassis P4000S Service Guide...

  • Page 25: Hardware Installations And Upgrades

    Anti-static wrist strap and conductive foam pad (recommended) System Reference All references to left, right, front, top, and bottom assume the reader is facing the front of the chassis as it would be positioned for normal operation. ® Intel Server Chassis P4000S Service Guide...

  • Page 26: Removing And Installing The Chassis Cover

    Removing and Installing the Chassis Cover Removing the Chassis Cover ® The Intel Server Chassis P4000S family must be operated with the top cover in place to ensure proper cooling. You will need to remove the top cover to add or replace components inside of the platform.

  • Page 27: Installing The Chassis Cover

    Observe the safety and ESD precautions at the beginning of this book. Power down the server and unplug all peripheral devices and the AC power cable. Remove the chassis cover. For instructions, see “Removing the Chassis Cover”. ® Intel Server Chassis P4000S Service Guide...

  • Page 28: Installing The Front Bezel

    Engage the plastic bezel hooks (see letter A) into the raised metal slots at the chassis edge. Rotate the bezel assembly toward the chassis. Latch the two plastic tabs (see letter B) on the left side of the bezel assembly to the chassis. Figure 17. Installing the Front Bezel ® Intel Server Chassis P4000S Service Guide...

  • Page 29: Removing And Installing A Dvd Or Cd-Rom Drive

    Observe the safety and ESD precautions at the beginning of this book. Power down the server and unplug all peripheral devices and the AC power cable. Remove the chassis cover. For instructions, see “Removing the Chassis Cover”. ® Intel Server Chassis P4000S Service Guide...

  • Page 30: Removing And Installing The Fixed Hdd Emi Shield

    For a chassis on its side, position the chassis hanging over the edge of a table or workbench before removing the bezel. ® This procedure applies only to the Intel Server chassis P4000S family with fixed HDD configuration. Removing the Fixed HDD EMI Shield Observe the safety and ESD precautions at the beginning of this book.

  • Page 31: Installing The Emi Shield

    While pressing the clip (see letter B), slide the EMI Shield downwards until the latches on the EMI Shield are engaged with the chassis (see letter C). Figure 23. Installing the EMI Shield ® Intel Server Chassis P4000S Service Guide...

  • Page 32: Removing And Installing Fixed Hard Drive(S)

    Hardware Installations and Upgrades Removing and Installing Fixed Hard Drive(s) NOTE ® This procedure applies only to the Intel Server Chassis P4000S family with fixed HDD configuration. Removing Fixed Hard Drive(s) Observe the safety and ESD precautions at the beginning of this book.

  • Page 33: Installing Fixed Hard Drive(S)

    Observe the safety and ESD precautions at the beginning of this book. Power down the server and unplug all peripheral devices and the AC power cable. Remove the chassis cover. For instructions, see “Removing the Chassis Cover”. ® Intel Server Chassis P4000S Service Guide...

  • Page 34: Figure 28. Removing Fixed Hard Drive

    Pull out the HDD carrier tray. Figure 28. Removing Fixed Hard Drive Secure the 3.5'' or 2.5'' HDD on the HDD carrier tray with screws. Figure 29. Securing the 3.5'' HDD on Fixed HDD Carrier Tray ® Intel Server Chassis P4000S Service Guide...

  • Page 35: Figure 30. Securing The 2.5'' Hdd On Fixed Hdd Carrier Tray

    12. Install the air duct if the air duct is removed. For instructions, see “Installing the Airduct” 13. Install the chassis cover. For instructions, see “Installing the Chassis Cover”. 14. Plug all peripheral devices and the AC power cable into the server. 15. Power up the server. ® Intel Server Chassis P4000S Service Guide...

  • Page 36: Removing And Installing 4X3.5'' Hot-Swap Hard Drive Cage Assembly

    Removing and Installing 4x3.5'' Hot-swap Hard Drive Cage Assembly NOTE ® This procedure applies only to the Intel Server Chassis P4000S family with 4x3.5'' hot-swap hard disk drive cage configuration. Removing 4x3.5'' Hot-swap Hard Drive Cage with Backplane Observe the safety and ESD precautions at the beginning of this book.

  • Page 37: Installing 4X3.5'' Hot-Swap Hard Drive Cage With Backplane

    Fit the edges of the EMI Shiled against the sides of the chassis (see letter A). While pressing the EMI shiled, slide the EMI Shield downwards until the latches on the EMI shield are engaged with the chassis (see letter B). ® Intel Server Chassis P4000S Service Guide...

  • Page 38: Figure 34. Installing The Emi Shield

    RAID controller card. 1) Connect data cables (letter A). 2) Connect an I2C_IN cable (letter B). 3) Connect an SGPIO cable (letter C). 4) Connect power cable (letter D). ® Intel Server Chassis P4000S Service Guide...

  • Page 39: Removing And Installing 4X3.5'' Hot-Swap Backplane

    Hot-swap Hard drives cage. For instructions, see “Removing 4x3.5 Remove the 4x3.5 Hot-swap Hard Drive Cage”. Remove the screw on the backplane (see letter A). Push the backplane (see letter B) and remove the backplane from the chassis (see letter C). ® Intel Server Chassis P4000S Service Guide...

  • Page 40: Installing 4X3.5'' Hot-Swap Backplane

    Attach the backplane to the back side of the hot-swap drive cage, and make sure the hooks on the cage are insterted in the backplane holes (see letter A). Push the backplane (see letter B) and secure the backplane with the screw (see letter C). Figure 38. Installing 4x3.5” Hot-swap Backplane ® Intel Server Chassis P4000S Service Guide...

  • Page 41: Installing Hot-Swap Hard Drive

    Figure 39. Removing the 2.5" HDD interface bracket from Carrier Install the 3.5" hard disk drive using the same four screws as shown. Make sure the connector end of the drive matches the backplane connector. ® Intel Server Chassis P4000S Service Guide...

  • Page 42: Installing 2.5" Hard Disk Drive

    Remove the four screws securing the 2.5" HDD interface bracket and remove the 2.5" HDD interface bracket. Figure 41. Removing the 2.5" HDD interface bracket from Carrier Break off the tab on the 2.5" HDD interface bracket (see letter B). ® Intel Server Chassis P4000S Service Guide...

  • Page 43: Figure 42. Breaking Off The Tab On The Bracket

    Slide the 2.5" HDD into the bracket to align the screw holes with the right and left rail (See figure D). Secure the hard disk drive using the screws for the 2.5’’ HDD (See figure E). ® Intel Server Chassis P4000S Service Guide...

  • Page 44: Removing And Installing Airduct

    Remove the chassis cover. For instructions, see “Removing the Chassis Cover”. Install the airduct by aligning the air duct and CPU fans (see letter A) and ensure the tab on air duct is engaged in its snap-in bracket.(see letter B). ® Intel Server Chassis P4000S Service Guide...

  • Page 45: Removing The Airduct

    Remove the chassis cover. For instructions, see “Removing the Chassis Cover”. Push the tab outward to disengage the tab from its snap-in blacket (see letter A). Grasp the air duct and remove (see letter B). Figure 46. Removing the Airduct ® Intel Server Chassis P4000S Service Guide...

  • Page 46: Removing And Installing The Fixed Power Supply

    Rotate the power supply locking device counter-clockwise (see letter A) and remove the fixed power supply (see letter B). Figure 47. Removing Fixed Power Supply Installing the Fixed Power Supply Insert new fixed power supply and rotate the power supply locking device clockwise (see letter A and ® Intel Server Chassis P4000S Service Guide...

  • Page 47: Installing An Additional Hot-Swap Power Supply Module

    Observe the safety and ESD precautions at the beginning of this book. Insert finger into finger hole in middle of filler panel and remove the filler panel from chassis. ® Intel Server Chassis P4000S Service Guide...

  • Page 48: Replacing A Hot Swap Power Supply Module

    Press up on green latch in the direction shown while pulling on handle to remove hot swap power supply from chassis. Figure 51. Removing Hot-swap Power Supply Module from Chassis Insert new power supply module into the power supply cage and push all the way until it clicks into place. ® Intel Server Chassis P4000S Service Guide...

  • Page 49: Replacing The Power Distribution Board For 460W Psus

    Repeat this step for the second hot-swap power supply if it is installed. Figure 53. Removing Hot-swap Power Supply Module from Chassis Loosen screws securing the bracket with power distribution board to the chassis (see letter A and B). ® Intel Server Chassis P4000S Service Guide...

  • Page 50: Figure 54. Loosening The Bracket With Power Distribution Board From Chassis

    (see letter C). Figure 55. Removing the Bracket with Power Distribution Board from Chassis Loosen screws securing the power distribution board to the bracket, and then remove it from the bracket (see letter D). ® Intel Server Chassis P4000S Service Guide...

  • Page 51: Figure 56. Removing The Power Distribution Board From Bracket

    10. Slide the new power distribution board to the bracket (see letter E) and secure the new power distribution board to the bracket using the same screws (see letter F). Figure 57. Sliding the New Power Distribution Board in Bracket ® Intel Server Chassis P4000S Service Guide...

  • Page 52: Figure 58. Securing The New Power Distribution Board In Bracket

    12. Then pull back until the latch on the bracket is engaged with the power supply cage and make sure the screw holes on the bracket is aligned with the screw holes on power supply cage (see letter H). And then secure the bracket with the screws (see letter I and J). ® Intel Server Chassis P4000S Service Guide...

  • Page 53: Figure 60. Securing The Bracket Into Power Supply Cage

    15. Reinstall the air duct. For instructions, see “Installing the Airduct”. 16. Re-install the chassis cover. For instructions, see “Installing the Chassis Cover’. 17. Plug all peripheral devices and the AC power cable into the server. 18. Power up the server. ® Intel Server Chassis P4000S Service Guide...

  • Page 54: Removing And Installing The Rear Fixed Fan

    Hardware Installations and Upgrades Removing and Installing the Rear Fixed Fan NOTE ® This procedure applies only to the Intel Server chassis P4304XXSFCN and P4304XXSHCN. Removing the Rear Fixed Fan Observe the safety and ESD precautions at the beginning of this book.

  • Page 55: Removing And Installing The Front Fixed Fan

    Hardware Installations and Upgrades Connect fan power cable to the server/workstation board. See the Quick Start User’s Guide or Service Guide provided with your Intel server/workstation board for appropriate connection location. Figure 63. Installing the Rear Fixed Fan Removing and Installing the Front Fixed Fan NOTE ®...

  • Page 56: Installing The Front Fixed Fan

    (see letter A and B). Align the fan assembly with the two screw-holes insdie the chassis and secure the fan assembly with the screws (see letter C). ® Intel Server Chassis P4000S Service Guide...

  • Page 57: Figure 65. Installing The Front Fixed Fan

    Hardware Installations and Upgrades Figure 65. Installing the Front Fixed Fan Connect fan power cable to the server/workstation board. See the Quick Start User’s Guide or Service Guide provided with your Intel server/workstation board for appropriate connection location. ® Intel...

  • Page 58: Removing And Installing The Pci Card Guide

    Required only when full length PCI card is plugged. Observe the safety and ESD precautions at the beginning of this book. Power down the server and unplug all peripheral devices and the AC power cable. ® Intel Server Chassis P4000S Service Guide...

  • Page 59: Removing And Installing Pci Add-In Board(S)

    Remove the chassis cover. For instructions, see “Removing the Chassis Cover”. Remove any cables attached to the add-in card, if necessary. From inside of chassis, press open the back panel PCI add-in board retentaion device (see letter A). ® Intel Server Chassis P4000S Service Guide...

  • Page 60: Installing Pci Add-In Board(S) For P4304Xxsfcn And P4304Xxshcn

    Install the PCI card guide if full length PCI card is to be installed. For instructions, see “Install PCI Card Guide” (Only needed when full length PCI card is plugged). Remove the PCI slot shield (see letter A) by pushing from the shield out from inside the chassis. ® Intel Server Chassis P4000S Service Guide...

  • Page 61: Figure 69. Preparing Chassis For Addition Of Pci Add-In Board

    Hold the PCI add-in board by its top edge or upper corners. Firmly press the add-in board into an expansion slot on the server board (see letter C in the following figure). Close the back panel PCI add-in card retention device (see letter D). ® Intel Server Chassis P4000S Service Guide...

  • Page 62: Installing Non-Full Length Pci Add-In Board(S) For P4304Xxsfen/P4304Xxshen/P4304Xxsfdr/P4304Xxshdr/P4304Xxs Fdn/P4304Xxhdn

    Power down the server and unplug all peripheral devices and the AC power cable. Remove the chassis cover. For instructions, see “Removing the Chassis Cover”. Remove the PCI slot shield (see letter A) by pushing from the shield out from inside the chassis. ® Intel Server Chassis P4000S Service Guide...

  • Page 63: Figure 72. Preparing Chassis For Addition Of Pci Add-In Board

    Hold the PCI add-in board by its top edge or upper corners. Firmly press the add-in board into an expansion slot on the server board (see letter C in the following figure). Close the back panel PCI add-in card retention device (see letter D). ® Intel Server Chassis P4000S Service Guide...

  • Page 64: Installing Full Length Pci Add-In Board(S) For P4304Xxsfen/P4304Xxshen/P4304Xxsfdr/P4304Xxshdr/P4304Xxs Fdn/P4304Xxhdn

    Remove the airduct if it is installed. For instruction, see “Removing the Aircut”. Remove the PCI zone system fan (see B in below figure for the PCI zone system fan). For instruction, see “Removing the Front Fixed Fan” ® Intel Server Chassis P4000S Service Guide...

  • Page 65: Figure 75. Front Fixed System Fans

    For chassis with hot-swap drive cage, remove the drive cage and the EMI cover, insert the fan assembly, and then install the EMI cover and the drive cage back. ® Intel Server Chassis P4000S Service Guide...

  • Page 66: Removing And Installing The Chassis Feet

    Removing and Installing the Chassis Feet Removing the Chassis Feet Observe the safety and ESD precautions at the beginning of this book. Power down the server and unplug all peripheral devices and the AC power cable. ® Intel Server Chassis P4000S Service Guide...

  • Page 67: Installing The Chassis Feet

    Repeat above steps until all four feet are installed. Figure 80. Installing the Chassis Feet Put chassis in the upright position. Reconnect all peripheral devices and the AC power cable to the server. Power up the server. ® Intel Server Chassis P4000S Service Guide...

  • Page 68: Removing And Installing The Front Panel Tray

    Press the latch at the sides of the front panel (see letter A) and carefully slide the front panel out (see letter B). CAUTION Do not slide the front panel out far from the front of the chassis before you disconnect the instruction cable from the front panel board. ® Intel Server Chassis P4000S Service Guide...

  • Page 69: Installing The Fron Panel Tray

    Remove the front bezel if it is installed. For instructions, see “Removing the Front Bezel”. Attach the front panel cable and the chassis intrusion cable (see letter A) to the front panel board. ® Intel Server Chassis P4000S Service Guide...

  • Page 70: Figure 84. Connecting The Cables To The Front Panel Board

    Figure 84. Connecting the Cables to the Front Panel Board 6. Slide the front panel tray in chassis Figure 85. Installing the Front Panel Tray in Chassis 7. Connect the front panel and USB cables to server board. ® Intel Server Chassis P4000S Service Guide...

  • Page 71: Replacing The Front Panel Board

    Remove the front panel tray if it is installed. For instructions, see “Removing the Front Panel Tray”. Loose the screw (see letter A) securing the front panel board and remove the front panel board (see letter B) ® Intel Server Chassis P4000S Service Guide...

  • Page 72: Installing And/Or Removing A Server/Workstation Board

    13. Plug all peripheral devices and the AC power cable into the server. 14. Power up the server. Installing and/or Removing a Server/Workstation Board NOTE The server/workstation board you can install in your chassis depends upon the chassis model. ® Intel Server Chassis P4000S Service Guide...

  • Page 73: Installing Alternate Serial Port

    Make sure the server/workstation board is properly seated and then tighten the screws firmly, starting with the screws at the center of the server/workstation board. Make cable ® connections per instructions in the Intel server/workstation board Service Guide and/or Quick Start User’s Guide.

  • Page 74: Connecting And Disconnecting Cables To Or From Server Workstation Board

    Use caution when routing cables to ensure that cables do not obstruct fan airflow. ® Server/Workstation Board Service Guide or Quick Start User’s Guide for cable See your Intel connection locations. If your server has a hot swap power supply, secure the cables (that route toward the server/workstation board) to the chassis.

  • Page 75: Intel Remote Management Module 4

    It also provides Remote KVM Redirection and USB Media Redirection allowing USB devices attached to the remote system to be used on the managed server. ® ® Intel Server Chassis P4000S family provide two Intel Remote Management Module 4 knockout. ® ® For instructions on installing the Intel...

  • Page 76: Figure 92. Mechanical Locks

    Hardware Installations and Upgrades Figure 92. Mechanical Locks ® Intel Server Chassis P4000S Service Guide...

  • Page 77: Technical Reference

    Technical Reference Technical Reference Power Supply Specification ® The power supply specifications for your Intel Server Chassis P4000S family depend upon the configuration of chassis you purchased. Below power supply configurations are available:  365W fixed power supply  460W hot-swap power supply ...

  • Page 78: 460-W Hot-Swap Power Supply Output Voltages

    Max combined power on 3.3V and 5V shall not exceed 120W. System Environmental Requirements Table 7. Environmental Requirements Parameter Limits Operating temperature +10°C to +35°C with the maximum rate of change not to exceed 10°C per hour. ® Intel Server Chassis P4000S Service Guide...

  • Page 79: Current Usage

    +12 V -12 V 5V Standby Baseboard, Front Panel Board and Fans Processor(s) Memory 3.5-inch Diskette Drive CD-ROM Drive Second 5.25-inch Device Third 5.25-inch Device 1st Hard Drive 2nd Hard Drive 3rd Hard Drive ® Intel Server Chassis P4000S Service Guide...

  • Page 80: Table 9. Power Usage Worksheet 2

    Expansion Board 1 Expansion Board 2 Expansion Board 3 Expansion Board 4 Expansion Board 5 Expansion Board 6 ® Intel Remote Management Module Control Panel Total Current Worksheet, Total Combined Power Used by the Server  From the previous worksheet, enter the total current for each column.

  • Page 81: Appendix A: Regulatory And Compliance Information

    Appendix A: Regulatory and Compliance Information Appendix A: Regulatory and Compliance Information Please refer to the Server Products Regulatory and Safety document for the product regulatory compliance reference. The document can be downloaded from http://www.intel.com/support/motherboards/server/. ® Intel Server Chassis P4000S Service Guide...

  • Page 82: Appendix B: Safety Information

    Appendix B: Safety Information Appendix B: Safety Information Please refer to the Server Products Regulatory and Safety document for the Safety Information. The document can be downloaded from http://www.intel.com/support/motherboards/server/. ® Intel Server Chassis P4000S Service Guide...

  • Page 83: Appendix C: Installation/Assembly Safety Instructions

    Appendix C: Installation/Assembly Safety Instructions Appendix C: Installation/Assembly Safety Instructions Please refer to the Server Products Regulatory and Safety document for the Installation/Assembly Safety Instructions. The document can be downloaded from http://www.intel.com/support/motherboards/server/. ® Intel Server Chassis P4000S Service Guide...

  • Page 84: Appendix D: Getting Help

    A searchable knowledgebase to search for product information throughout the  support site Send an email to Intel’s technical support center using the following online form if you still cannot obtain a solution to your issue. Lastly, you can contact an Intel support representative using one of the following support phone numbers.

  • Page 85: Appendix E: Intel Server Issue Report Form

    ® Appendix E: Intel Server Issue Report Form ® Appendix E: Intel Server Issue Report Form Issue Report Form (Rev 3.5) NOTE FILLING OUT THIS FORM COMPLETELY IS REQUIRED FOR ANY ESCALATION Customer Contact Information: Customer Support Case# : ®...
  • Page 86 (1U, Passive w/air ducting, Active w/fan, and so on) Memory: Manufacturer Part Number DRAM Part Number On Intel tested list? Add-in adapters (Example: NICs, Management Adapters, Serial Expansion Cards, PCI- Express* Adapters, RAID Controllers, SCSI Controllers, and so on): Type Slot...
  • Page 87 ® Appendix E: Intel Server Issue Report Form Description/Use Manufacturer Model Firmware Storage Devices (Example: SCSI, SATA, SAS, USB, Tape, and so on): Manufacturer Model Type Size Firmware In Hot Swap Bay? Operating System Information (Example: RedHat* Enterprise Linux, Microsoft Windows...
  • Page 88 ® Appendix E: Intel Server Issue Report Form Detailed description of issue: Troubleshooting tried: Steps to replicate the issue: ® Intel Server Chassis P4000S Service Guide...
  • Page 89 Server Issue Report Form Issue impact statements: Do you have any potential Intel system, or component purchases that this issue is holding up? If yes, please provide a brief description below. Do you have systems already purchased that are not being delivered to your customers because of this issue? If yes, please provide a brief description below.

  • Page 90: Appendix F: Warranty

    Product. In no event will Intel be liable for any other costs associated with the replacement or repair of Product, including labor, installation or other costs incurred by buyer and in particular, any costs relating to the removal or replacement of any product soldered or otherwise permanently affixed to any printed circuit board.

  • Page 91: Warranty Limitations And Exclusions

    Any replacement Product is warranted under this written warranty and is subject to the same limitations and exclusions for the remainder of the original warranty period. Telephone Support If you cannot find the information you need on Intel's World Wide Web site (http://www.intel.com), call your local distributor or an Intel Customer Support representative. ®...

  • Page 92: Returning A Defective Product

    Appendix F: Warranty See Appendix D: Getting Help for telephone numbers. Returning a Defective Product Before returning any product, call your authorized dealer/distribution authority. ® Intel Server Chassis P4000S Service Guide...
