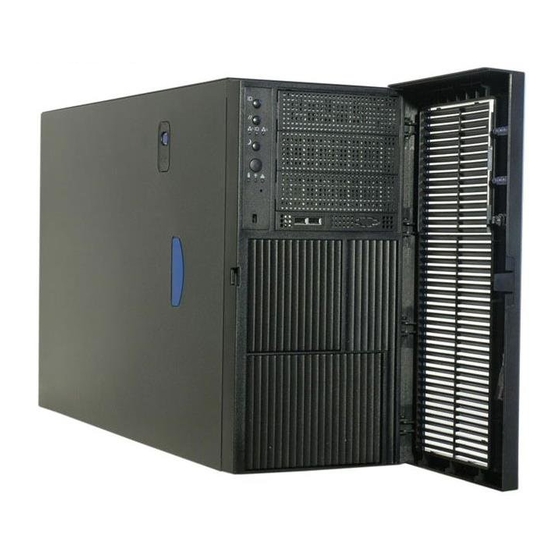

Summary of Contents for Intel SC5300BASE
- Page 1 Local Control Panel Kit Install Guide: Intel® Entry Server Chassis SC5275-E UP/DP/WS/BRP Intel® Entry Server Chassis SC5299-E DP/WS/BRP Intel® Server Chassis SC5300 Intel® Server Chassis SC5400 ® A Guide for Technically Qualified Assemblers of Intel Identified Subassemblies/Products Intel Order Number: C77420-002...
- Page 2 Intel products are not designed, intended or authorized for use in any medical, life saving, or life sustaining applications or for any other application in which the failure of the Intel product could create a situation where personal injury or death may occur.
-
Page 3: Safety Information
Safety Information Important Safety Instructions Read all caution and safety statements in this document before performing any of the instructions. See also Intel Server Boards and Server Chassis Safety Information on the ® Intel Server Deployment Toolkit CD and/or at http://support.intel.com/support/ motherboards/server/sb/cs-010770.htm. - Page 4 Safety Information Warnings Heed safety instructions: Before working with your server product, whether you are using this guide or any other resource as a reference, pay close attention to the safety instructions. You must adhere to the assembly instructions in this guide to ensure and maintain compliance with existing product certifications and approvals.
-
Page 5: Table Of Contents
Kit Content List ........................... 1 Tools and Supplies Needed ......................2 System References ........................2 Installation Instructions for Intel® Server Chassis SC5300/SC5400 ........2 Remove Access Cover ....................... 2 Remove Bezel Assembly ......................3 Remove Outer Bezel Door from Bezel Assembly ............... 4 Remove Upper Third of Bezel Grill ..................... - Page 6 Contents Replace Bezel .......................... 24 Replace Access Cover ......................25 Local Control Panel Kit Install Guide...
- Page 7 Figure 31. Routing LCP Cable ....................22 Figure 32. Attaching LCP Cable to Header on Intel® Server Board S5000VSA ..... 23 Figure 33. Attaching LCP Cable to Header on Intel® Server Board S5000PSL or Intel® Server Board XVN ......................... 23 Figure 34.
- Page 8 List of Figures viii Local Control Panel Kit Install Guide...
-
Page 9: Local Control Panel Kit Installation Instructions
Intel® Server Chassis SC5300, Intel® Server Chassis SC5400, Intel® Entry Server Board SC5275-E or Intel® Entry Server Chassis SC5299-E. Note: For the Local Control Panel to function properly on an Intel® server board, you will need to install an Intel® Management Module on the server board. -
Page 10: Tools And Supplies Needed
Installation Instructions for Intel® Server Chassis SC5300/ SC5400 Note: This section only applies to Local Control Panel kit installations for the Intel® Server Chassis SC5300/SC5400. If you are installing a Local Control Panel kit into an Intel® Entry Server Chassis SC5275-E, follow the instructions under “Installation Instructions... -
Page 11: Remove Bezel Assembly
Local Control Panel Kit Installation Instructions Remove Bezel Assembly Release the two plastic tabs (see letter “A” in the following figure) on the left side of the bezel assembly to disengage the tabs. Rotate the bezel assembly (see letter “B”) no more than 40 degrees outward. -
Page 12: Remove Outer Bezel Door From Bezel Assembly
Local Control Panel Kit Installation Instructions Remove Outer Bezel Door from Bezel Assembly Note: The bezel assembly consists of two parts, an inner bezel door and an outer bezel door. With one hand supporting the inner bezel door, use your other hand to push the outer bezel door away from the inner bezel door. -
Page 13: Remove Upper Third Of Bezel Grill
Local Control Panel Kit Installation Instructions Remove Upper Third of Bezel Grill Remove the upper one-third of the bezel grill by pushing grill forward. TP00636 Figure 4. Removing Upper One-third of Bezel Grill Install LCP Grill Install new LCP grill into outer bezel door by pressing grill in from the front. TP00637 Figure 5. -
Page 14: Remove Lowest Cd-Rom/Dvd Drive Filler Panel
Local Control Panel Kit Installation Instructions Remove Lowest CD-ROM/DVD Drive Filler Panel Remove the lowest CD-ROM/DVD/Floppy drive or filler panel from chassis. TP00638 Note:Removal of CD-ROM drive shown. Figure 6. Removing Lowest Floppy/CD-ROM/DVD Drives or Filler Panel Local Control Panel Kit Install Guide... -
Page 15: Install Emi Shield Onto Lcp Carrier
Local Control Panel Kit Installation Instructions Install EMI Shield onto LCP Carrier Your backplane board shipped with an EMI shield that has to be installed. Install the EMI shield by aligning the middle tooth (see letter “A” in the following figure) with the indentation in the side of the LCP carrier. -
Page 16: Route Lcp Cable
Figure 9. Installing LCP Carrier Route LCP Cable Route the LCP cable under the chassis fan area (along side the floppy and IDE cables) to the corner of the server board where the LCP header is located on your Intel® server board. TP00640 Note:Intel®... -
Page 17: Connect Lcp Cable To Lcp Header Of Server Board
Connect LCP Cable to LCP Header of Server Board 1. Connect the LCP cable to the LCP header on the server board. 2. For an Intel Server Board SE7520AF2, use header J1J1 on the server board. TP00642 Figure 11. Attaching LCP Cable to Header on Intel® Server Board SE7520AF2... -
Page 18: Replace Bezel Assembly
Local Control Panel Kit Installation Instructions 3. For an Intel Server Board SE7520BD2, use header J2K8 on the server board. TP00641 Figure 12. Attaching LCP Cable to Header on Intel® Server Board SE7520BD2 Replace Bezel Assembly Fit the right-hand side of the inner bezel door against the right-hand side of chassis and engage plastic bezel hooks (see letter “A”... -
Page 19: Replace Access Cover
Local Control Panel Kit Installation Instructions Caution: Do not attach inner bezel door to chassis at more than a 40-degree angle or you may damage the bezel hooks at the right-hand side of the door. TP01130 Figure 13. Installing Inner Bezel Door Replace Access Cover Replace access cover and slide forward to secure cover to chassis. -
Page 20: Installation Instructions For Intel® Entry Server Chassis Sc5275-E
Installation Instructions for Intel® Entry Server Chassis SC5275-E Note: This section only applies to Local Control Panel kit installations for the Intel® Entry Server Chassis SC5275-E. If you are installing a Local Control Panel kit into an Intel® Server Chassis SC5300/SC5400, follow the instructions under “Installation Instructions... -
Page 21: Remove Bezel
Local Control Panel Kit Installation Instructions Remove Bezel To remove the bezel: 1. Disengage the two bezel tabs (see letter “A” in the following figure) from the chassis. 2. Rotate the left side of bezel outward slightly (see letter “B”). 3. -
Page 22: Install Emi Shield Onto Lcp Carrier
Local Control Panel Kit Installation Instructions Install EMI Shield onto LCP Carrier Your backplane board shipped with an EMI shield that has to be installed. Install the EMI shield by aligning the middle tooth (see letter “A” in the following figure) with the indentation in the side of the LCP carrier. -
Page 23: Figure 20. Inserting Lcp Carrier Into Drive Bay
Route the LCP cable to the corner of the server board where the LCP header is located on your Intel® Server Board SE7520AF2 or Intel® Server Board SE7520BD2. TP00646 Figure 21. Routing LCP Cable in Intel® Entry Server Chassis SC5275-E Local Control Panel Kit Install Guide... -
Page 24: Connect Lcp Cable To Lcp Header On Server Board
Connect LCP Cable to LCP Header on Server Board 1. Connect the LCP cable to the LCP header on the server board. 2. For an Intel® Server Board SE7520AF2, use header J1J1 on the server board. TP00648 Figure 22. Attaching LCP Cable to Header on Intel® Server Board SE7520AF2... -
Page 25: Replace Bezel
Local Control Panel Kit Installation Instructions 3. For an Intel® Server Board SE7520BD2, use header J2K8 on the server board. TP00647 Figure 23. Attaching LCP Cable to Header on Intel® Server Board SE7520BD2 Replace Bezel 1. If necessary, remove filler panel from bezel that corresponds to the position of the LCP carrier. -
Page 26: Replace Access Cover
Local Control Panel Kit Installation Instructions 4. Snap the two bezel tabs (see letter “C”) into their corresponding recesses at left edge of chassis. Figure 24. Installing Bezel Replace Access Cover To replace the access cover: 1. Position access cover on chassis (see letter “A” in the following figure). 2. -
Page 27: Installation Instructions For Intel® Entry Server Chassis Sc5299-E
Installation Instructions for Intel® Entry Server Chassis SC5299-E Note: This section only applies to Local Control Panel kit installations for the Intel® Entry Server Chassis SC5299-E. If you are installing a Local Control Panel kit into an Intel® Server Chassis SC5300/SC5400, follow the instructions in “Installation Instructions for... -
Page 28: Remove Lowest Cd-Rom/Dvd Drive Filler Panel
Local Control Panel Kit Installation Instructions 2. Rotate the left side of bezel outward slightly (see letter “B”). 3. Disengage the latches that attach the right side of the bezel to the chassis and remove (see letter “C”). TP02034 Figure 27. Removing Bezel Remove Lowest CD-ROM/DVD Drive Filler Panel Remove the lowest CD-ROM/DVD/floppy drive or filler panel from chassis. -
Page 29: Install Emi Shield Onto Lcp Carrier
Local Control Panel Kit Installation Instructions Install EMI Shield onto LCP Carrier Your backplane board shipped with an EMI shield that has to be installed. Install the EMI shield by aligning the middle tooth (see letter “A” in the following figure) with the indentation in the side of the LCP carrier. -
Page 30: Inserting Lcp Carrier Into Drive Bay Of Server Chassis
Figure 30. Inserting LCP Carrier into Drive Bay Route LCP Cable Route the LCP cable to the corner of the server board where the LCP header is located on your Intel® Server Board S5000VSA, Intel® Server Board S5000PSL or Intel® Server Board S5000XVN. AF00568 Figure 31. -
Page 31: Connect Lcp Cable To Lcp Header On Server Board
Connect LCP Cable to LCP Header on Server Board 1. Connect the LCP cable to the LCP header on the server board. 2. For an Intel® Server Board S5000VSA, use header J1J6 on the server board. AF00569 Figure 32. Attaching LCP Cable to Header on Intel® Server Board S5000VSA 3. -
Page 32: Figure 34. Installing Bezel
Local Control Panel Kit Installation Instructions Replace Bezel 1. If necessary, remove filler panel from bezel that corresponds to the position of the LCP carrier. 2. Line up the three clips (see letter “A” in the following figure) at the right edge of the bezel with the corresponding latches on the right side of the chassis. -
Page 33: Figure 35. Replacing Access Cover
Local Control Panel Kit Installation Instructions Replace Access Cover To replace the access cover: 1. Slide the access cover on the chassis and latch securely (see letter “A” in the following figure). 2. (optional) Replace shipping screws (see letter “B”). Caution: This chassis must be operated with the access cover installed to ensure proper cooling. - Page 34 Local Control Panel Kit Installation Instructions Local Control Panel Kit Install Guide...
