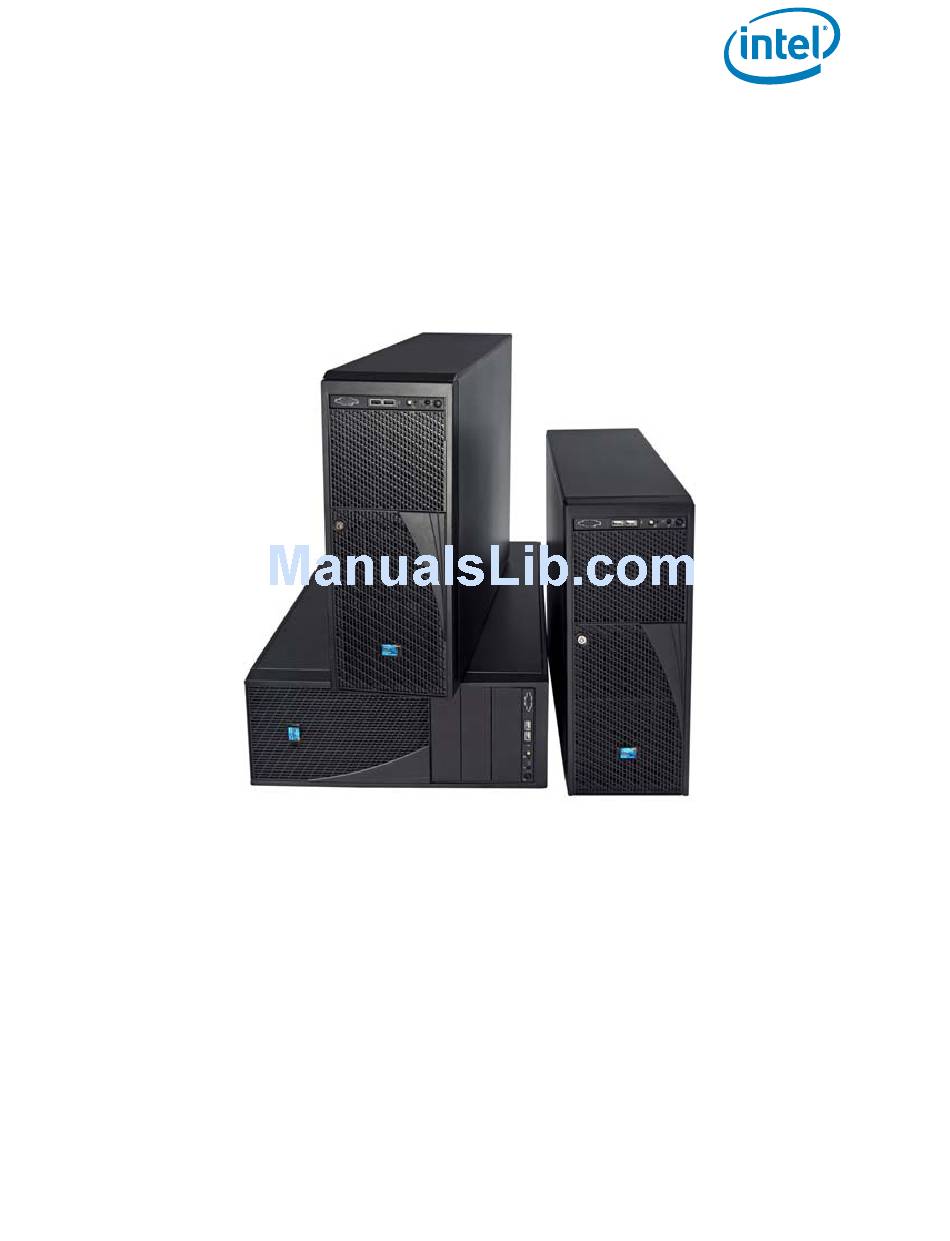

Intel
Server Chassis P4000 Family
®
Configuration Guide and Spares/Accessories List
A reference guide to assist customers in ordering the necessary components to
®
configure the P4000 family of Intel
Server Chassis.
Revision 2.3
July 2014

Advertisement

loading
Need help?

Need help?

Do you have a question about the P4000 series and is the answer not in the manual?

Questions and answers

Related Manuals for Intel P4000 series

Summary of Contents for Intel P4000 series

  • Page 1 Intel Server Chassis P4000 Family ® Configuration Guide and Spares/Accessories List A reference guide to assist customers in ordering the necessary components to ® configure the P4000 family of Intel Server Chassis. Revision 2.3 July 2014...

  • Page 2: Revision History

    Life “on site repair” options, End of Life VMware* options, and End of Life Symantec* options.  ® ™ Feb’13 – Rev 1.7: Updated AUPLCOPROBR and AUPMCOPROBR bracket kits for Intel Xeon Phi coprocessors.  April’13 – Rev 1.8: Corrected a typo “FFPUPSAS” with “FFPUPSAD”. Added EOL announcement for some SKUs.
  • Page 3 PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. A "Mission Critical Application" is any application in which failure of the Intel Product could result, directly or indirectly, in personal injury or death. SHOULD YOU PURCHASE OR USE INTEL'S PRODUCTS FOR ANY SUCH MISSION CRITICAL...

  • Page 4: Table Of Contents

    ABLE OF ONTENTS PRODUCT ORDER CODE INFORMATION ......................... 1       – O ........................1 RODUCT ESCRIPTIONS VERVIEW ® ®     ........2 RODUCTION RDER ODES FOR NTEL ERVER HASSIS AND NTEL ERVER YSTEMS SPARES AND ACCESSORIES ORDER CODES ......................13  ...

  • Page 5: Product Order Code Information

    This Configuration Guide focuses on the P4000 chassis family SKUs (KDKs). The rest of the integrated systems (board in KDK) are included in each system’s Configuration Guide documents. ® Pedestal Chassis Product SKUs have three different lengths based on which Intel Server Board is supported: ...

  • Page 6: Production Order Codes For Intel ® Server Chassis And Intel ® Server Systems

    This chassis does not have airduct. AUPMGPUBR (MM#920613) is required to support add-in GPGPU cards. ® AUPMCOPROBR (MM#926364) is required to support add-in Intel Xeon ™ coprocessor cards.
  • Page 7 This chassis does not have any airduct. AUPMGPUBR (MM#920613) is required to support add-in GPGPU cards. ® AUPMCOPROBR (MM#926364) is required to support add-in Intel Xeon ™ coprocessor cards.GPGPU cards.
  • Page 8 This chassis does not have any airduct . AUPMGPUBR (MM#920613) is required to support add-in GPGPU cards. ® AUPMCOPROBR (MM#926364) is required to support add-in Intel Xeon ™ coprocessor cards.
  • Page 9 This chassis does not have any airduct. AUPMGPUBR (MM#920613) is required to support add-in GPGPU cards. ® AUPMCOPROBR (MM#926364) is required to support add-in Intel Xeon ™ coprocessor cards.
  • Page 10 This chassis does not have any airduct. AUPMGPUBR (MM#920613) is required to support add-in GPGPU cards. ® AUPMCOPROBR (MM#926364) is required to support add-in Intel Xeon ™ coprocessor cards.
  • Page 11 This chassis does not have any airduct. AUPMGPUBR (MM#920613) is required to support add-in GPGPU cards. ® AUPMCOPROBR (MM#926364) is required to support add-in Intel Xeon ™ coprocessor cards.
  • Page 12 This chassis does not have any airduct. AUPMGPUBR (MM#920613) is required to support add-in GPGPU cards. ® AUPMCOPROBR (MM#926364) is required to support add-in Intel Xeon ™ coprocessor cards.
  • Page 13 This chassis does not have any airduct. AUPMGPUBR (MM#920613) is required to support add-in GPGPU cards. ® AUPMCOPROBR (MM#926364) is required to support add-in Intel Xeon ™ coprocessor cards.
  • Page 14 Product Code Image Description ® Intel Server Chassis P4304XXSHCN (Entry Pedestal Chassis w/ 4 x Hot Swap (3.5”) HDD Drive Kit, 365W non-redundant power supply). It includes four 450mm SATA cables with one vertical and one right angle 7-pin SATA headers.
  • Page 15 Product Code Image Description A general purpose pedestal chassis targeted at small to medium business supporting CEB form factor server boards with 3.5" Fixed HDDs, 460W Cold-Redundant Power Supplies and non-Redundant Cooling. Includes: 4x 3.5" Fixed Drive Carriers, 2x 460W Common Redundant Power Supply P4304XXSFDR (Platinum Efficiency), 2x 92mm fixed fans, two SATA power cables.
  • Page 16 P4304BTLSFCN, P4304BTLSFCNNA, P4304BTLSHCN, P4304BTLSHCNNA, P4304BTSSFCN, P4304BTSSFCNNA, P4304XXSFCN, P4304XXSHCN, P4304XXSFEN, P4304XXSHEN, P4304XXSFDN, P4304XXSFDR, P4304XXSHDN, P4304XXSHDR ® ® Two year extended warranty for Intel Server Systems or Intel Server ® Knock Down Kits + Intel Server Boards that support two processors. ®...

  • Page 17: Spares And Accessories Order Codes

    ODES System Spares and Accessories Product Code Image Description Value Rail Kit, half extension. Works for 438mm wide AXXELVRAIL Intel 2U/4U Rack Chassis and System families (H2000, R2000LH/R2000LT, and P4000M/P4000L/P4000L-WS). 920970 00735858244367 5032037038980 Advanced rail kit for P4000M/P4000L/P4000L-WS Server AXX3U5UPRAIL Chassis used when converting Pedestal chassis to 4U rack chassis, and full extension rails are needed.
  • Page 18 Product Code Image Description 8x3.5" Hot Swap Drive Cage Kit for P4000 server chassis. FUP8X35HSDK Includes: Drive Cage, Hot Swap Backplane, 8 Hot Swap Drive Carriers, data cables, I C cable, and ID filler panel 915608 00735858235907 5032037030663 8x2.5 Hot Swap Drive Cage Kit for P4000 server chassis. Includes: Drive cage, Hot Swap Backplane, 8 Hot Swap Drive carriers, data cables, I C cable, ID filler panels, and...
  • Page 19 Product Code Image Description Bezel spare for P4000 server chassis with fixed drives (no door). Note: FUPBEZELFIX is compatible to P4304XXSFCN FUPBEZELFIX (911754) with TA number G15844-005, -004, -003, -002 911886 and -001, P4304XXSHCN (911765) with TA number 00735858219457 G21447-004, -003, -002 and -001 exclusively. All rest 5032037016254 chassis with fixed drives are compatible with FUPBEZELFIX2.
  • Page 20 Product Code Image Description Rack bezel kit for converting P4000 pedestal server chassis to rack chassis. Includes: Bezel frame and two rack handles. AUPBEZEL4UF 915636 00735858235976 5032037030731 Rack bezel accessory for P4000M/P4000L/P4000L-WS AUPBEZEL4UD chassis in rack configuration – security door only. 915637 00735858235983 5032037030748...
  • Page 21 Product Code Image Description  1x SATA extension Cable, one right angle header to one vertical header, 600mm  1xSGPIO Cable, one 5-pin header to one 5-pin header and one 4-pin header.  1x I C Cable, one 5-pin header to one 3 pin header, 600mm ...
  • Page 22 Product Code Image Description...
  • Page 23 Product Code Image Description Chassis Maintenance kit for P4000M (Electric Spares Kit). Includes:  2x SATA power cables, one 4-pin ATX power header to two SATA power headers, 150mm  2x SAS cables, one mini SAS header to four SATA vertical headers without SGPIO , 600mm ...
  • Page 24 Product Code Image Description...
  • Page 25 Product Code Image Description Chassis Maintenance kit for P4000L/P4000L-WS. Includes:  2x SATA power cables, one 1x4 pin natural ATX power header to two SATA power headers, 150mm  1x I C cable, one 5 pin header to one 3 pin header, 600mm ...
  • Page 26 1x intrusion cable. 200mm  1x front panel cable, 920mm  1x USB cable. One 2x5 header to two USB type A female headers , 950mm ® 1394 Cable and mounting kit (unique for Intel S2600CO Server Board). AUPM1394CBL 919563 00735858240024 5032037034760 ®...
  • Page 27 Backplanes (total 24 drives) North American Power Cord Spare FPWRCABLENA 879287 00735858181129 AUPLWSFIO Front IO Panel for Intel Workstation P4000CR2 system with audio, eSATA, and 1394B ports, spare. 920851 00735858244701 5032037039277 Bracket for securing full length double width GPU cards...
  • Page 28 00735858257046 5032037049139 Bracket for securing full length double width GPU cards to fan bulkhead, for use in P4000L/P4000L-WS, includes ® ™ 1 bracket, 4 GPGPU power cables, 4 Intel Xeon Phi Coprocessor PCI Express* Card extension brackets, screws. AUPLCOPROBR 926365...
  • Page 29 ® The production Intel heat sink, SRC-B tower active, ® 98mmx100mm, required for production Intel S2600CR ® workstation board to be used in production Intel AUPSRCBTA ® workstation chassis P4000L-WS series, or Intel Server 915294 ® Board 2600COE to be used in production Intel 00735858236164 pedestal chassis P4000M with 150W CPU installed.
  • Page 30 ® S1400FP in Intel Server Chassis P4000S. 921665 00735858247955 5032037042833 ® Air duct and unique cable kit for Intel Server Board ® S2400SC to be used Intel Server Chassis P4000M. Included cables:  1x SAS cable, one mini SAS header to four right angle SATA headers.
  • Page 31 Product Code Image Description ® Air duct and unique cable kit for Intel Server Board ® S2600CP to be used Intel Server Chassis P4000M. Included cables:  4x SAS/SATA cables. One right angle SAS header to one vertical header.450mm. FCPUPMAD ...
  • Page 32 Product Code Image Description ® Air duct and unique cable kit for Intel Server Board ® S2600CO to be used Intel Server Chassis P4000M. Included cables:  4x SATA cables. One right angle SATA header to one vertical SATA header, 450mm.

  • Page 33: Power Subsystem Spares

    Power Subsystem Spares Product Code Image Description P4304 365W Power Supply Spare (80 Plus Silver). FUP365SNRPS 911884 00735858219433 5032037016223 550W Power supply spare for P4000 chassis 80Plus FUP550SNRPS Silver efficiency. 915602 00735858235839 5032037030588 460W Common Redundant Power Supply spare 80Plus Gold efficiency for P4000, R1000, and R2000 server FXX460GCRPS chassis.
  • Page 34 Product Code Image Description Power Distribution Board Spare (Low Current) for P4000 FUPPDBLC server chassis. Recommended to use with 916812 FXX460GCRPS or FXX750PCRPS power supplies. 00735858238731 5032037033510 Power Distribution Board Spare (High Current) for P4000 FUPPDBHC server chassis. Recommended to use with FXX750PCRPS, FXX1200PCRPS or FXX1600PCRPS 916813 power supplies.
