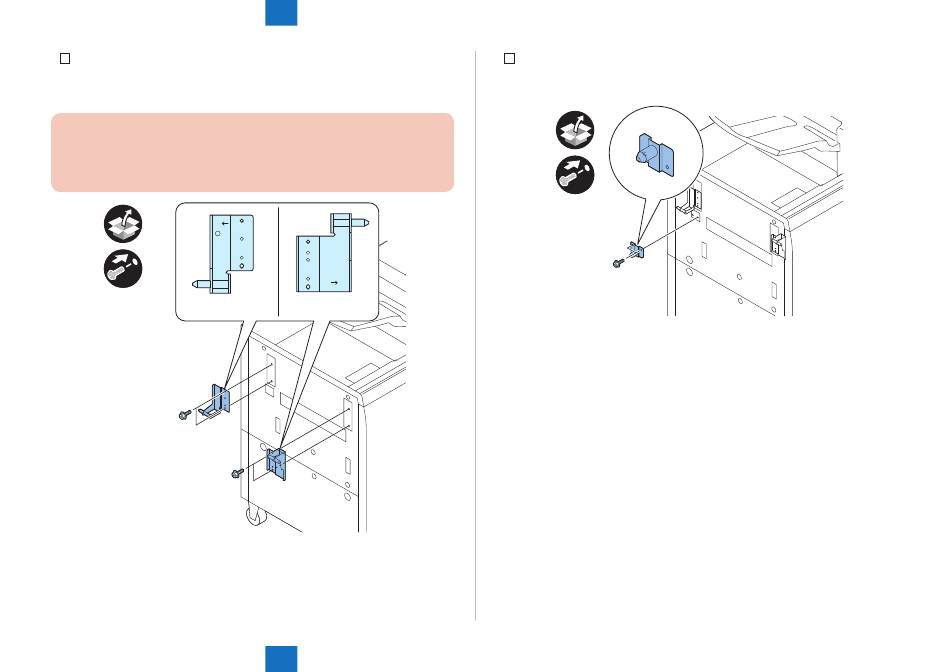

2) IInstall the Latch Receiver (Front) and Latch Receiver (Rear) in the left side of the High
Capacity Stacker.
• 4 Screws (RS tightening; M4x10)
CAUTION:
Confirm the engraved mark on each latch plate when attaching.
• Latch Receiver (Front) : F
• Latch Receiver (Rear) : R
R
x4
Latch Receiver (Rear)
7
Installation > Installation Procedure > Connecting with the High Capacity Stacker
F
Latch Receiver (Front)
F-7-59
7 Installation > Installation Procedure > Connecting with the High Capacity Stacker
3) Install the Positioning Pin.
• 2 Screws (RS tightening; M4x10)
x2
7-22
F-7-60
