Canon Finisher-AK1 Service Manual page 308

5
Adjustment > Auxiliary Adjustment > Side registration position fine adjustment mode (shift amount change) > Procedure

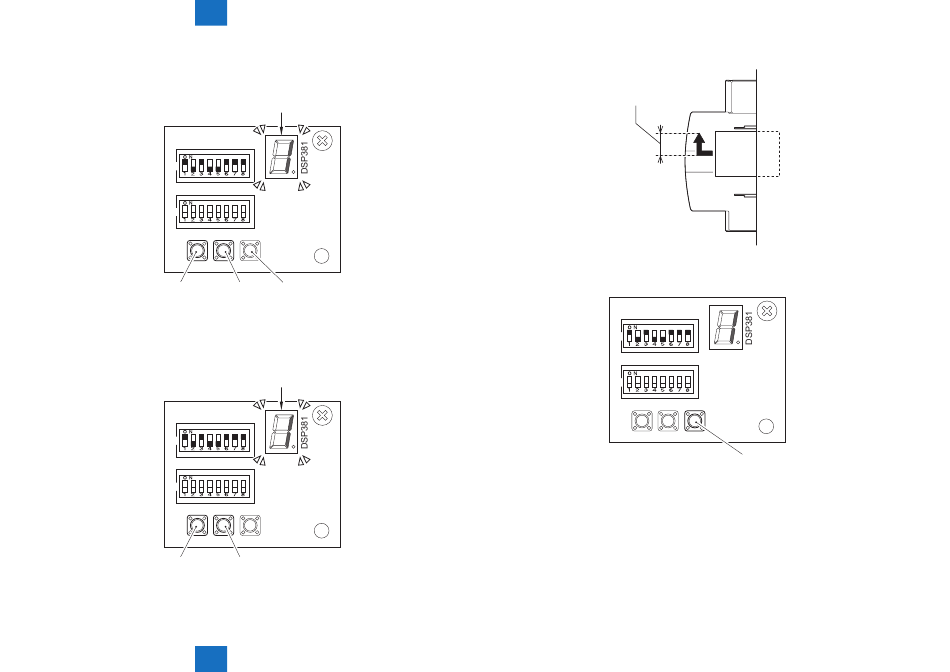

7) Press the Push Switch SW383 [1] or SW384 [2], and display "B" on LED [3] (select the
adjustment value setting mode).
8) Press the Push Switch SW385 [4] to determine the mode.
SW382
SW381
SW383 SW384 SW385
(-) (+)
[1]
9) Press SW383 [1] or SW384 [2], and adjust the shift amount in increments of 1 pulse.
• Adjustment range: 0 to -40 (shift amount per unit: 0.1 mm)
Example) When the adjustment value is -40, the shift amount is decreased by 4 mm.
• +/-15 to +/-11 mm (Default: +/-15 mm)
SW382
SW381
SW383 SW384 SW385
(-) (+)
[1]
5 Adjustment > Auxiliary Adjustment > Side registration position fine adjustment mode (shift amount change) > Procedure
[3]
ENTER
[2] [4]
F-5-342
[3]
ENTER
[2]
F-5-343
<In the case of shifting to the rear side>
15mm～11mm
10) Press the Push Switch SW385 [1] to determine the shift amount, and complete the
adjustment.
SW382
SW381
SW383 SW384 SW385
(-) (+)
F-5-344
ENTER
[1]
F-5-345
5-137
