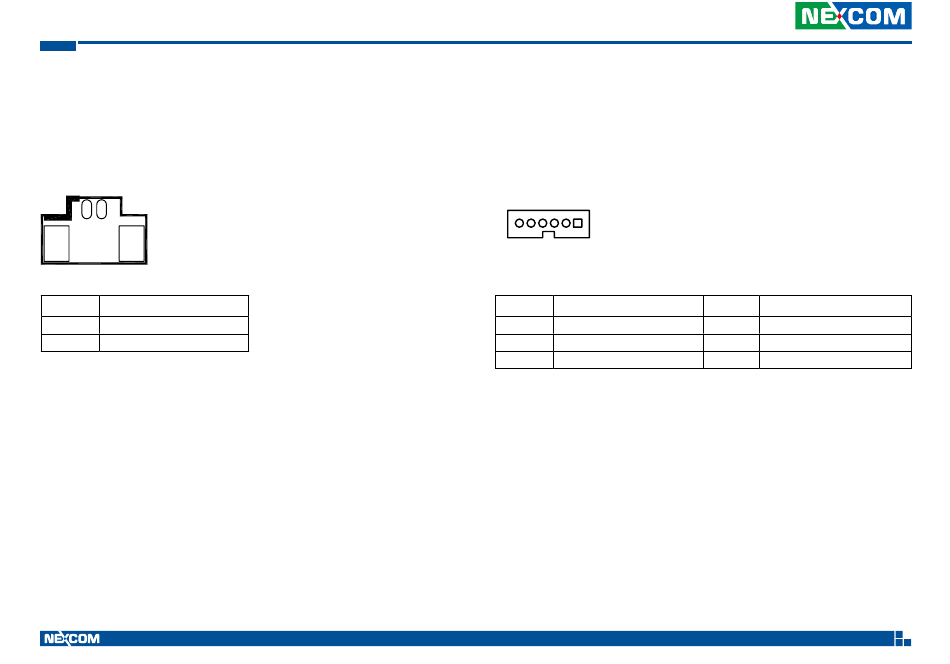

Chapter 3: Jumpers and Connectors
GPS Battery Connector
Connector type: 1x2 2-pin header
Connector location: J2
1 2
Pin
Definition
1
GND
2
GPS_RTC
Copyright © 2022 NEXCOM International Co., Ltd. All Rights Reserved.
GPS Module Connector
Connector type: 1x6 6-pin header
Connector location: J3
6
1
Pin
Definition
1
GPS_BAT
3
GPS_TXD
5
GND
29
Pin
Definition
2
VCC3_GPS
4
GPS_RXD
6
VCC3_GPS
VTC 7260 Series User Manual
