Chapter 3: Jumpers and Switches

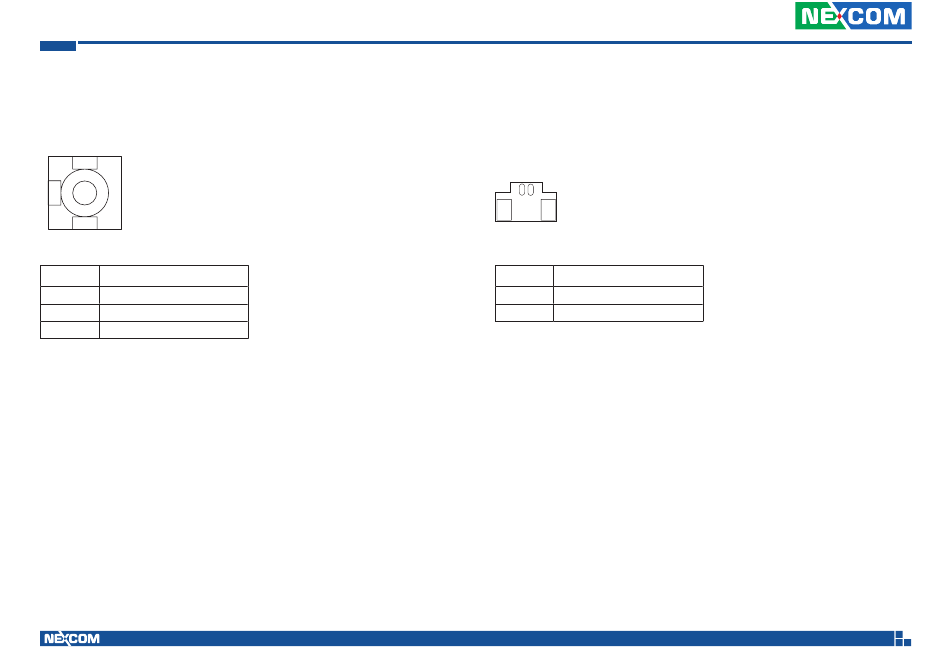

GPS Antenna Connector
Connector location: CN1
3
1
2
Pin
Definition
1
RF_IN
2
GND
3
GND
Copyright © 2018 NEXCOM International Co., Ltd. All Rights Reserved.
GPS Battery Connector
Connector size: 1 x 2 = 2-pin header (1.25mm)
Connector location: CN5
1
2
Pin
Definition
1
GND
2
BACKUP_VOT (3.3V)
20
VTC 1911 User Manual
