Isolated Thermocouple Module - Emerson ControlWave Instruction Manual

ControlWave I/O Expansion Rack Instruction Manual

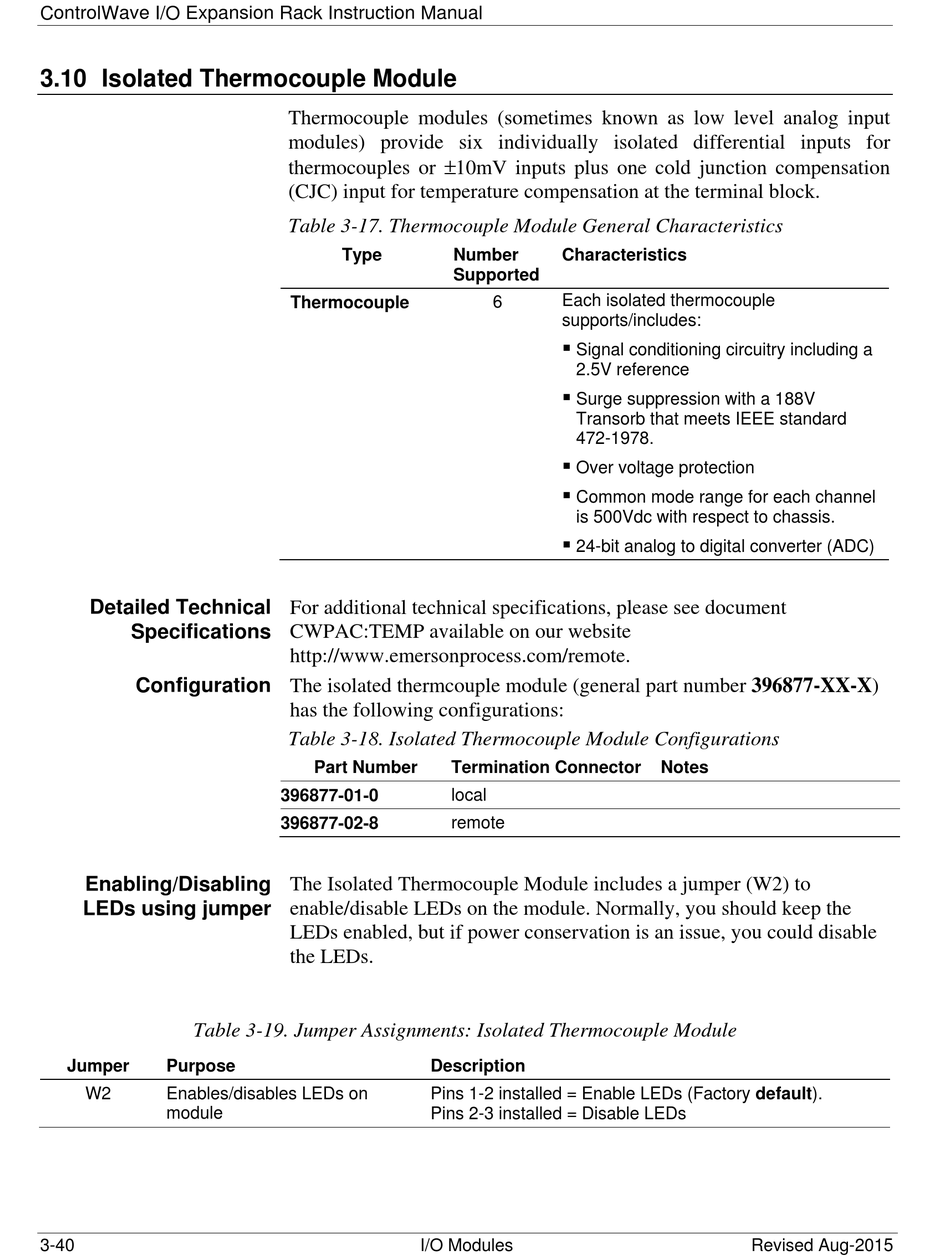

3.10 Isolated Thermocouple Module

Detailed Technical
Specifications
Configuration The isolated thermcouple module (general part number 396877-XX-X)
Enabling/Disabling
LEDs using jumper
Table 3-19. Jumper Assignments: Isolated Thermocouple Module
Jumper Purpose
W2 Enables/disables LEDs on
module
3-40
Thermocouple modules (sometimes known as low level analog input
modules) provide six individually isolated differential inputs for
thermocouples or 10mV inputs plus one cold junction compensation
(CJC) input for temperature compensation at the terminal block.
Table 3-17. Thermocouple Module General Characteristics
Type Number
Supported
Thermocouple
For additional technical specifications, please see document
CWPAC:TEMP available on our website
http://www.emersonprocess.com/remote.
has the following configurations:
Table 3-18. Isolated Thermocouple Module Configurations
Part Number Termination Connector
396877-01-0 local
remote
396877-02-8
The Isolated Thermocouple Module includes a jumper (W2) to
enable/disable LEDs on the module. Normally, you should keep the
LEDs enabled, but if power conservation is an issue, you could disable
the LEDs.
Description
Pins 1-2 installed = Enable LEDs (Factory default).
Pins 2-3 installed = Disable LEDs
I/O Modules
Characteristics
Each isolated thermocouple
6
supports/includes:

Signal conditioning circuitry including a
2.5V reference

Surge suppression with a 188V
Transorb that meets IEEE standard
472-1978.

Over voltage protection

Common mode range for each channel
is 500Vdc with respect to chassis.

24-bit analog to digital converter (ADC)
Notes
Revised Aug-2015
