2.4 CPU Module

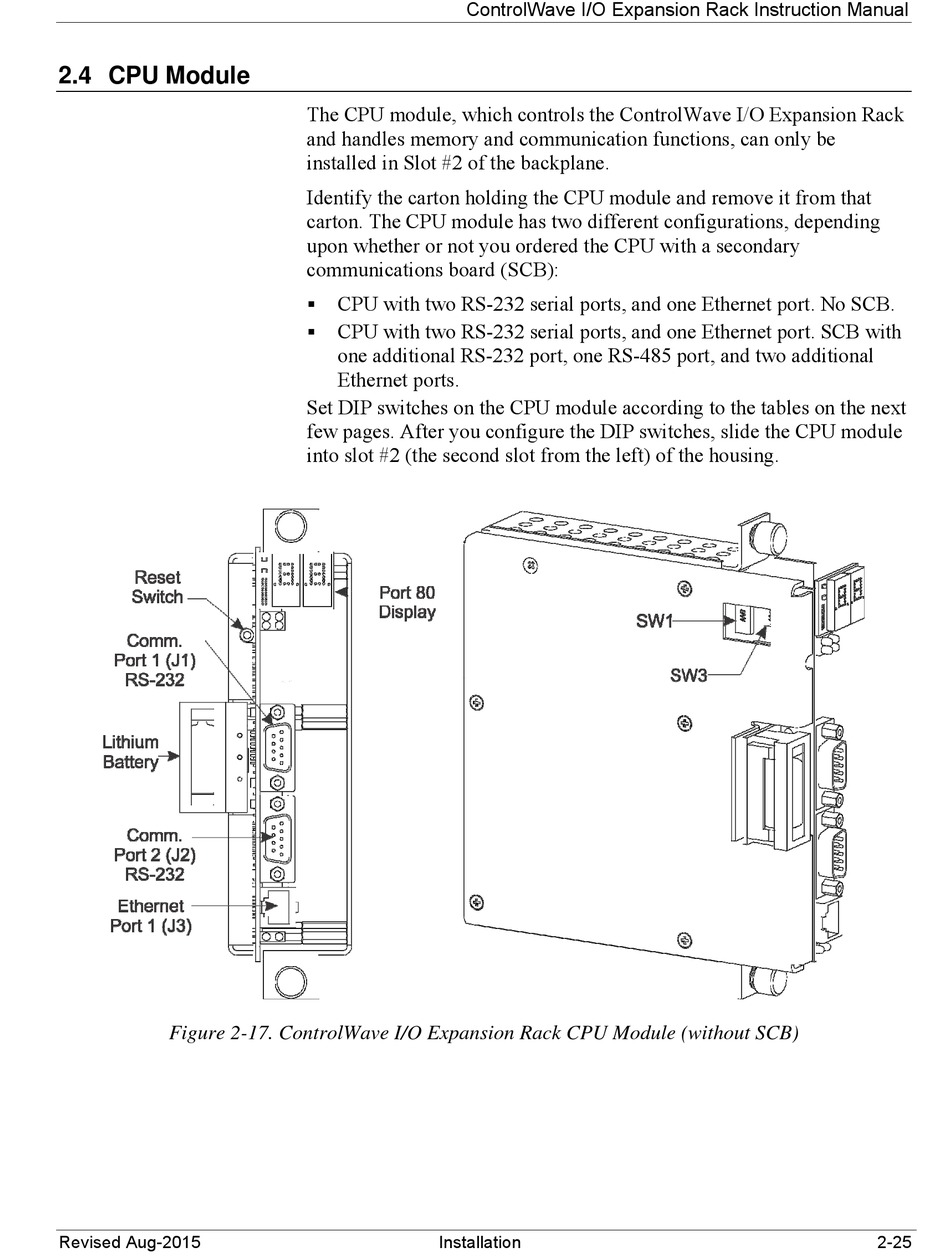

Figure 2-17. ControlWave I/O Expansion Rack CPU Module (without SCB)
Revised Aug-2015
ControlWave I/O Expansion Rack Instruction Manual
The CPU module, which controls the ControlWave I/O Expansion Rack
and handles memory and communication functions, can only be
installed in Slot #2 of the backplane.
Identify the carton holding the CPU module and remove it from that
carton. The CPU module has two different configurations, depending
upon whether or not you ordered the CPU with a secondary
communications board (SCB):
CPU with two RS-232 serial ports, and one Ethernet port. No SCB.

CPU with two RS-232 serial ports, and one Ethernet port. SCB with

one additional RS-232 port, one RS-485 port, and two additional
Ethernet ports.
Set DIP switches on the CPU module according to the tables on the next
few pages. After you configure the DIP switches, slide the CPU module
into slot #2 (the second slot from the left) of the housing.
Installation 2-25
