ControlWave I/O Expansion Rack Instruction Manual
3.2 Status LEDs
3.3 Wiring
3-4

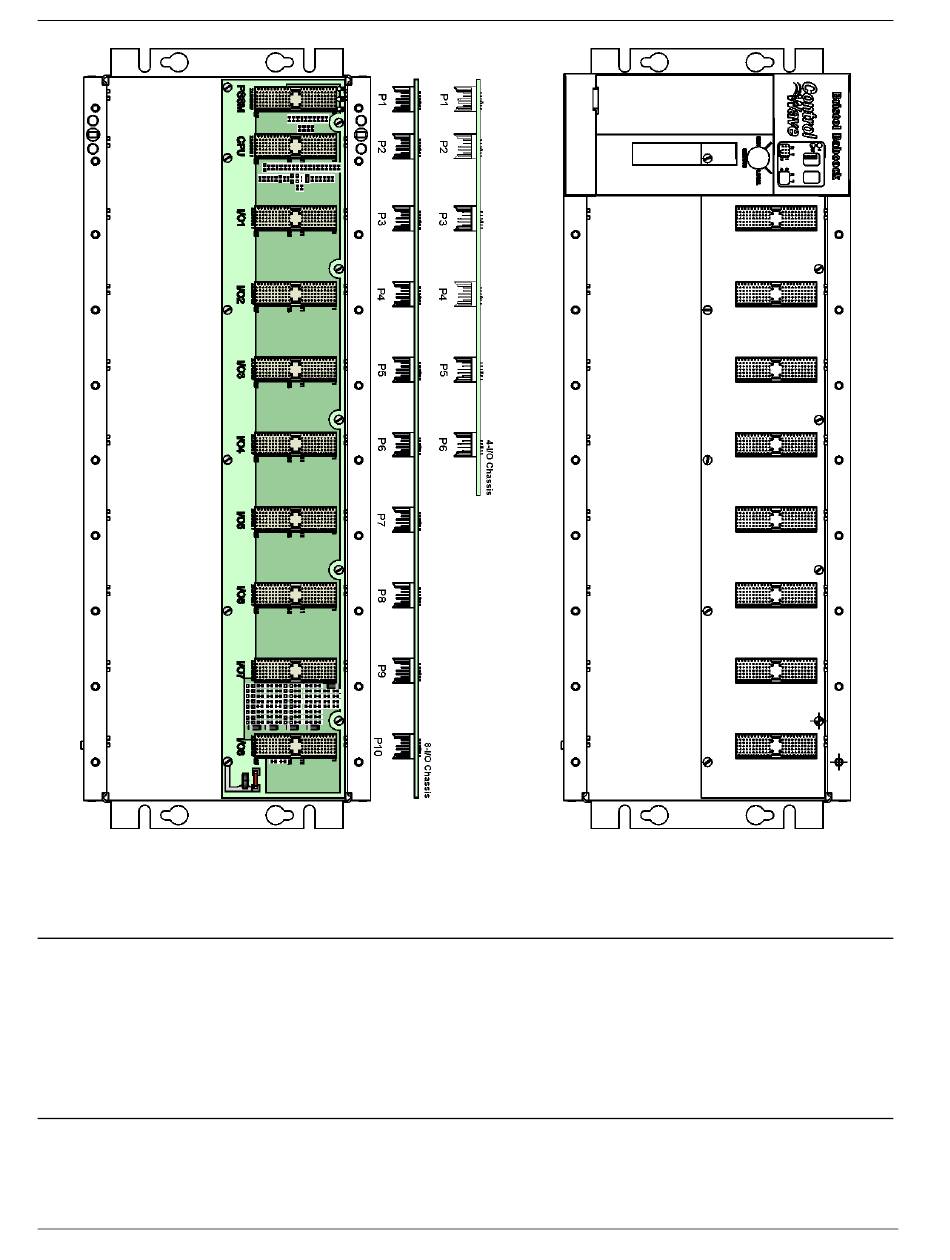

Figure 3-2. ControlWave Chassis Slot Assignments (with/without bezel
shown)
Most of the I/O modules include one or more light emitting diodes
(LEDs) to provide diagnostic or status indications.
See Chapter 5 for information on the different LEDs.
With a few exceptions (noted in the module descriptions), I/O modules
support either "local termination" (field wiring connected directly to the
module's removable terminal blocks) or "remote termination" (field
I/O Modules
Revised Aug-2015
Need help?
Do you have a question about the ControlWave and is the answer not in the manual?
