ControlWave I/O Expansion Rack Instruction Manual
3-2
to the chassis; this establishes a low resistance path between the I/O
module and chassis ground.
5. Install the local or remote terminal block assembly (with wiring
harness) onto the I/O module (turning the quarter turn fasteners
(clockwise)).
6. Replace the module's terminal housing assembly.

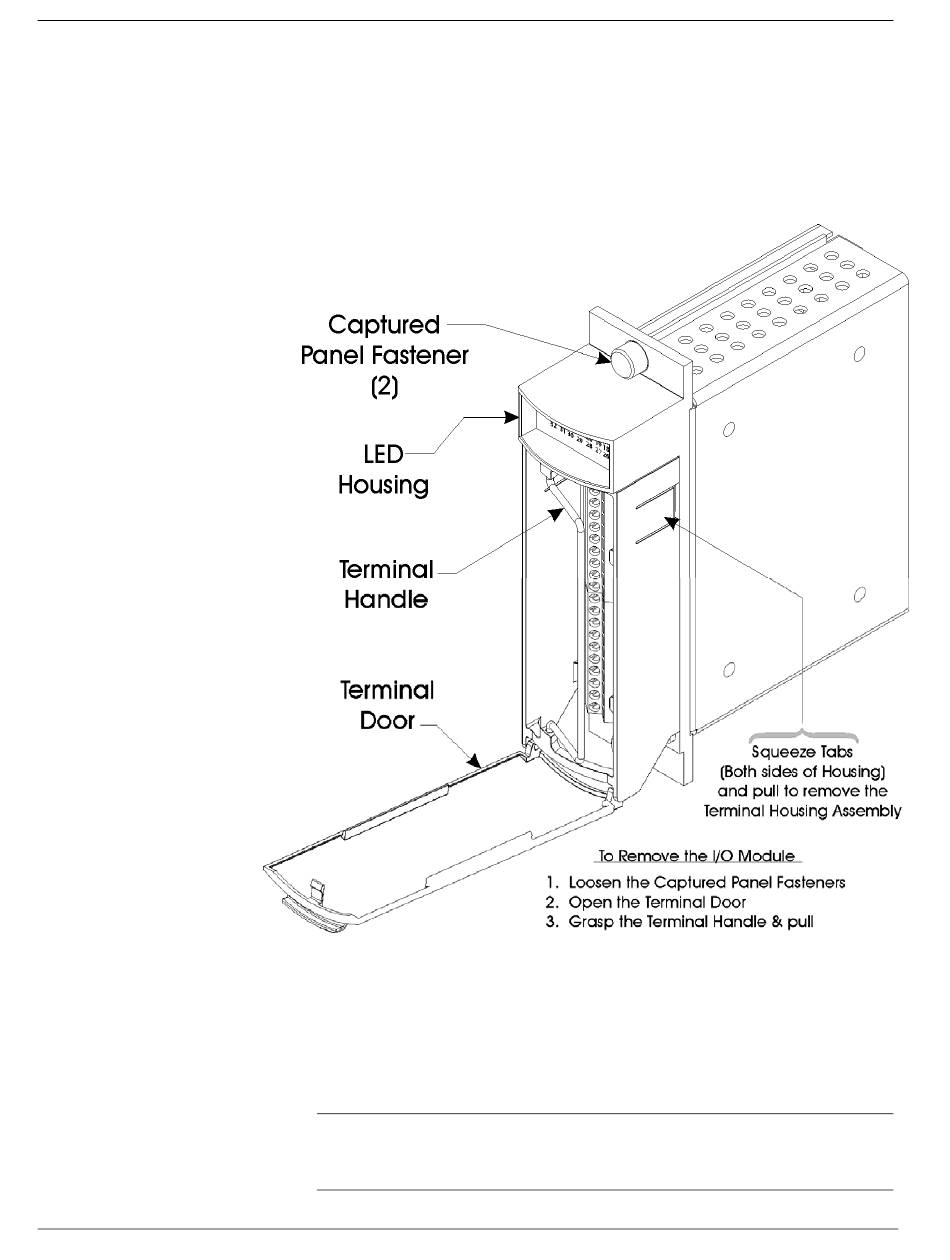

Figure 3-1. Terminal Housing Assembly Removal
7. Using a PC running ControlWave Designer and OpenBSI software,
configure the ControlWave project running in the host
ControlWave controller to reference the new I/O modules in the
I/O rack, and download the revised ControlWave project into the
host controller.
Note: This step is beyond the scope of this manual. Refer to the
ControlWave Designer Programmer's Handbook (D5125)
for further instructions.
I/O Modules Revised Aug-2015
