1.1 Scope of the Manual

1.2 Physical Description

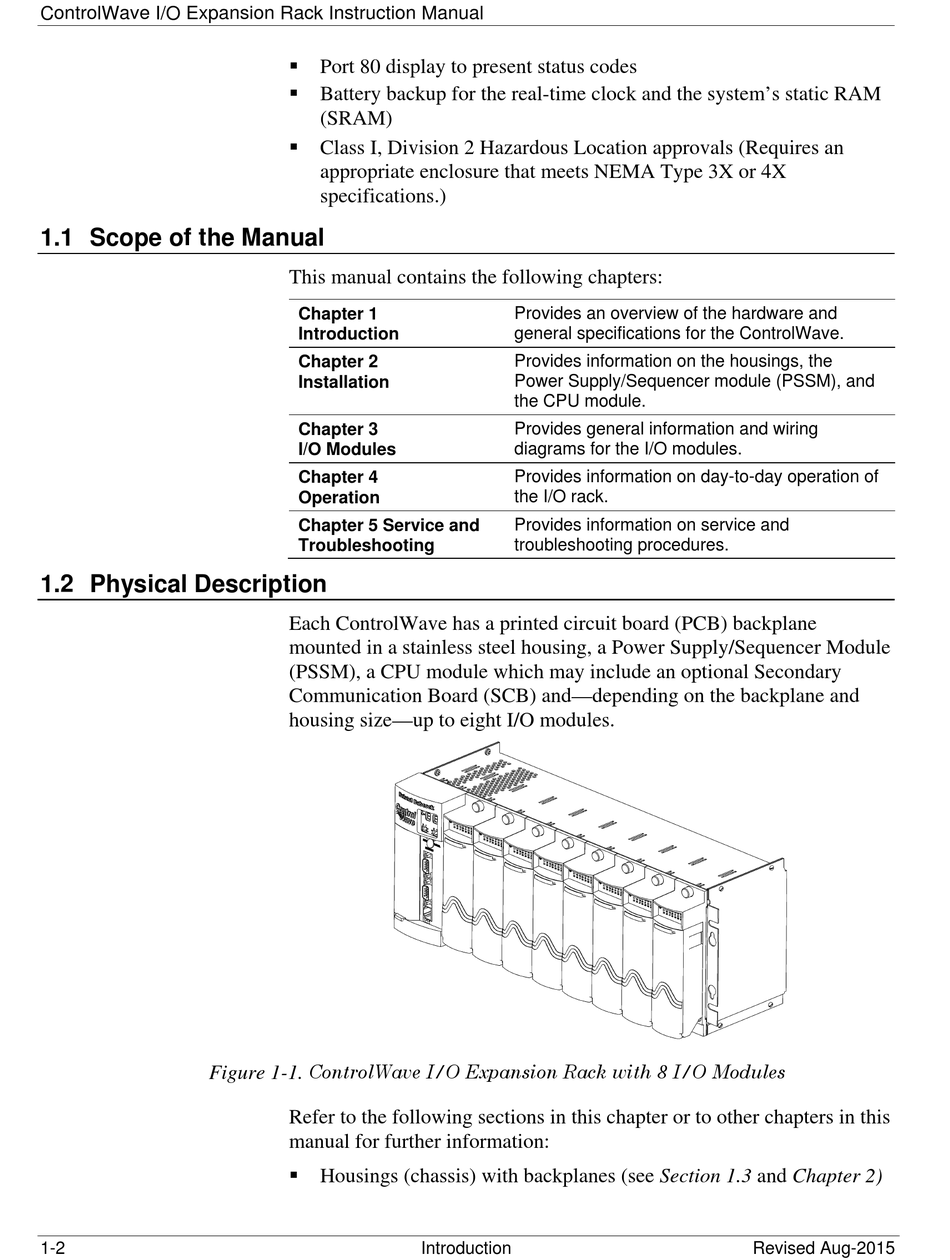

Figure 1-1.
1-2
 Port 80 display to present status codes
 Battery backup for the real-time clock and the system's static RAM
(SRAM)
 Class I, Division 2 Hazardous Location approvals (Requires an
appropriate enclosure that meets NEMA Type 3X or 4X
specifications.)
This manual contains the following chapters:
Chapter 1
Introduction
Chapter 2
Installation
Chapter 3
I/O Modules
Chapter 4
Operation
Chapter 5 Service and
Troubleshooting
Each ControlWave has a printed circuit board (PCB) backplane
mounted in a stainless steel housing, a Power Supply/Sequencer Module
(PSSM), a CPU module which may include an optional Secondary
Communication Board (SCB) and—depending on the backplane and
housing size—up to eight I/O modules.
ControlWave I/O Expansion Rack with 8 I/O Modules
Refer to the following sections in this chapter or to other chapters in this
manual for further information:
 Housings (chassis) with backplanes (see Section 1.3 and Chapter 2)
Introduction
Provides an overview of the hardware and
general specifications for the ControlWave.
Provides information on the housings, the
Power Supply/Sequencer module (PSSM), and
the CPU module.
Provides general information and wiring
diagrams for the I/O modules.
Provides information on day-to-day operation of
the I/O rack.
Provides information on service and
troubleshooting procedures.
