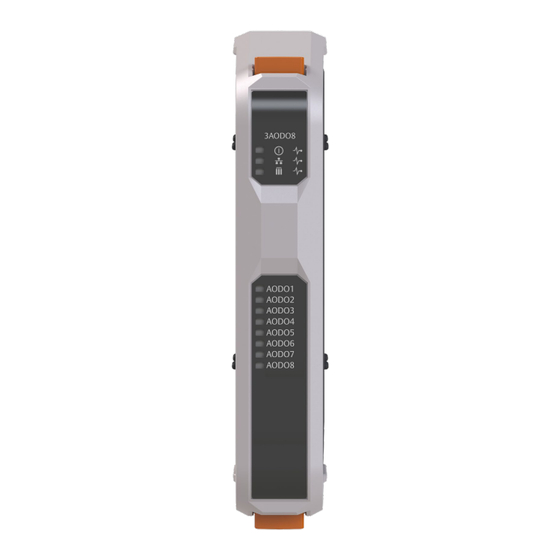

- Page 1 Emerson FB3000 RTU 8-Channel Output Module Field Installation Guide D301917X012 October 2022 Emerson FB3000 RTU 8-Channel Output Module (3AODO8, OTSG8, OUT08) Field Installation Guide Energy and Transportation Solutions...
-
Page 2: Ethernet Connectivity
Emerson office. You can also receive the same quality training via our live, interactive Emerson Virtual Classroom and save on travel costs. For our complete schedule and further information, contact the Energy and Transportation Solutions Training Department at 800-338-8158 or email us at education@emerson.com. - Page 3 When installing an all new module in an existing extended chassis, ensure its addition does not exceed the maximum number of modules allowed for your power and loop power voltage configuration. See Extended Backplane Supported Configurations on page CSA-3 in the Emerson FB3000 RTU Instruction Manual (D301851X012) for details.
- Page 4 October 2022 Removing/Replacing the 8-Channel Output Logic Module (3AODO8) 1. Squeeze the orange tabs at the top and bottom of the I/O module (3AODO8) to release the module and slide it straight out of the slot. Removing an I/O Module 2.
- Page 5 Emerson FB3000 RTU 8-Channel Output Module Field Installation Guide D301917X012 October 2022 Removing/Replacing the 8-Channel Output Personality Module (3OTSG8) If you are replacing an existing personality module that is already wired with an identical personality module, and if there is no fault with the terminal block, leave wiring connected to the terminal block, and disconnect the terminal block from the personality module by gently rocking the terminal block from side to side until it pops out.
- Page 6 Emerson FB3000 RTU 8-Channel Output Module Field Installation Guide D301917X012 October 2022 Press the new replacement personality module into the slot until it is properly seated, then tighten the captive fastening screw. Replacing a Personality Module If you replaced an existing personality module with an identical replacement, and were able to re-use the terminal blocks, reattach the terminal block by pressing it into place;...
- Page 7 Emerson FB3000 RTU 8-Channel Output Module Field Installation Guide D301917X012 October 2022 Wiring the 8-Channel Output Personality Module (3OTSG8) Each channel can be individually configured as either an analog output or a digital output. Analog Outputs (3AODO8/3OTSG8/OUTO8) On the 8-channel output module, when a channel is configured as an analog output, it has the...
- Page 8 Emerson FB3000 RTU 8-Channel Output Module Field Installation Guide D301917X012 October 2022 The figure, below, shows how to wire the analog output. In the figure, AO_4 is configured for current output mode and is shown connected to an external current field device. AO_7 is configured for voltage output mode and is shown connected to an external voltage field device.
- Page 9 Emerson FB3000 RTU 8-Channel Output Module Field Installation Guide D301917X012 October 2022 Digital Outputs (3AODO8/3OTSG8/OUT08) When a channel on the 8-channel output module is configured as a digital output, it has the following characteristics: Internally, the DO acts as a simple contact closure. When 1 (ON) the contact closes, when ...
- Page 10 Emerson FB3000 RTU 8-Channel Output Module Field Installation Guide D301917X012 October 2022 The figure, below, shows how to wire a digital output (DO_02) to drive an inductive load (such as a relay coil). Digital Output (DO) Wiring Suppression Diode Relay coil or inductive load...
