Configurations
Setting Jumpers Each input has a jumper to enable/disable debounce. Enabling debounce
Revised Aug-2015
The UDI module (general part number 396362-XX-X) has the following
configurations:
Table 3-12. UDI Module Configurations
Part Number
396362-02-8
396362-12-5
activates filters that reduce spurious pulses caused by relay contact bounce.
Figure 3-24 shows the location of jumpers on the module.
1.820"
Housing Ass'y.
Front

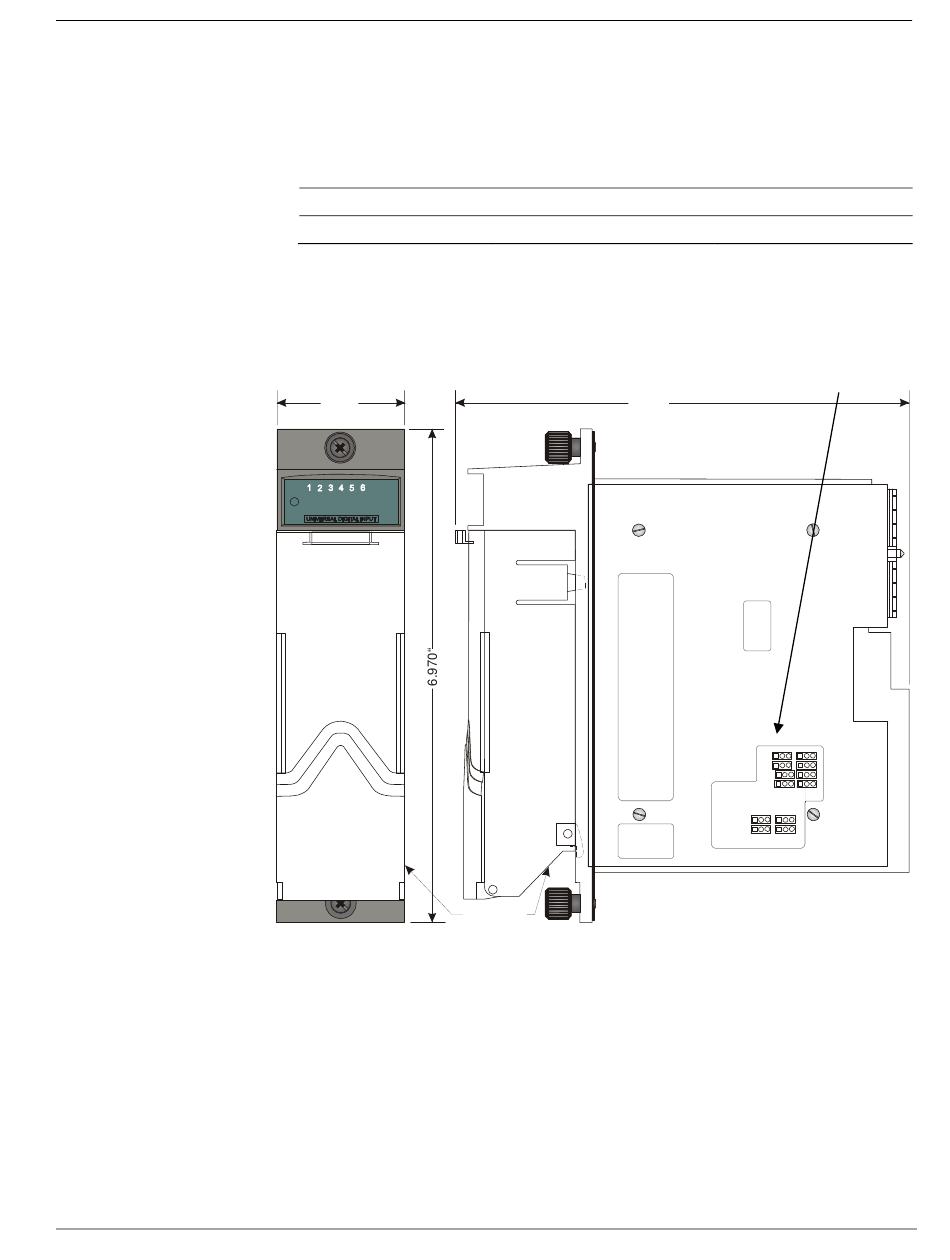

Figure 3-24. - UDI Module -Right Side View -Jumper Locations
I/O Modules
ControlWave I/O Expansion Rack Instruction Manual
Number of UDIs
6
6
6.457"
Terminal
Termination Connector
local
remote
Jumper
locations
1 1
W5 W1
W6 W2
W7 W3
W8 W4
1 1
W9
1
W12
W11 W10
1 1
Right Side
3-31
