ControlWave I/O Expansion Rack Instruction Manual
2-8

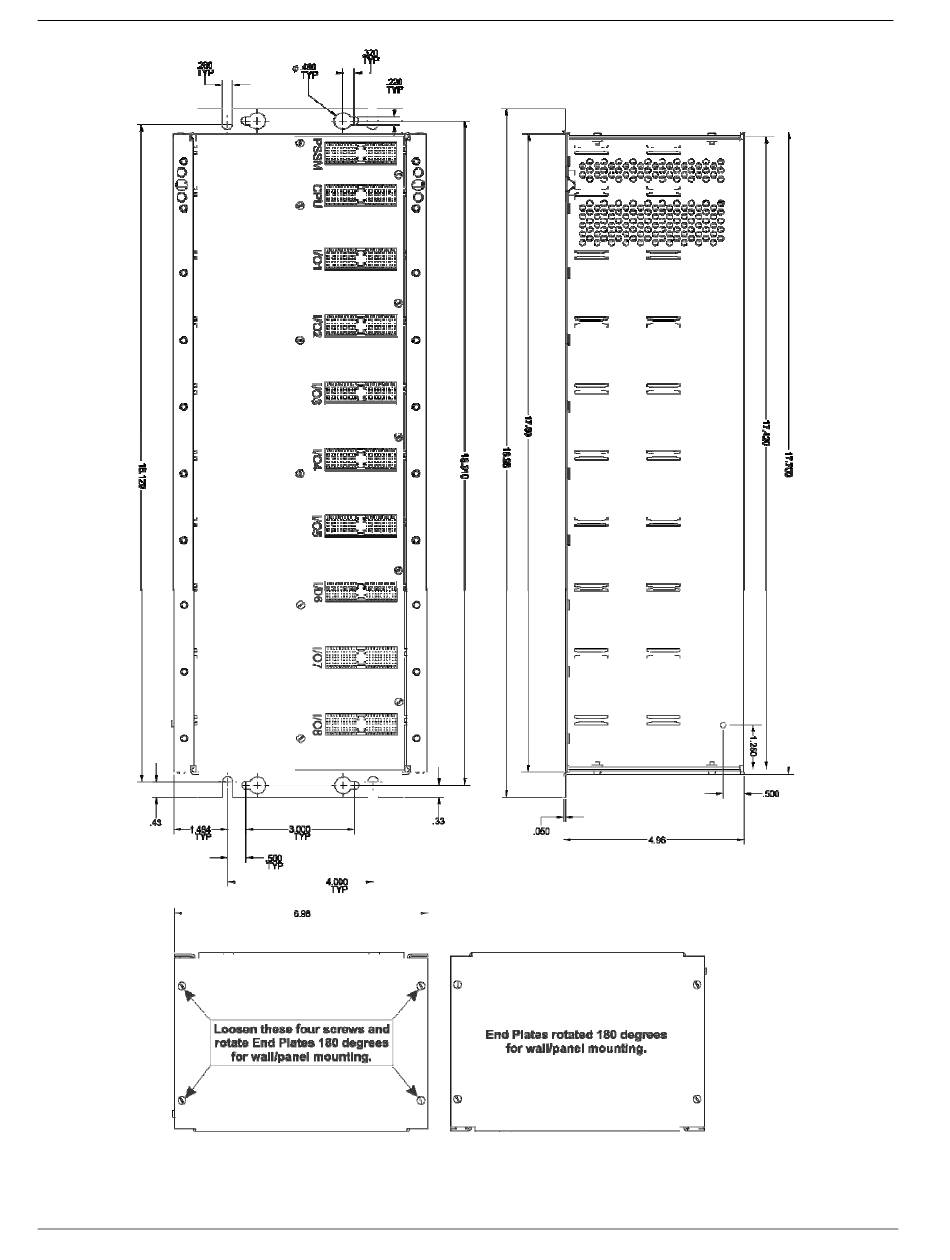

Figure 2-5. 8-I/O Module ControlWave I/O Rack - Mounting Diagram
(dimensions in inches)
Installation
Revised Aug-2015
