SW1 Setting
Revised Aug-2015
Function
Core Updump
4
(see Section
3.6)
SRAM Control
5
Redundancy
6
Enable /
Disable
Unit A / Unit B
7
Enable
8
WINDIAG

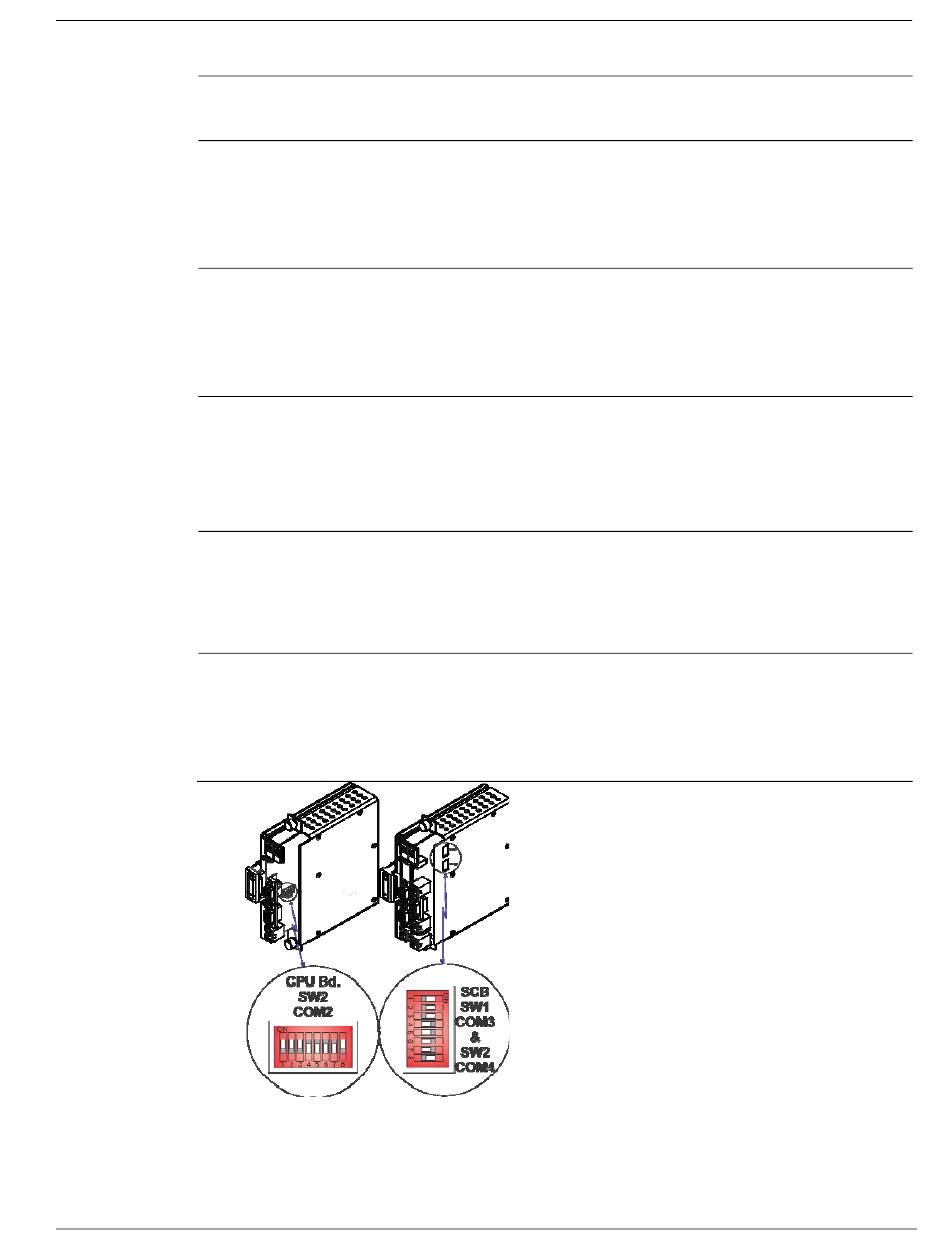

Figure 2-19. CPU Module Communication Port Switches
ControlWave I/O Expansion Rack Instruction Manual
Mode
memory; factory default)
OFF (Disable soft switch configuration and use factory
defaults)
Causes the ControlWave to perform a core updump,
provided you have set the mode switch (SW3-3) to
Recovery mode. Values are:
ON (Disables core updump; factory default)
OFF (Core updump via PSSM Run/Remote/Local switch
or mode switch SW3-3)
Manages SRAM contents following a low power situation
or a power outage. Values are:
ON (Retain values in SRAM during restarts; factory
default)
OFF (Reinitialize SRAM) – Data in SRAM lost during
power outage or re-start.
Specifies whether this ControlWave is part of a redundant
pair. Values are:
ON (Redundancy Disabled. Not part of redundant pair;
factory default)
OFF (Redundancy Enabled. This ControlWave is one of
two in a redundant pair)
Specifies whether this ControlWave is the "A" or "B" unit in
a redundant pair. Values are:
ON ("A" unit in the redundant pair; factory default)
OFF ("B" unit in the redundant pair)
Note: If SW1-6 is ON, the system ignores SW1-7.
Suspends normal operation and allows diagnostic
routines. Values are:
ON (Permits normal system operation, including the boot
project, and disables the WINDIAG diagnostics from
running; factory default)
OFF (Allow WINDIAG to run test; disable boot project.)
Installation 2-27
