Emerson ControlWave Instruction Manual page 57

Setting Jumpers You must set configuration jumpers for each DI. according to Table 3-
Jumper Purpose
WI Configures DI1
W2-W32 Configures DI2 through DI32 (respectively)
Wiring the Module Figure 3-6 shows field wiring assignments associated with locally
Revised Aug-2015
ControlWave I/O Expansion Rack Instruction Manual
for use in dry contact applications contain a +21 Vdc isolated power
supply powered through an output of the hot swap circuitry which
receives power originating on the backplane.
3. For a 16DI module, use W1 through W16, for a 32DI module, use
W1 through W32.

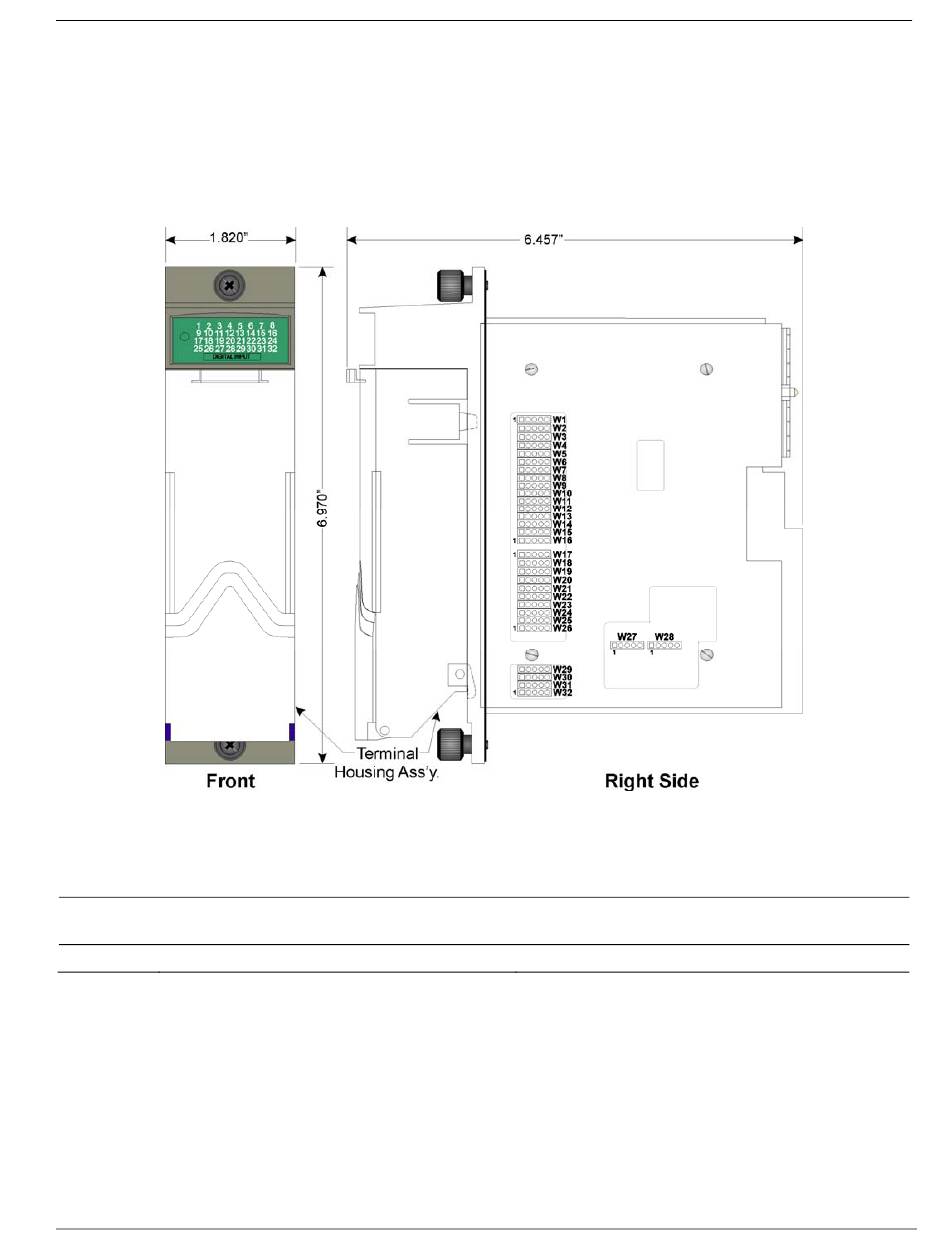

Figure 3-5. DI Module -Right Side View - Jumper Locations
Table 3-3. Jumper Assignments: DI Module
terminated DI modules; Figure 3-9 shows field wiring assignments
associated with remotely terminated DI modules. Figure 3-10 shows
an optional remote termination module with built-in discrete relay
module that supports input from 120 Vac DIs. The special remote
termination module (with built-in discrete relay module) interfaces
with an externally sourced DI module.
I/O Modules
Description
Pins 2-3 & 4-5 installed = External Power DI
Pins 1-2 & 3-4 installed = Internal Source DI
Same as W1
3-9
