ControlWave I/O Expansion Rack Instruction Manual
3-16
FUSES: F0 to F7: 1A, F+: 2A

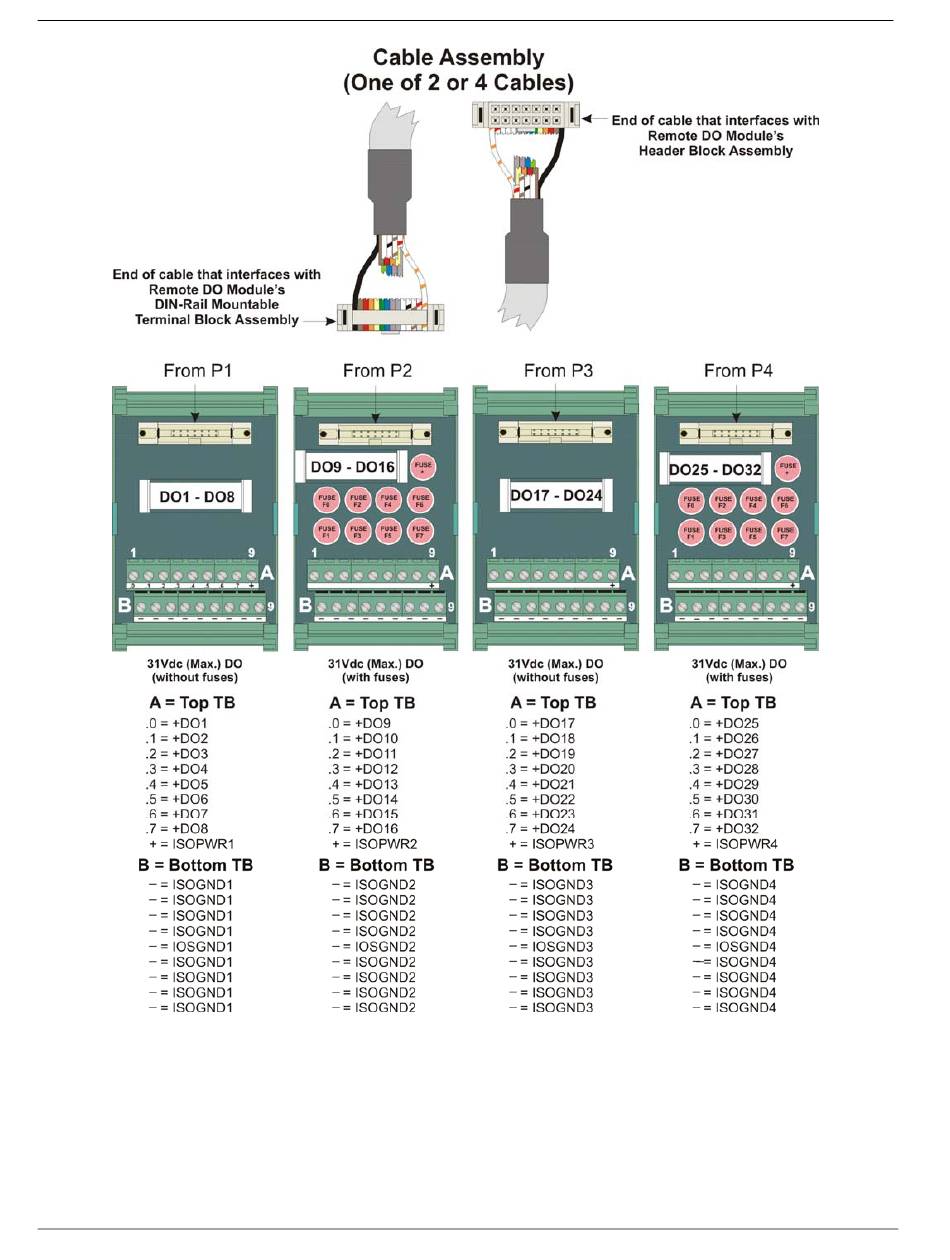

Figure 3-13. Remote DIN-Rail Mountable Terminal Block Assembly
for Open Source Isolated DO Operation
Assignments
I/O Modules
Revised Aug-2015
