Software Configuration To use data from any ControlWave UDI module in the rack you must
Revised Aug-2015
ControlWave I/O Expansion Rack Instruction Manual
use ControlWave Designer's I/O Configurator to modify the
ControlWave project in the host controller to add an ER_HSC12 board
and then configure it.
The I/O Configurator is where you specify the usage for each input
using the Select Filter list box.

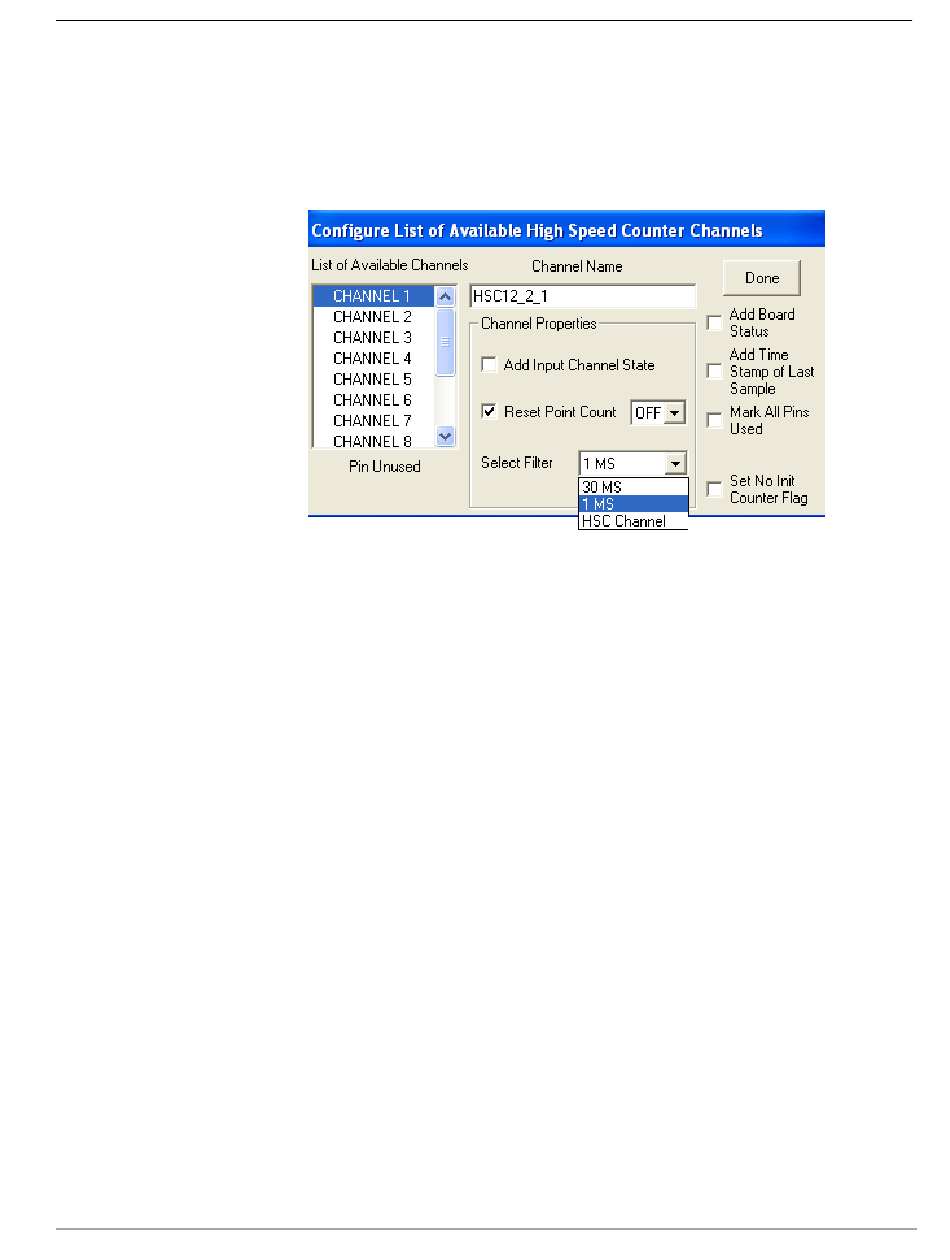

Figure 3-29. Selecting Input Type in ControlWave Designer I/O
Configurator
Choose one of the following:
"HSC Channel"
"1 MS"
"30 MS"
See the ControlWave Designer Programmer's Handbook (D5125) for
more information. That same manual includes an I/O Mapping section
that describes, for advanced users, the I/O map for this module.
I/O Modules
to select a 20 microsecond delay for 10 kHz high
speed counter applications.
to select a 1 millisecond delay for a low speed
counter application.
to select a 30 millisecond delay for a polled
input. This is for general purpose inputs or
contacts where contact bounce may apply.
