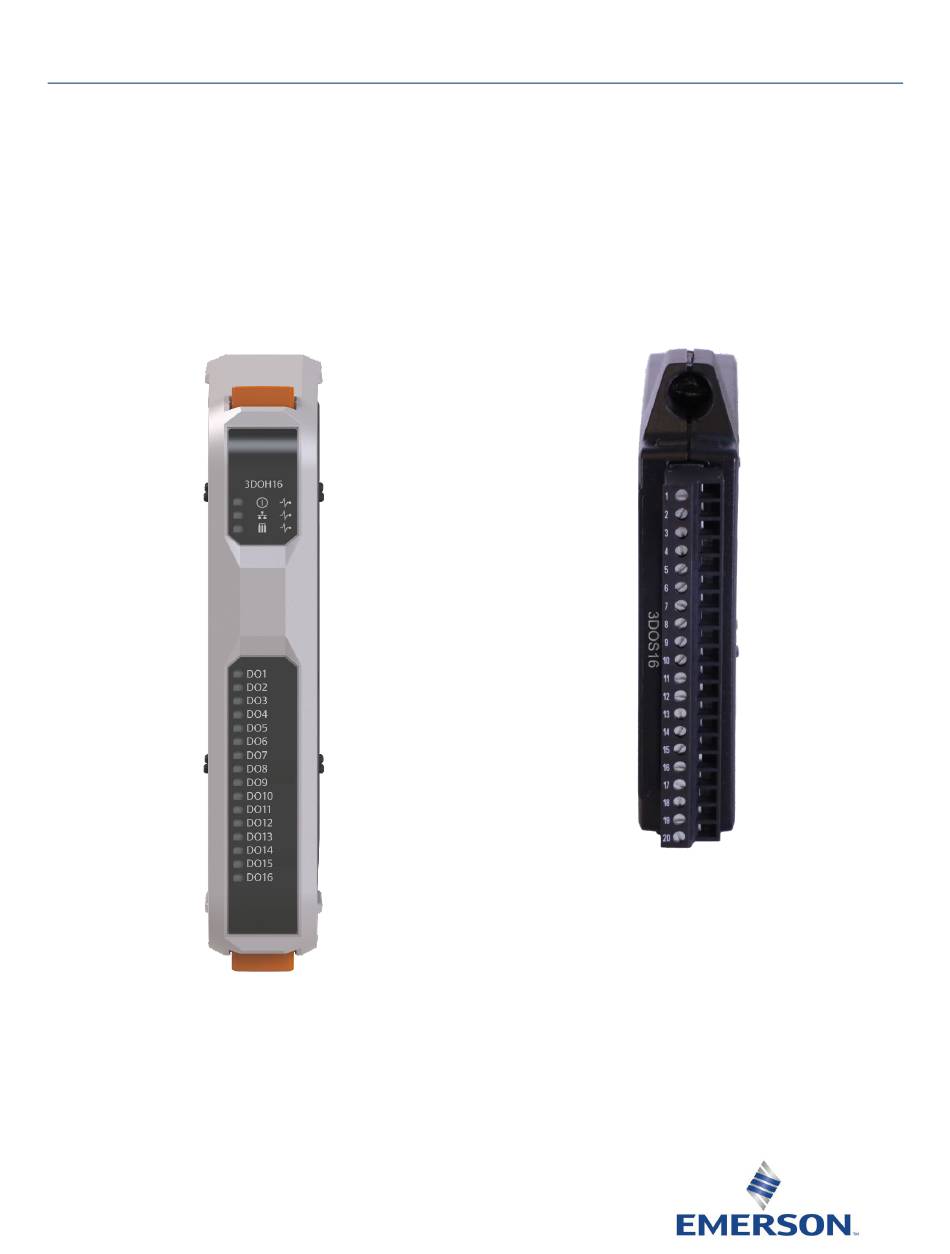

FB3000 RTU 16-Channel Digital Output Module Field Installation Guide
D301956X012
November 2024
FB3000 RTU 16-Channel Digital Output
Module (3DOH16, 3DOS16, DOT16) Field
Installation Guide

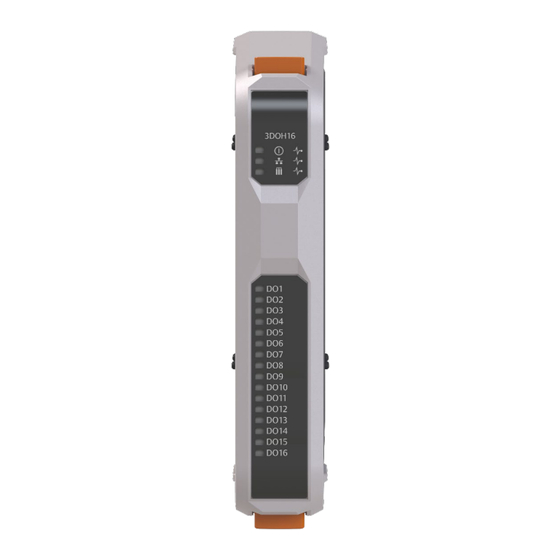

3DOH16 Logic Module
3DOS16 Personality Module
Energy and Transportation Solutions

Advertisement

loading
Need help?

Need help?

Do you have a question about the FB3000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Emerson FB3000

  • Page 1 FB3000 RTU 16-Channel Digital Output Module Field Installation Guide D301956X012 November 2024 FB3000 RTU 16-Channel Digital Output Module (3DOH16, 3DOS16, DOT16) Field Installation Guide 3DOH16 Logic Module 3DOS16 Personality Module Energy and Transportation Solutions...
  • Page 2 Emerson office. You can also receive the same quality training via our live, interactive Emerson Virtual Classroom and save on travel costs.
  • Page 3 FB3000 RTU 16-Channel Digital Output Module Field Installation Guide D301956X012 November 2024 Considerations when Removing/Replacing the 16-Channel Digital Output Module (3DOH16/3DOS16/DOT16) The 16-Channel Digital Output Module consists of: A logic module (3DOH16) which resides in the upper position of the slot.
  • Page 4 When installing an all new module in an existing extended chassis, ensure its addition does not exceed the maximum number of modules allowed for your power and loop power voltage configuration. See Extended Backplane Supported Configurations on page CSA-3 in the Emerson FB3000 RTU Instruction Manual (D301851X012) for details.
  • Page 5 FB3000 RTU 16-Channel Digital Output Module Field Installation Guide D301956X012 November 2024 Removing/Replacing the 16-Channel Digital Output Logic Module (3DOH16) 1. Squeeze the orange tabs at the top and bottom of the logic module (3DOH16) to release the module and slide it straight out of the slot.
  • Page 6 FB3000 RTU 16-Channel Digital Output Module Field Installation Guide D301956X012 November 2024 Removing/Replacing the 16-Channel Digital Output Personality Module (3DOS16) When replacing an existing personality module that is already wired with an identical personality module, leave wiring connected to the terminal block, and disconnect the terminal block from the personality module by gently rocking the terminal block from side to side until it pops out.
  • Page 7 FB3000 RTU 16-Channel Digital Output Module Field Installation Guide D301956X012 November 2024 Press the new replacement personality module into the slot until it is properly seated, then tighten the captive fastening screw. Replacing a Personality Module If you replaced an existing personality module with an identical replacement, reattach the terminal block by pressing it into place.
  • Page 8 FB3000 RTU 16-Channel Digital Output Module Field Installation Guide D301956X012 November 2024 Wiring the 16-Channel Digital Output Personality Module (3DOS16) Digital Outputs (3DOH16/3DOS16/DOT16) Internally, the DO acts as a simple contact closure. When 1 (ON) the contact closes,  when 0 (OFF) the contact opens. A simple contact closure conducts current in either direction.
  • Page 9 FB3000 RTU 16-Channel Digital Output Module Field Installation Guide D301956X012 November 2024 The figure, below, shows how to wire a digital output (DO2) to drive an inductive load (such as a relay coil) where the load sinks current to common.
  • Page 10 FB3000 RTU 16-Channel Digital Output Module Field Installation Guide D301956X012 November 2024 The figure, below, shows how to wire a digital output (DO5) to drive an inductive load (such as a relay coil) where current is sourced from the DO.
  • Page 11 FB3000 RTU 16-Channel Digital Output Module Field Installation Guide D301956X012 November 2024...
  • Page 12 Emerson and the Singapore 128461 Emerson logo are trademarks and service marks of Emerson Electric Co. All other T +65 6777 8211| F +65 6777 0947 marks are the property of their respective owners.
