2.2.2 Color Coding of Slot Connectors

Revised Aug-2015
ControlWave I/O Expansion Rack Instruction Manual
Notes:
There are many different types of I/O modules available. Chapter

3 contains detailed instructions on each I/O module.
Universal Digital Input (UDI) modules can only reside in the first

four I/O slots. One or more bezel assemblies; each bezel covers
two I/O modules.
A color tab on each backplane connector matches the color on the
module which you can place in that slot.
PSSM goes in the first slot (Yellow tab)

CPU goes in the second slot (Blue tab)

I/O modules go in any other slot (Green tab)


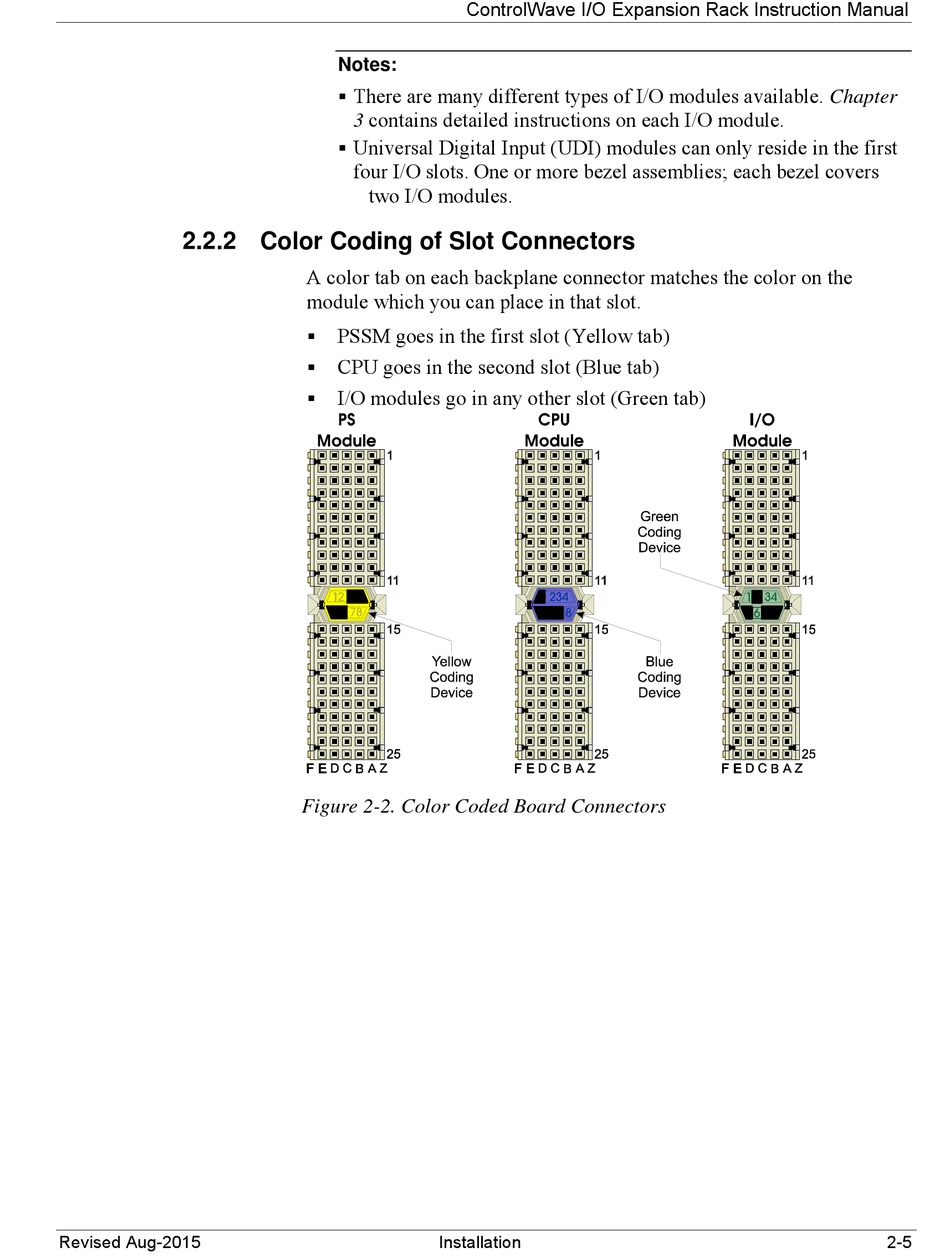

Figure 2-2. Color Coded Board Connectors
