ControlWave I/O Expansion Rack Instruction Manual

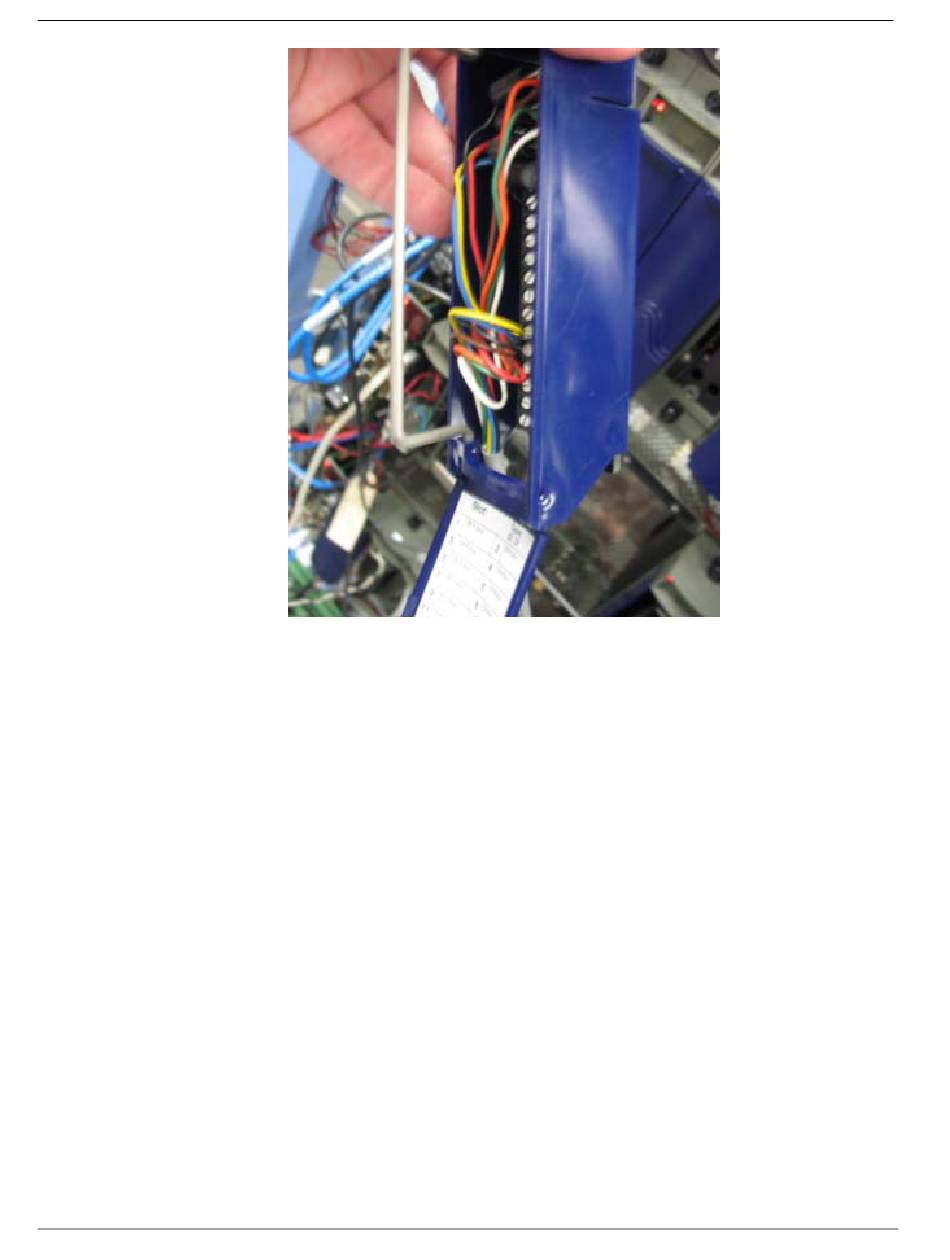

Figure 5-8. Terminal Block Board and Terminal Housing Assembly Separated from the Rest of the
5-10
Module
Again, assuming you want to preserve your existing wiring to
5.
the terminal blocks, because you haven't wired to the terminal
blocks on the replacement module, remove the terminal block
board and terminal housing assembly from the new replacement
module.
Carefully slide the new module into the same I/O slot in the
6.
housing and tighten the top and bottom capture fasteners, but not
too tight.
Service & Troubleshooting Revised Aug-2015
