Caution
WARNING

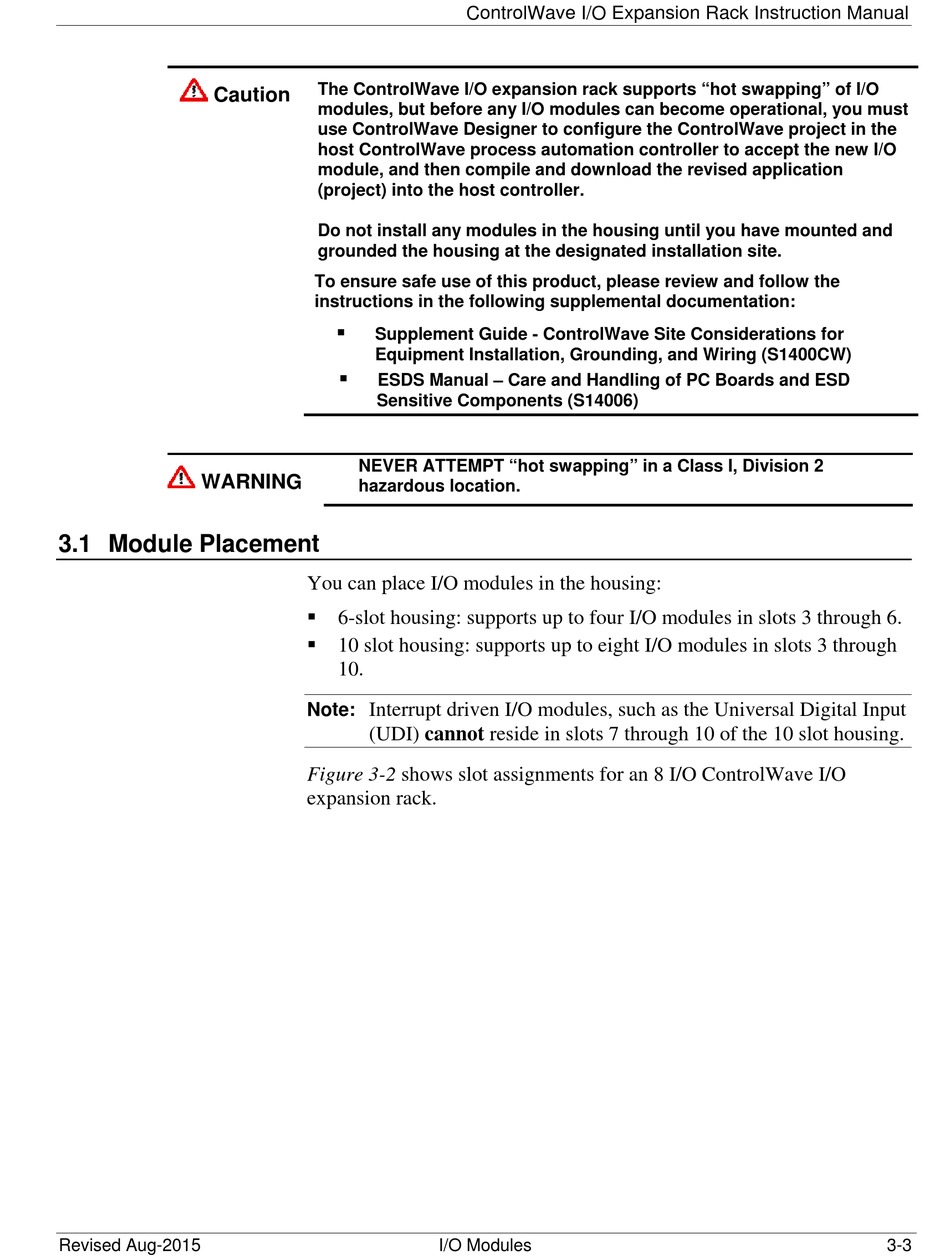

3.1 Module Placement

Revised Aug-2015
ControlWave I/O Expansion Rack Instruction Manual
The ControlWave I/O expansion rack supports "hot swapping" of I/O
modules, but before any I/O modules can become operational, you must
use ControlWave Designer to configure the ControlWave project in the
host ControlWave process automation controller to accept the new I/O
module, and then compile and download the revised application
(project) into the host controller.
Do not install any modules in the housing until you have mounted and
grounded the housing at the designated installation site.
To ensure safe use of this product, please review and follow the
instructions in the following supplemental documentation:

Supplement Guide - ControlWave Site Considerations for
Equipment Installation, Grounding, and Wiring (S1400CW)

ESDS Manual – Care and Handling of PC Boards and ESD
Sensitive Components (S14006)
NEVER ATTEMPT "hot swapping" in a Class I, Division 2
hazardous location.
You can place I/O modules in the housing:
 6-slot housing: supports up to four I/O modules in slots 3 through 6.
 10 slot housing: supports up to eight I/O modules in slots 3 through
10.
Interrupt driven I/O modules, such as the Universal Digital Input
Note:
(UDI) cannot reside in slots 7 through 10 of the 10 slot housing.
Figure 3-2 shows slot assignments for an 8 I/O ControlWave I/O
expansion rack.
I/O Modules 3-3
