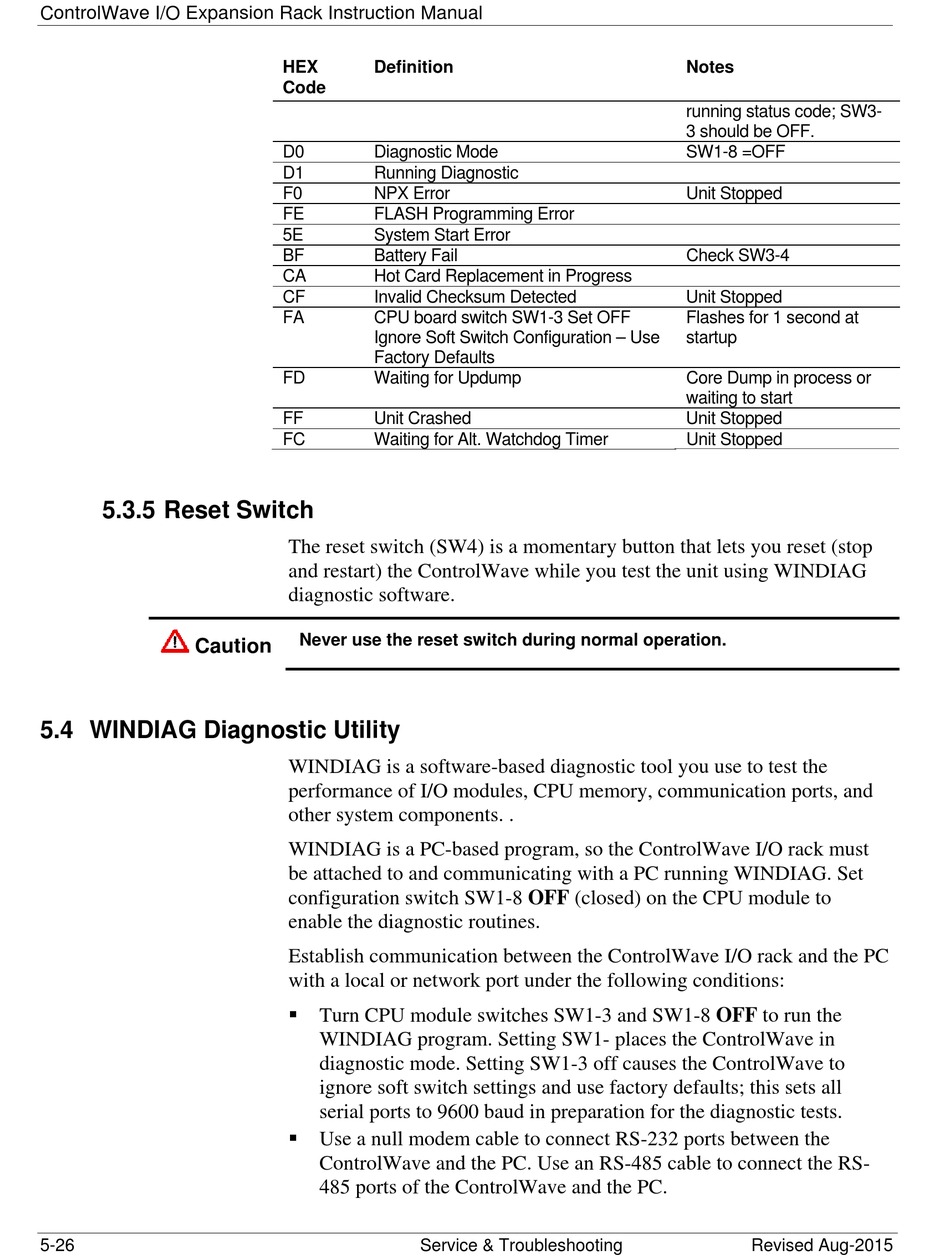

5.3.5 Reset Switch

Caution

5.4 WINDIAG Diagnostic Utility

5-26
HEX Definition
Code
D0 Diagnostic Mode
D1 Running Diagnostic
F0 NPX Error
FE FLASH Programming Error
5E System Start Error
BF Battery Fail
CA Hot Card Replacement in Progress
CF Invalid Checksum Detected
FA CPU board switch SW1-3 Set OFF
Ignore Soft Switch Configuration – Use
Factory Defaults
FD Waiting for Updump
FF Unit Crashed
FC Waiting for Alt. Watchdog Timer
The reset switch (SW4) is a momentary button that lets you reset (stop
and restart) the ControlWave while you test the unit using WINDIAG
diagnostic software.
Never use the reset switch during normal operation.
WINDIAG is a software-based diagnostic tool you use to test the
performance of I/O modules, CPU memory, communication ports, and
other system components. .
WINDIAG is a PC-based program, so the ControlWave I/O rack must
be attached to and communicating with a PC running WINDIAG. Set
configuration switch SW1-8 OFF (closed) on the CPU module to
enable the diagnostic routines.
Establish communication between the ControlWave I/O rack and the PC
with a local or network port under the following conditions:
 Turn CPU module switches SW1-3 and SW1-8 OFF to run the
WINDIAG program. Setting SW1- places the ControlWave in
diagnostic mode. Setting SW1-3 off causes the ControlWave to
ignore soft switch settings and use factory defaults; this sets all
serial ports to 9600 baud in preparation for the diagnostic tests.
 Use a null modem cable to connect RS-232 ports between the
ControlWave and the PC. Use an RS-485 cable to connect the RS-
485 ports of the ControlWave and the PC.
Service & Troubleshooting
Notes
running status code; SW3-
3 should be OFF.
SW1-8 =OFF
Unit Stopped
Check SW3-4
Unit Stopped
Flashes for 1 second at
startup
Core Dump in process or
waiting to start
Unit Stopped
Unit Stopped
