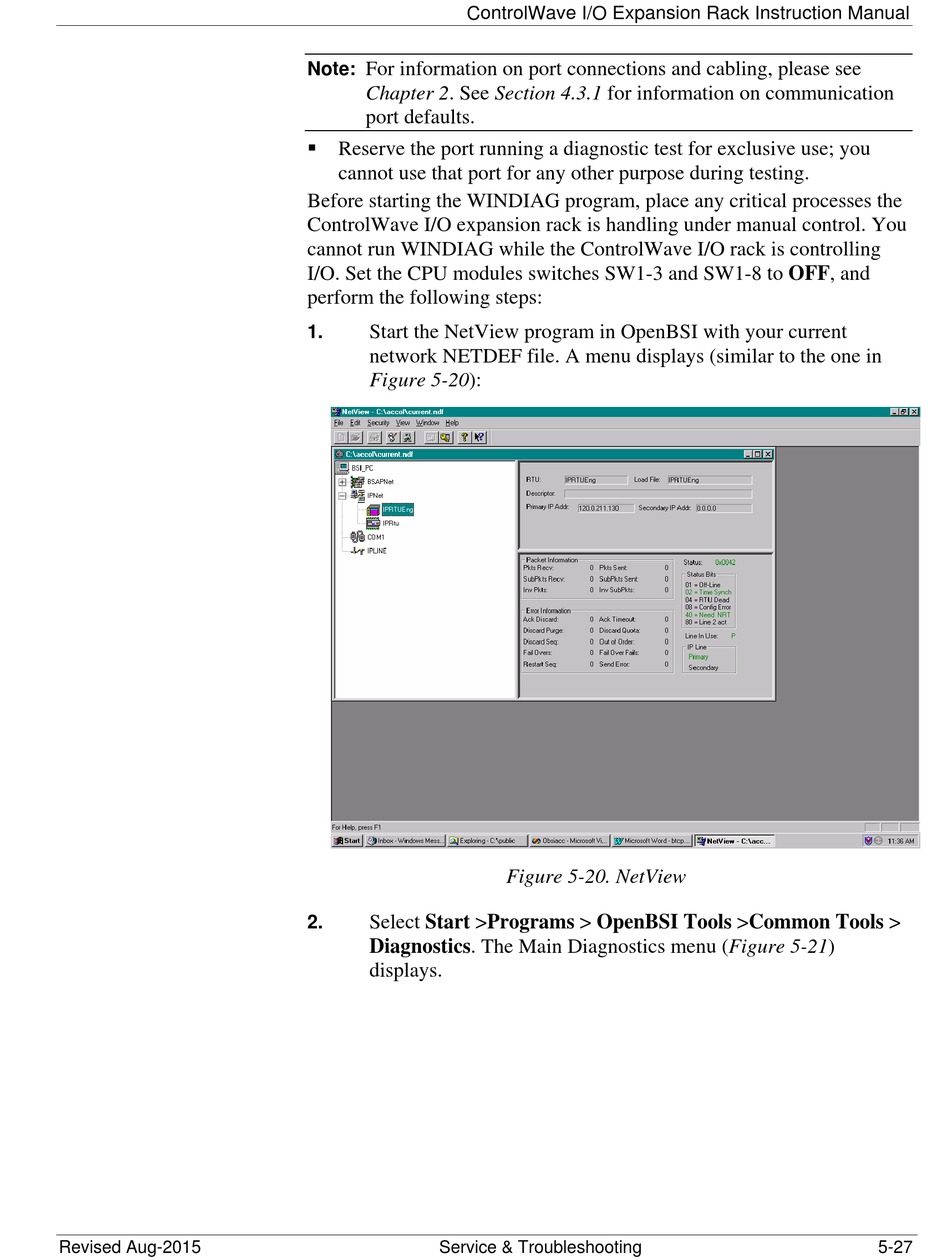

ControlWave I/O Expansion Rack Instruction Manual
Note: For information on port connections and cabling, please see
Chapter 2. See Section 4.3.1 for information on communication
port defaults.
 Reserve the port running a diagnostic test for exclusive use; you
cannot use that port for any other purpose during testing.
Before starting the WINDIAG program, place any critical processes the
ControlWave I/O expansion rack is handling under manual control. You
cannot run WINDIAG while the ControlWave I/O rack is controlling
I/O. Set the CPU modules switches SW1-3 and SW1-8 to OFF, and
perform the following steps:
1. Start the NetView program in OpenBSI with your current
network NETDEF file. A menu displays (similar to the one in
Figure 5-20):
Select Start >Programs > OpenBSI Tools >Common Tools >
2.
Diagnostics. The Main Diagnostics menu (Figure 5-21)
displays.
Service & Troubleshooting
Figure 5-20. NetView
5-27
