Calibration Pro User Manual
7，Measurement range, the default display is 0- the current maximum gamma value,
which can be modified manually.
8，Measuring step, setting measuring step.
9，Measure according to the gamma meter, and use the current screen reference
gamma meter to measure.
10， Custom gamma table. After loading the custom gamma table successfully, a green
check mark will be displayed on the right.
11，Number of measurements, the number of times required for each gamma
measurement.
12，File saving path, select the location where the measurement data will be saved
after the measurement is completed.

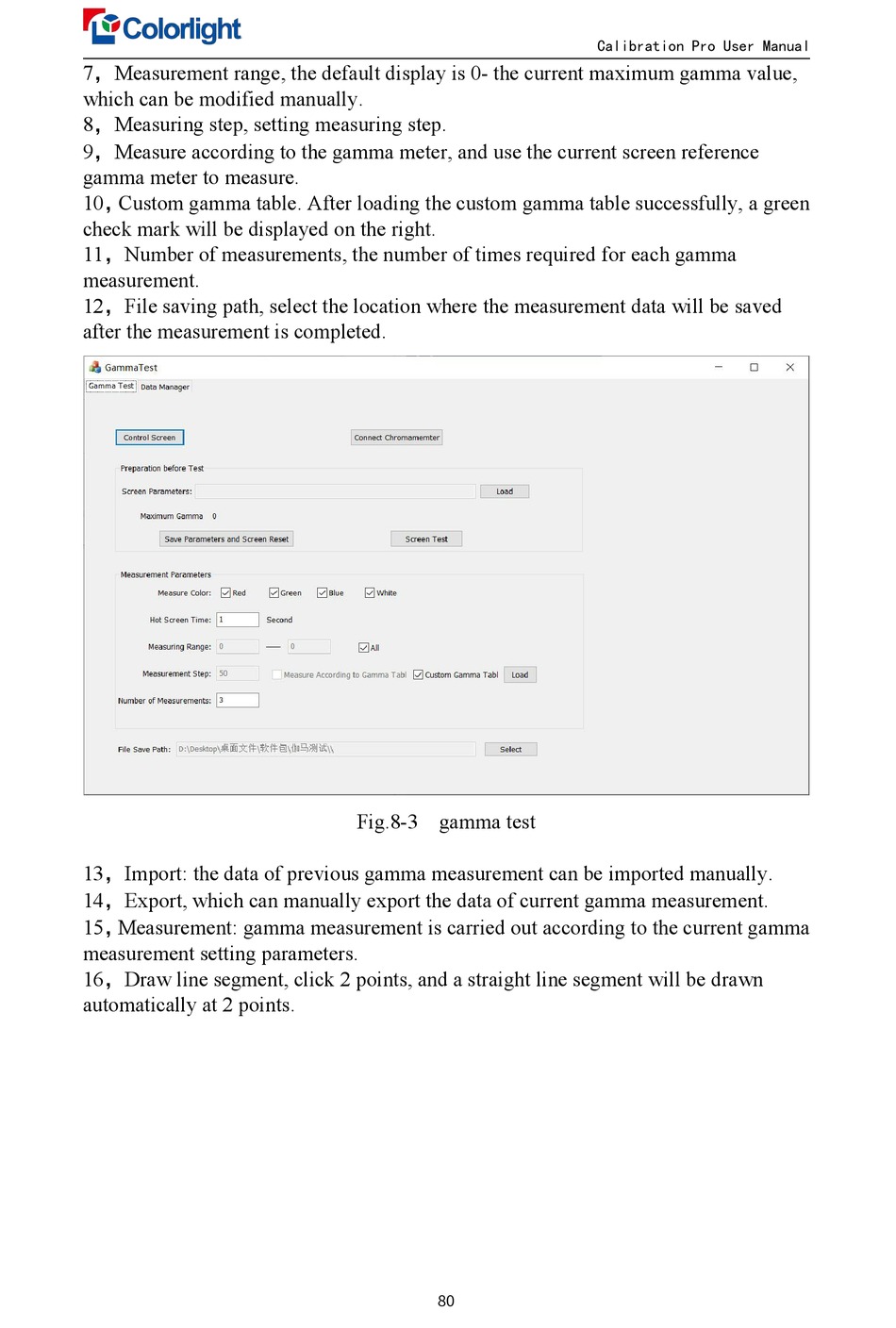

Fig.8-3 gamma test
13，Import: the data of previous gamma measurement can be imported manually.
14，Export, which can manually export the data of current gamma measurement.
15， Measurement: gamma measurement is carried out according to the current gamma
measurement setting parameters.
16，Draw line segment, click 2 points, and a straight line segment will be drawn
automatically at 2 points.
