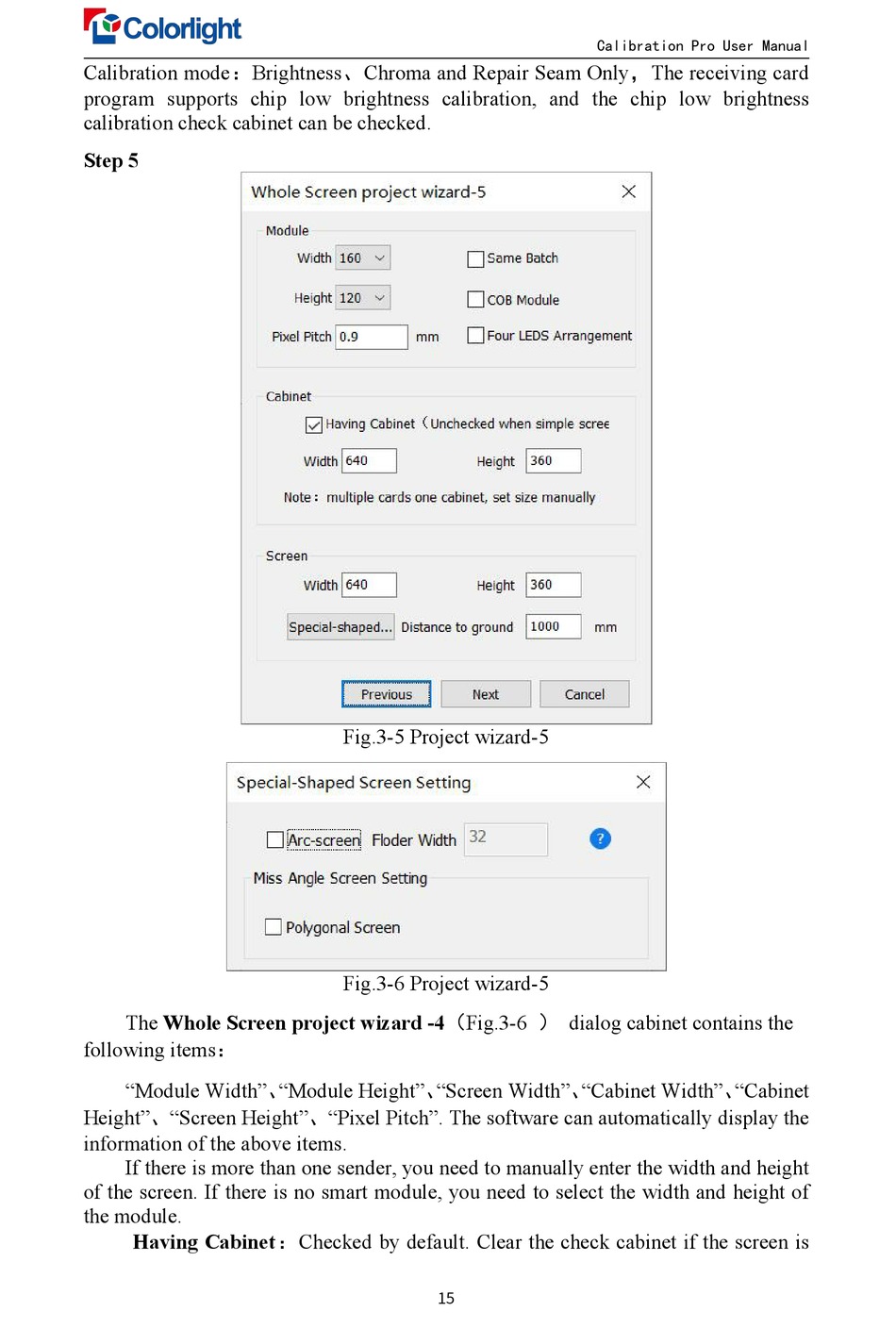

Colorlight Calibration Pro User Manual page 21

Calibration mode：Brightness、Chroma and Repair Seam Only，The receiving card
program supports chip low brightness calibration, and the chip low brightness
calibration check cabinet can be checked.
Step 5
The Whole Screen project wizard -4（Fig.3-6 ） dialog cabinet contains the
following items：
"Module Width"、 "Module Height"、 "Screen Width"、 "Cabinet Width"、 "Cabinet
Height"、"Screen Height"、"Pixel Pitch". The software can automatically display the
information of the above items.
If there is more than one sender, you need to manually enter the width and height
of the screen. If there is no smart module, you need to select the width and height of
the module.
Having Cabinet：Checked by default. Clear the check cabinet if the screen is
Fig.3-5 Project wizard-5
Fig.3-6 Project wizard-5
