by Generate Coefficient. This option is not checked by default.
3. Manual Mark: After generating lumi graphs, right click the worms or camera dust
area on the lumi graphs, choose option on the pop menu.
4. Introducing Pop Menu:
(1) Add Dirty: Take the mouse pint as the center and automatically select a
rectangular border with 20x20 pixel. Trag the border to cover the camera dust area
by mouse or use keyboard ↑ ↓←→.
(2) Add worms: Take the mouse pint as the center and automatically select a
rectangular border with 2 piexel width and module width as length. Default direction
by automatically calculation.
(3) Worms Dirction: Manual set the dirction of the worms.
(4) Hide/Show Mark Border: Hide or show all of the marked border.
(5) Delete: Delete the selected border.
(6) Clear All Mark: Clear all the marked border.

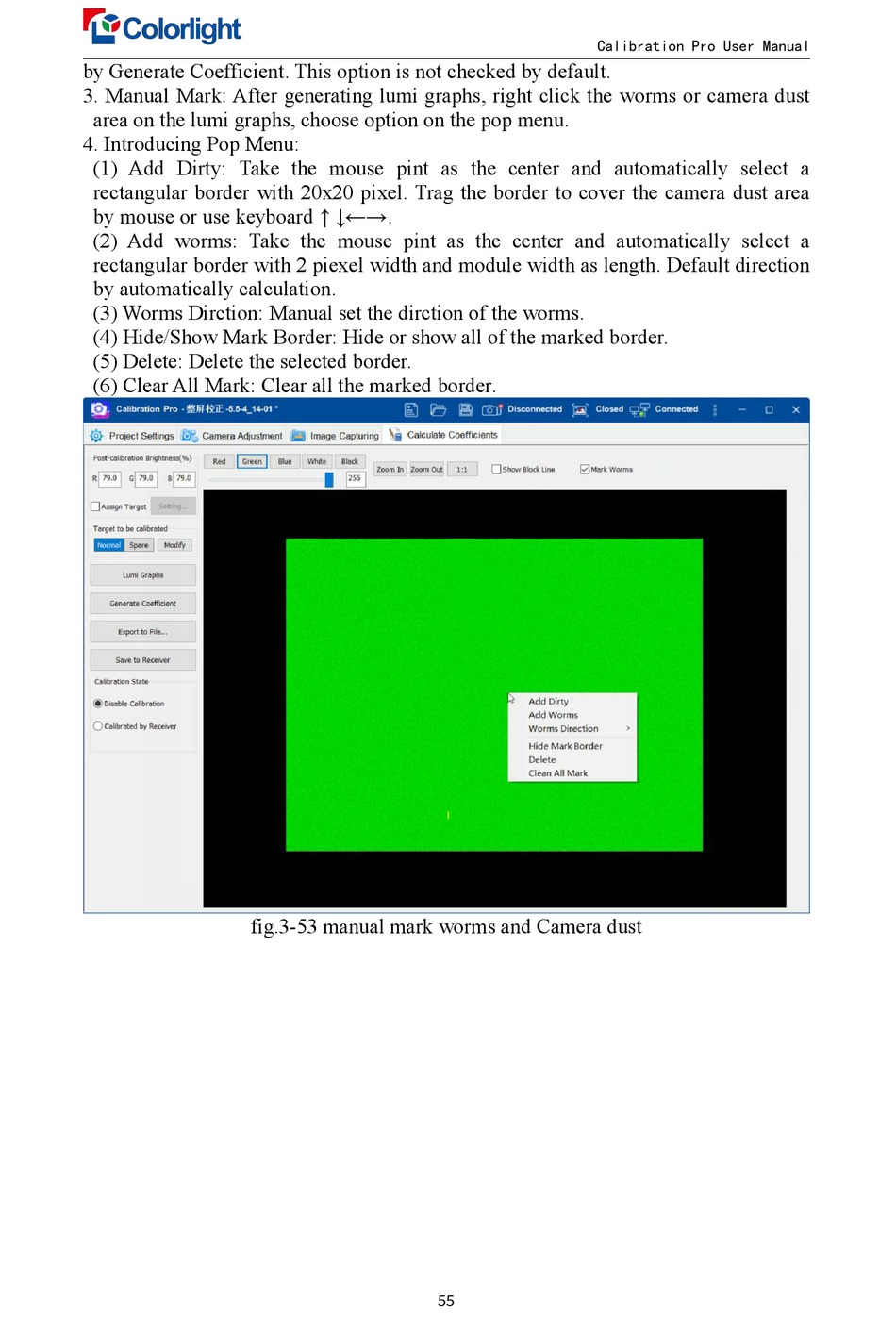

fig.3-53 manual mark worms and Camera dust
