8. Tools

8.1 coef Rotate Tools

You can rotate the cabinet or screen coefficient, which is clockwise by default
1，By Cabinet:Can carry out the cabinet or set the cabinet width and high resolution.
2，By screen:Can set the screen width and high resolution of the cabinet.
Rotation:90°、180°、270°.
3，coefficient before adjustment： The storage path of coefficients before adjustment
can be selected by cabinet.
4，coefficient after adjustment：The storage path of the adjusted coefficient can be
selected by cabinet.

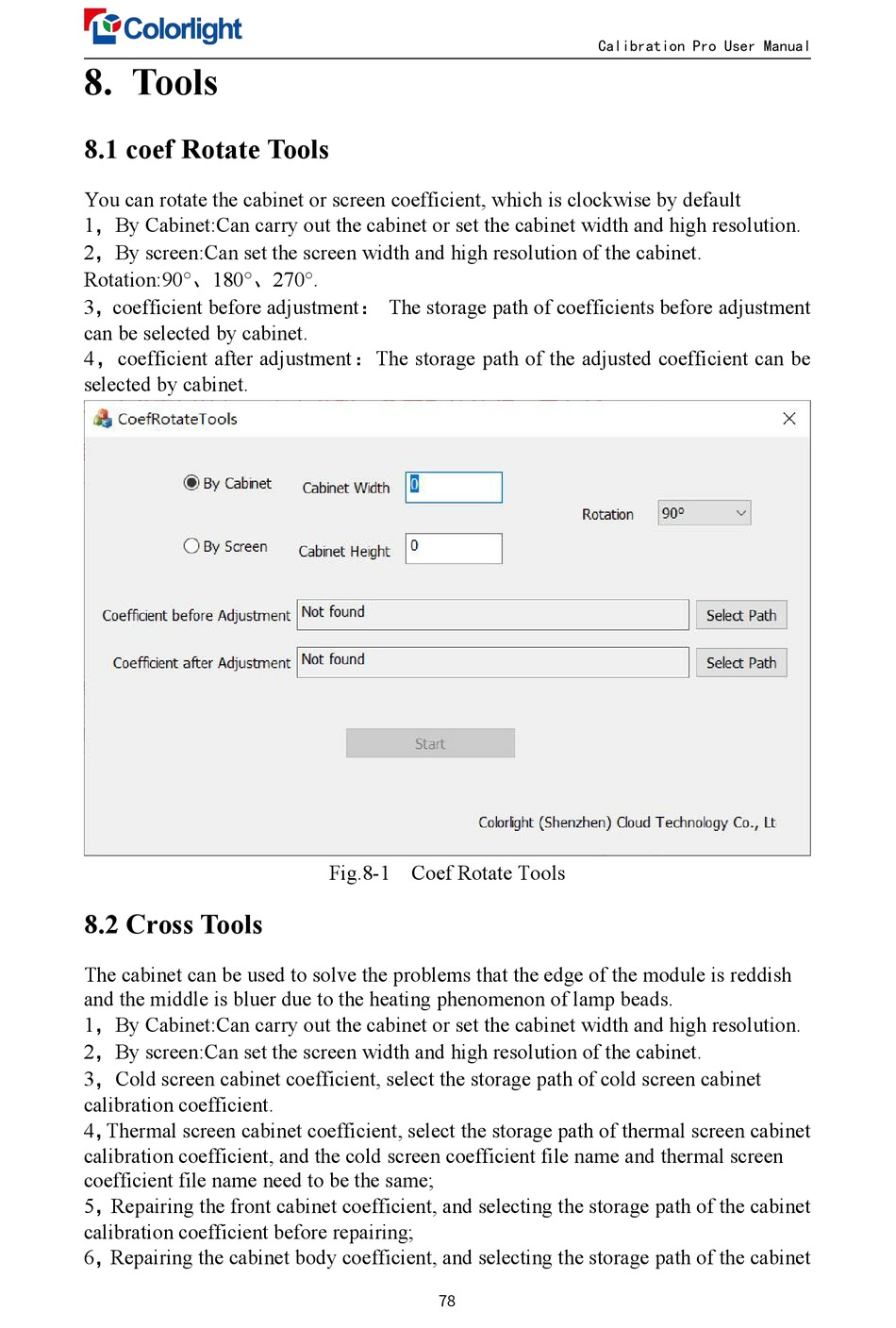

Fig.8-1 Coef Rotate Tools

8.2 Cross Tools

The cabinet can be used to solve the problems that the edge of the module is reddish
and the middle is bluer due to the heating phenomenon of lamp beads.
1，By Cabinet:Can carry out the cabinet or set the cabinet width and high resolution.
2，By screen:Can set the screen width and high resolution of the cabinet.
3，Cold screen cabinet coefficient, select the storage path of cold screen cabinet
calibration coefficient.
4， Thermal screen cabinet coefficient, select the storage path of thermal screen cabinet
calibration coefficient, and the cold screen coefficient file name and thermal screen
coefficient file name need to be the same;
5，Repairing the front cabinet coefficient, and selecting the storage path of the cabinet
calibration coefficient before repairing;
6， Repairing the cabinet body coefficient, and selecting the storage path of the cabinet
