Calibration Pro User Manual

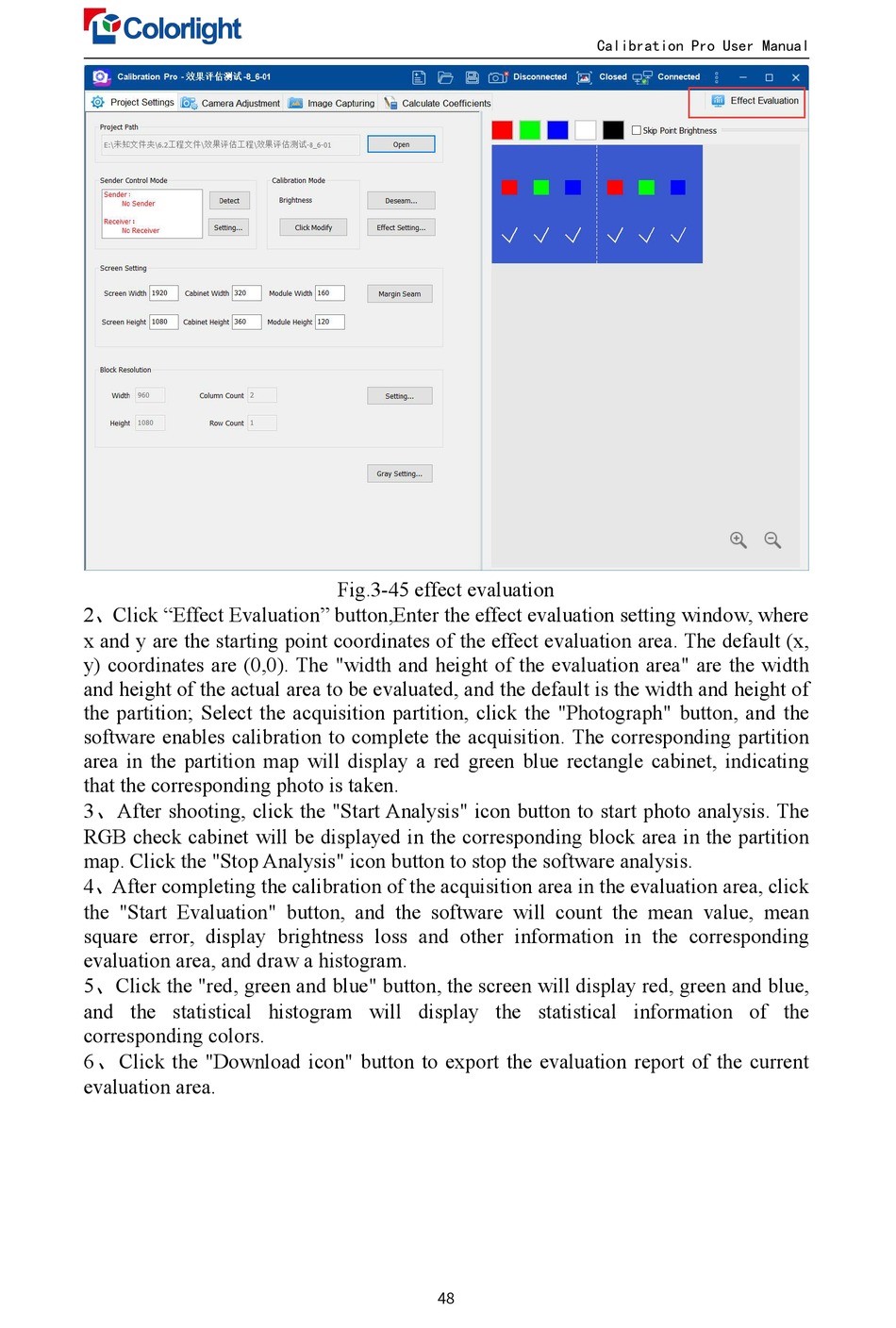

Fig.3-45 effect evaluation
2、Click "Effect Evaluation" button,Enter the effect evaluation setting window, where
x and y are the starting point coordinates of the effect evaluation area. The default (x,
y) coordinates are (0,0). The "width and height of the evaluation area" are the width
and height of the actual area to be evaluated, and the default is the width and height of
the partition; Select the acquisition partition, click the "Photograph" button, and the
software enables calibration to complete the acquisition. The corresponding partition
area in the partition map will display a red green blue rectangle cabinet, indicating
that the corresponding photo is taken.
3、After shooting, click the "Start Analysis" icon button to start photo analysis. The
RGB check cabinet will be displayed in the corresponding block area in the partition
map. Click the "Stop Analysis" icon button to stop the software analysis.
4、After completing the calibration of the acquisition area in the evaluation area, click
the "Start Evaluation" button, and the software will count the mean value, mean
square error, display brightness loss and other information in the corresponding
evaluation area, and draw a histogram.
5、Click the "red, green and blue" button, the screen will display red, green and blue,
and the statistical histogram will display the statistical information of the
corresponding colors.
6、 Click the "Download icon" button to export the evaluation report of the current
evaluation area.
