the acquisition grayscale setting is displayed;
a.Color calibration:Showing the collection setting of highlight gray scale,
"Highlight Collection": displaying the collection gray scale 233 and the collection
gray scale 217, with the collection gray scale 217 checked by default, which can be
unchecked only for low-highlight calibration.
b.Bright calibration:Display high and low brightness gray scale acquisition, "Low
brightness gray scale": 1, 2 and 3 gray scales are checked by default, and the check of
"Low brightness gray scale" can be canceled when only highlighting calibration is
performed. As shown in Figure 3-24.
c.Chip Low Brightness Calibration
Ⅰ.Single graysacle iterative capture calibration:

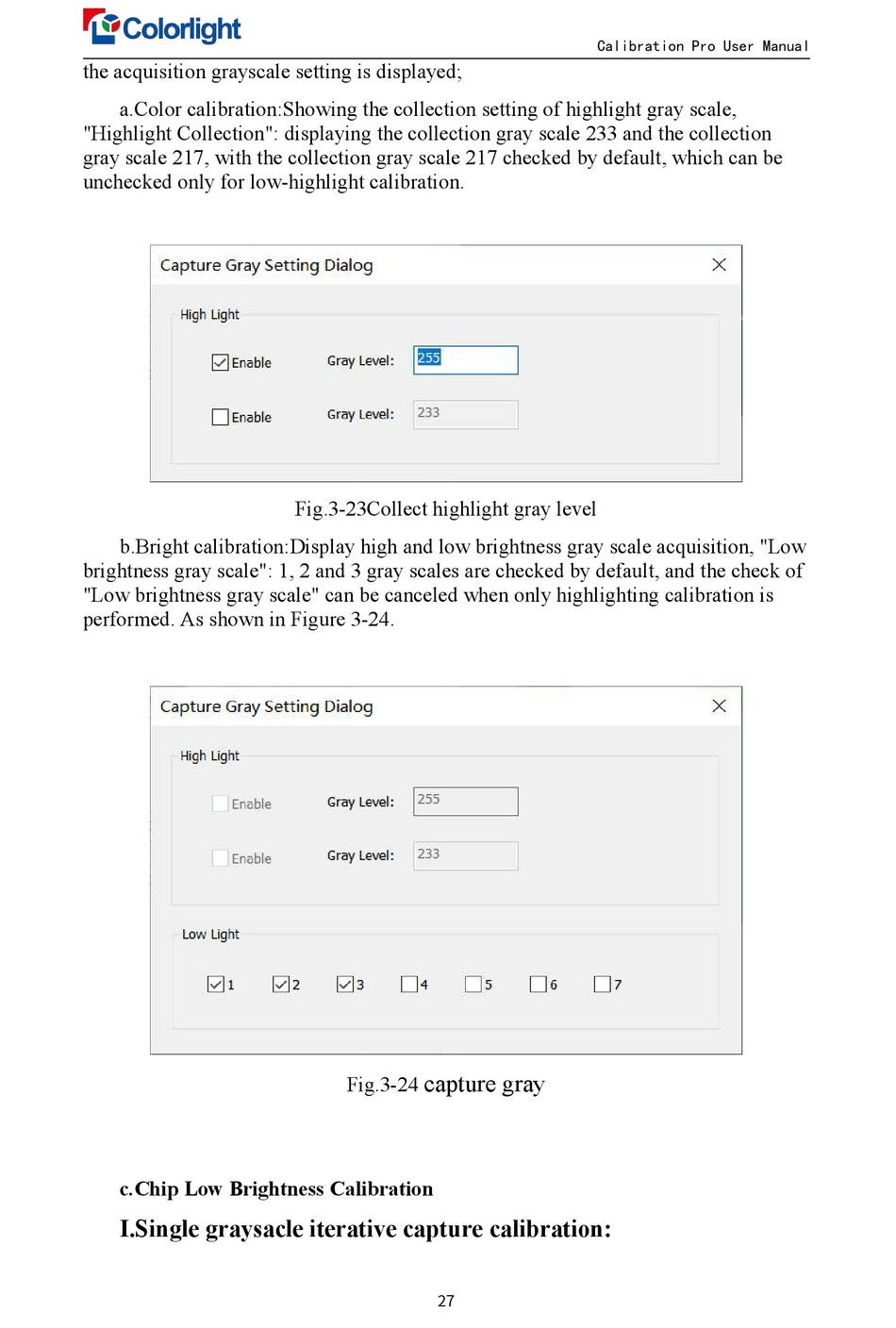

Fig.3-23Collect highlight gray level
capture gray
Fig.3-24
