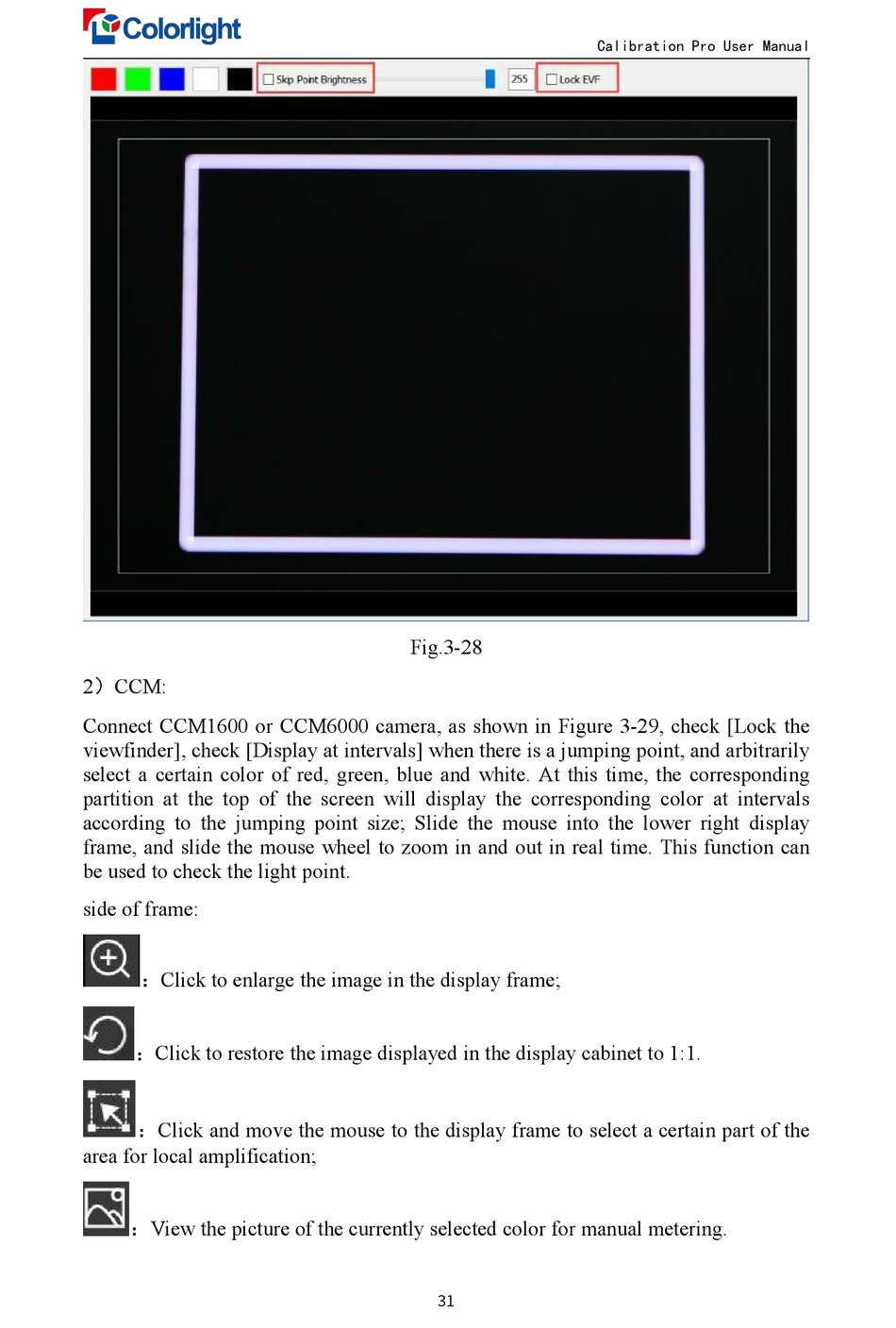

Fig.3-28
2）CCM:
Connect CCM1600 or CCM6000 camera, as shown in Figure 3-29, check [Lock the
viewfinder], check [Display at intervals] when there is a jumping point, and arbitrarily
select a certain color of red, green, blue and white. At this time, the corresponding
partition at the top of the screen will display the corresponding color at intervals
according to the jumping point size; Slide the mouse into the lower right display
frame, and slide the mouse wheel to zoom in and out in real time. This function can
be used to check the light point.
side of frame:
：Click to enlarge the image in the display frame;
：Click to restore the image displayed in the display cabinet to 1:1.
：Click and move the mouse to the display frame to select a certain part of the
area for local amplification;
：View the picture of the currently selected color for manual metering.
