Calibration Pro User Manual
e)
Color temperature：
If you need to change the color temperature, you can uncheck [white] of [ Auto
Calculate ], then input the target color temperature, built-in algorithms will
automatically calculate the color coordinates.
f)Approx value:
when the target color gamut over the original color gamut, you can click [Approx
value], algorithms will automatically calculate and limit the exceeded part in the
nearest original color gamut.
7.3.2 CCM calibration
1. Complete the partition photo collection and analysis, and the software
automatically recommends the target color gamut after generating the brightness map.
2.white first ：The initial default value is 100. Pull the roller bar or enter a specific
value to set the corrected white uniformity intensity. The larger the value, the better
the white uniformity.
3.Color block intensity: the initial default value of R, G and B is 1.1. Pull the roller
bar or enter a specific value to set the color block intensity of the screen before
calibration.
4.Complementary color intensity: the initial default value of R, G and B is 100. Pull
the roller bar or enter a specific value to set the complementary color intensity;
Note: After the color gamut is set, click "Generate Brightness Map" again before it
can be applied to the brightness map.

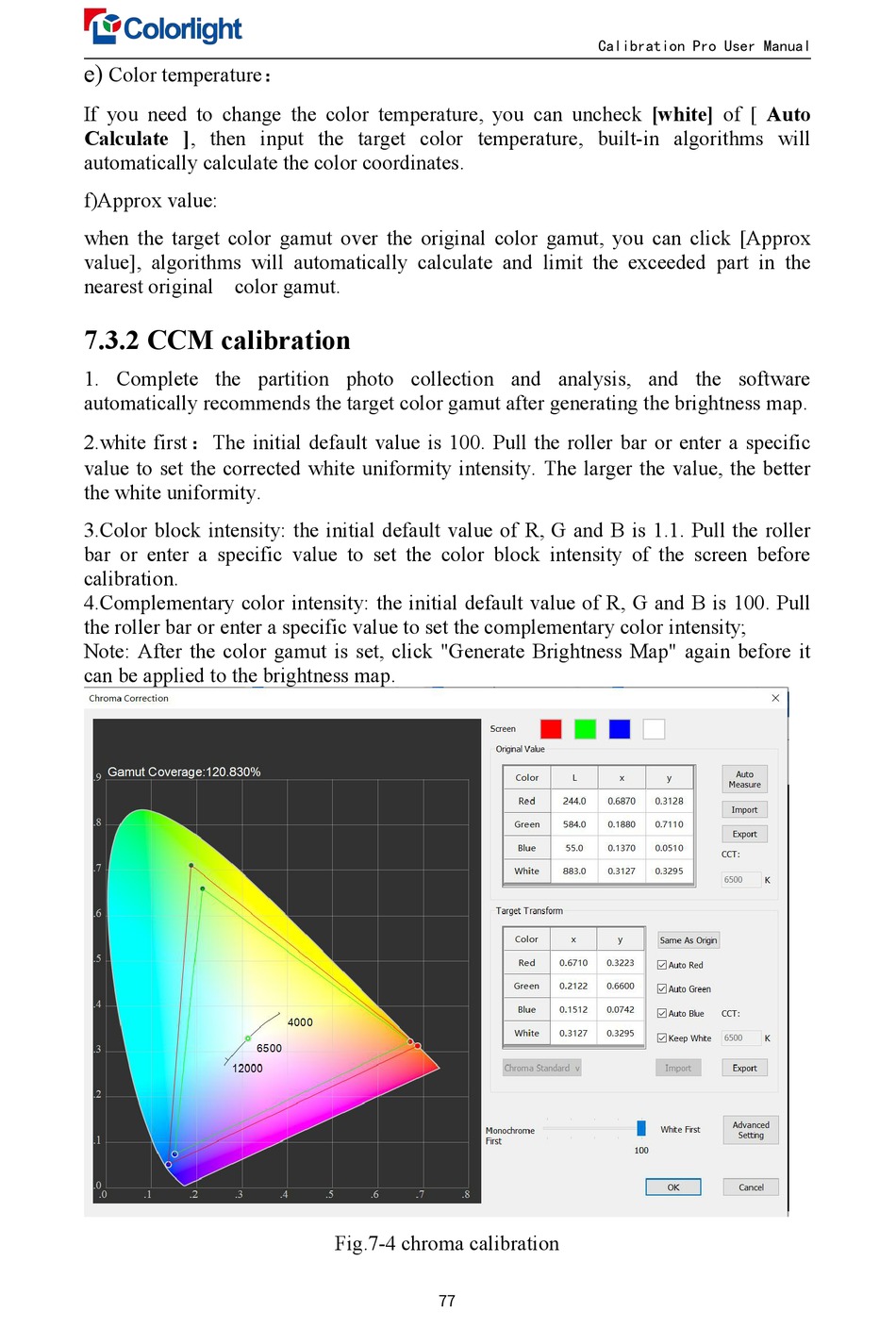

Fig.7-4 chroma calibration
77
