8. After saving the coefficient to receiver, click [ Calibration by Receiver Card ]
to enable calibration. (please make sure all the receiver cards have been detected
before saving);When the receiving card supports low-gray calibration, the check
cabinet "Enable low-light calibration" is displayed in the calibration situation; The
receiving card does not support low-gray calibration. Click Save Coefficient to the
receiving card, and a prompt pops up: "This receiving card does not support high-low
brightness calibration!" .
9. After generating integrated coefficient, left click [ Export to File ] and select
[ Export All ] to export coefficient into file .3fcoef or .9fcoef file.
a. [ Export All ]: Export screen coefficient by calibration mode；
b. [ Export by Sender]: Export each sender`s coefficient by choosen [ Name By
Coordinate ] or [ Name By Row and Column ] or [ Name By Index ]；
c. [ Export By Block ]: Export screen coefficient by split block size；

3.10.3 Eliminate Camera Dust And Worms

1. Eliminate Camera Dust: Choosen [ Eliminate Camera Dust Effect ] in [ Effect
Setting ] as page 7.1 shown, click [ Lumi Graphs ] in [ Calculate Coefficients ], the
software will automatically identify the camera dust and eliminate it. This option is
checked by default.
2. Eliminate Worms: Choosen [ Mark Worms ] in [ Calculate Coefficients ], the
software will automatically identify the worms and mark it, and emilinate the worms

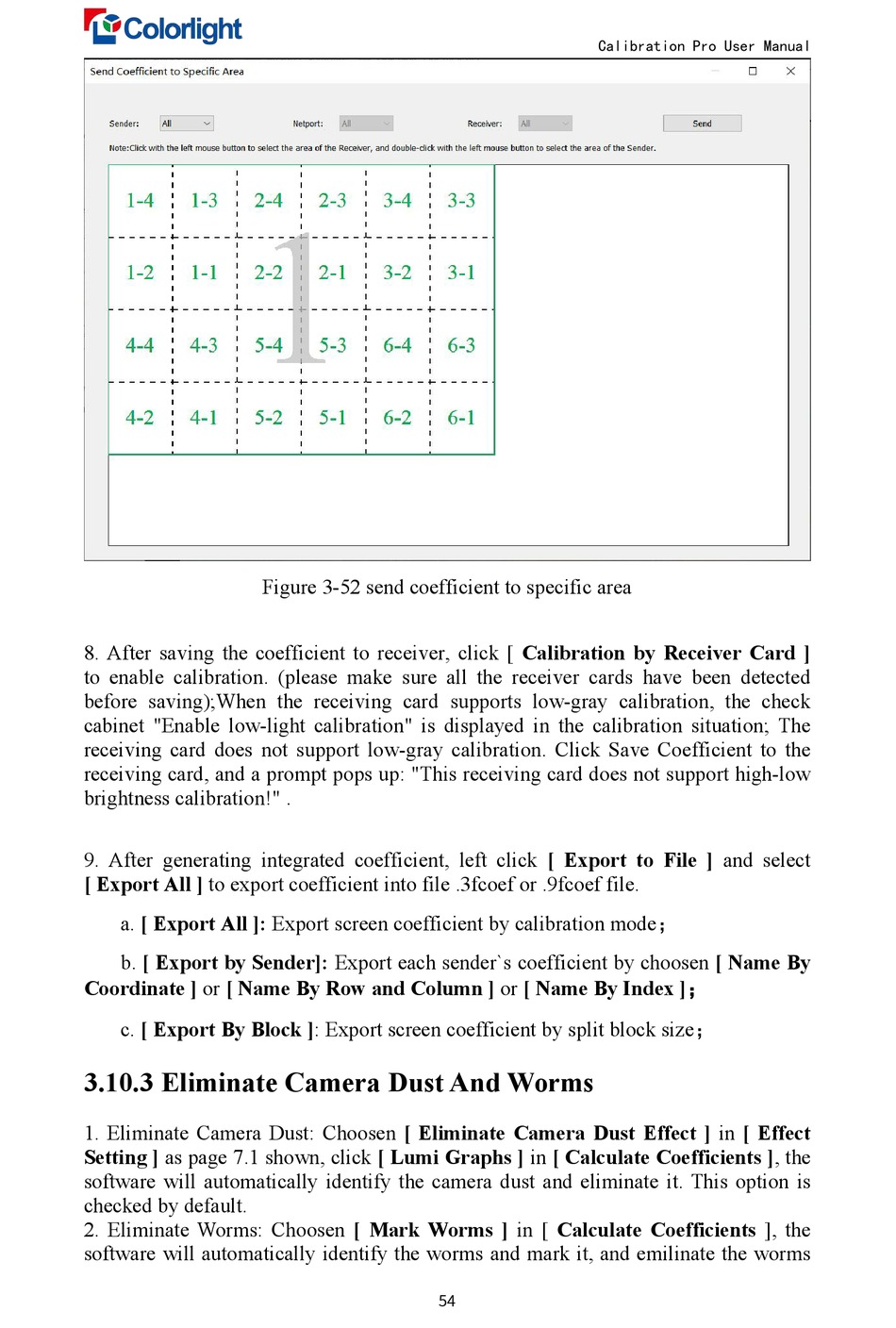

Figure 3-52 send coefficient to specific area
